Aluminium Drill Guide

Regular price £125.00
Regular price £0.00Sale price £125.00
In Stock for delivery by
Order within
Drill precise, accurate holes anywhere, and at any angle, between +/- 60°. The precision machined headstock glides smoothly back and forth on two linear bearings with zero play.
  • Shop with confidence with our 3 Year Warranty
  • Rated excellent by Trustpilot based on 30,149 reviews
  • Over 2.5 million Rutlands® premium woodworking tools sold worldwide
Aluminium Drill Guide
Regular price £125.00
Regular price £0.00Sale price £125.00
KEY FEATURES
  • 3 Year Warranty
  • Drill accurate holes anywhere and at any angle between +/- 60°
  • No-mar, non slip base protects the workpiece whilst staying put
  • Steel linear bearings glide smoothly back and forth with zero play
  • V groove design allows the drilling of round stock
  • Takes larger diameter drill bits, such as sawtooth and forstner bits, up to 65mm
FULL DESCRIPTION

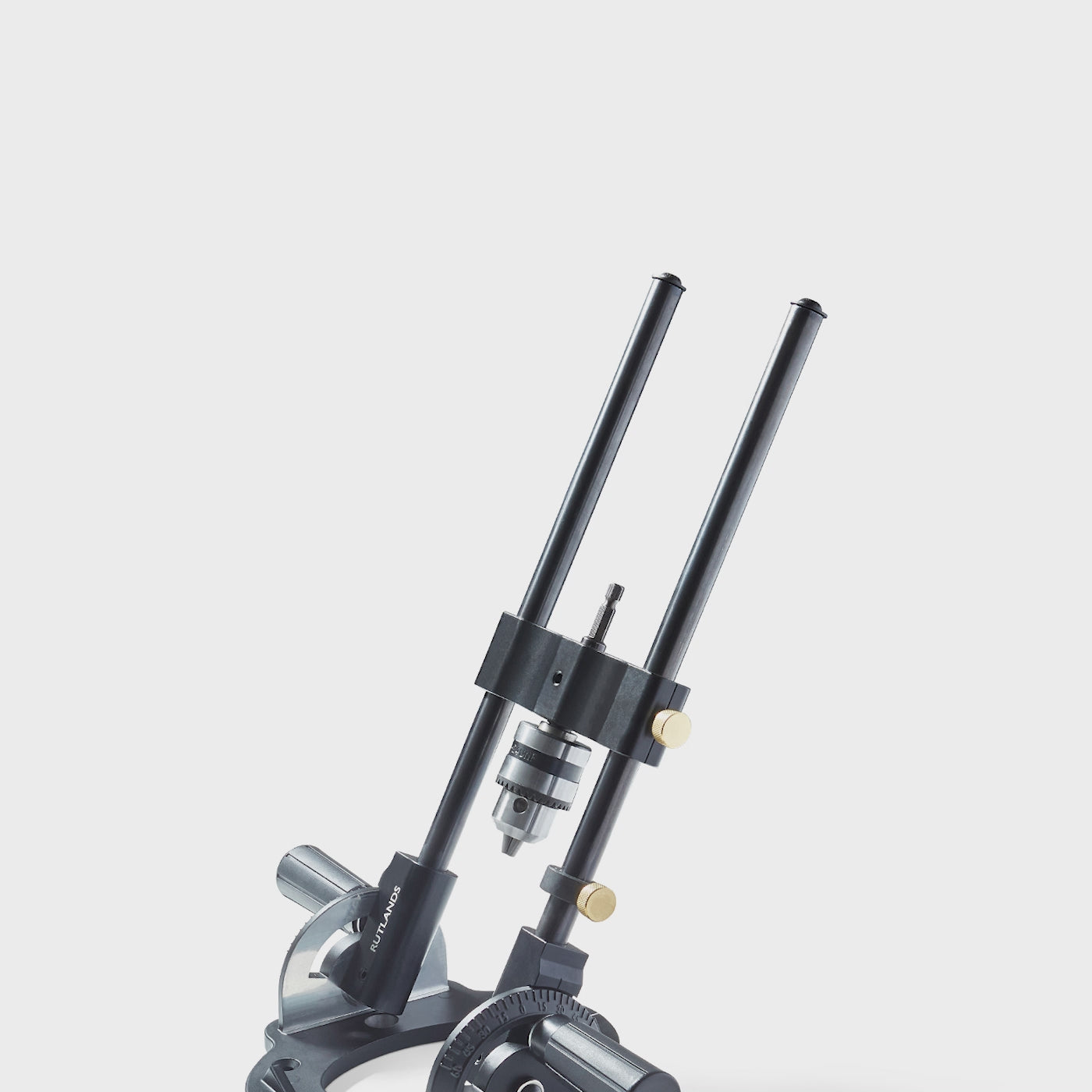

This aluminium angle drill guide offers ultra-smooth movement, is extremely precise and is free of play. It is a highly versatile and portable drill press that allows you to drill accurate holes anywhere and at any angle between +/- 60°. The sliding headstock is precision machined from aluminium and features two, 35mm long, linear bearings made from a hardened tool steel that allows the headstock to glide smoothly back and forth on the 300mm steel guide rods, without side movement.

A knurled brass knob locks the depth stop in position for drilling repetitive and precise depths, with a maximum travel of 240mm. The three jaw, 10mm geared chuck rotates on two sealed for life roller bearings to protect from dust ingress and features a 1/4" hex drive shaft for use with mains and cordless power drills. The cast aluminium base has a precision machined underside which is fitted with a no-mar polymer pad to prevent the surface of the workpiece from damage and to ensure a high friction, non slip base. The base has a large footprint of 170mm x 150mm to guarantee a stable, perfectly flat platform and features 4 mounting holes and a V notch for drilling round stock. The base has a wide aperture to accept drill bits up to 65mm, making the guide ideal for use with large diameter drill bits such as saw tooth and forstner bits.

Quadrants on each side of the base allow for the drilling angle to be accurately and securely set between +/-60° by rotating the two hand grips, and can be locked off at 90° for drilling perfectly perpendicular holes. The two main guide rods can be positioned to sit 25mm below the level of the base to allow for self-centering drilling when fitting a mortice lock into a door.

This is an exceptional well made drill guide with zero play, that will allow for the drilling of precise holes, at precise angles and to precise depths. ©
SPECIFICATIONS
  • BrandRutlands®
  • Product CodeR4131
  • Chuck Capacity1.5mm to 10mm
  • Drilling Angles0 - 60°
  • Drill Chuck Travel240mm
  • Distance Between Bars80mm
  • Chuck Tip to Base Underside265mm
  • Aperture100mm x 65mm
  • Dimensions340mm x 170mm x 150mm
SHIPPING & PAYMENT

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

REVIEWS

Customer Reviews

Based on 25 reviews
88%
(22)
8%
(2)
4%
(1)
0%
(0)
0%
(0)
P
Paul H.
Does the job well

Needed to drill dowel holes on cabinet i am making to high accuracy. This did the job well, once i set depth stop and made a jig to stand in so the drill bit didn't pummel down into my workbench when placing it to the side. Very pleased with it.

N
Nigel P.
Perfect for drilling holes in wooden 5 bar gate

Having purchased this a few weeks ago, I am now in a position to review the actual performance. The workpiece was a 3 metre wooden five bar gate so the stile and cross timber needed to be drilled with a 19mm and 10mm brace bits and accuracy was important that the holes were parallel the chuck was changed to facilitate fitting the drill shanks. I clamped the drill guide and actually used a Bosch 240v drill which mounted fine. The finished holes aligned nicly my concern was the top hinge fitting which had three 10mm holes So for a project of this sized done the job with ease

A
Alan
Really good piece of kit

Robust and smooth operation. Just what I needed.
Just be aware that when it's in the lowest position the chuck is about 50mm from the workpiece so you may need longer drill bits, or hex-shank bits that can be used with an extension.
