Bench Cast Router Table

This bench cast router table with aluminium insert plate is compact in size without compromising on performance, delivering the same premium build quality and performance as its larger counterpart.

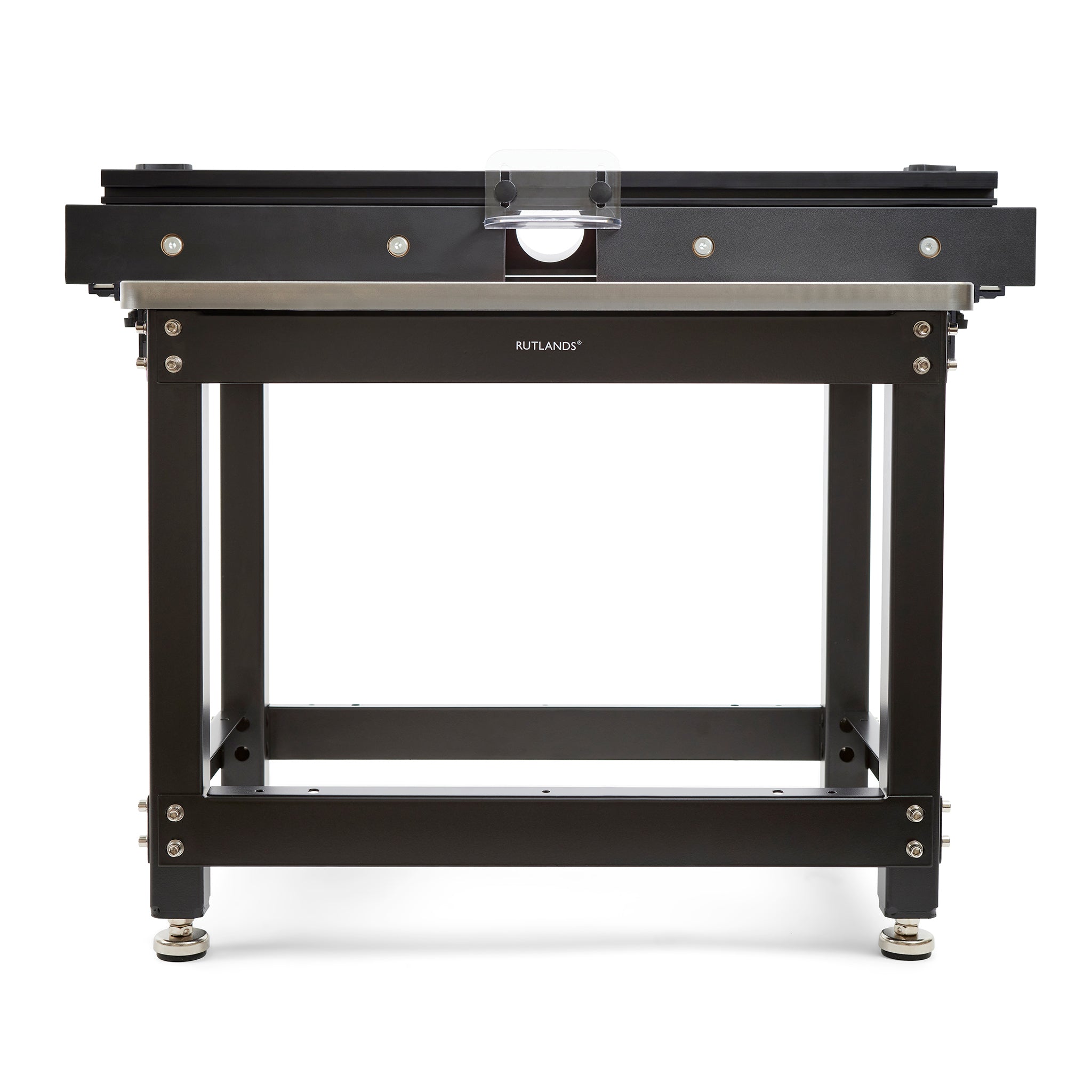

Router Table Stand
The legs and braces are engineered from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings. The feet have a large 40mm diameter footprint for optimum stability and have fine height adjustment for levelling on uneven workshop floors. Each foot is fitted with a heavy-duty rubber pad to offer excellent vibration dampening.

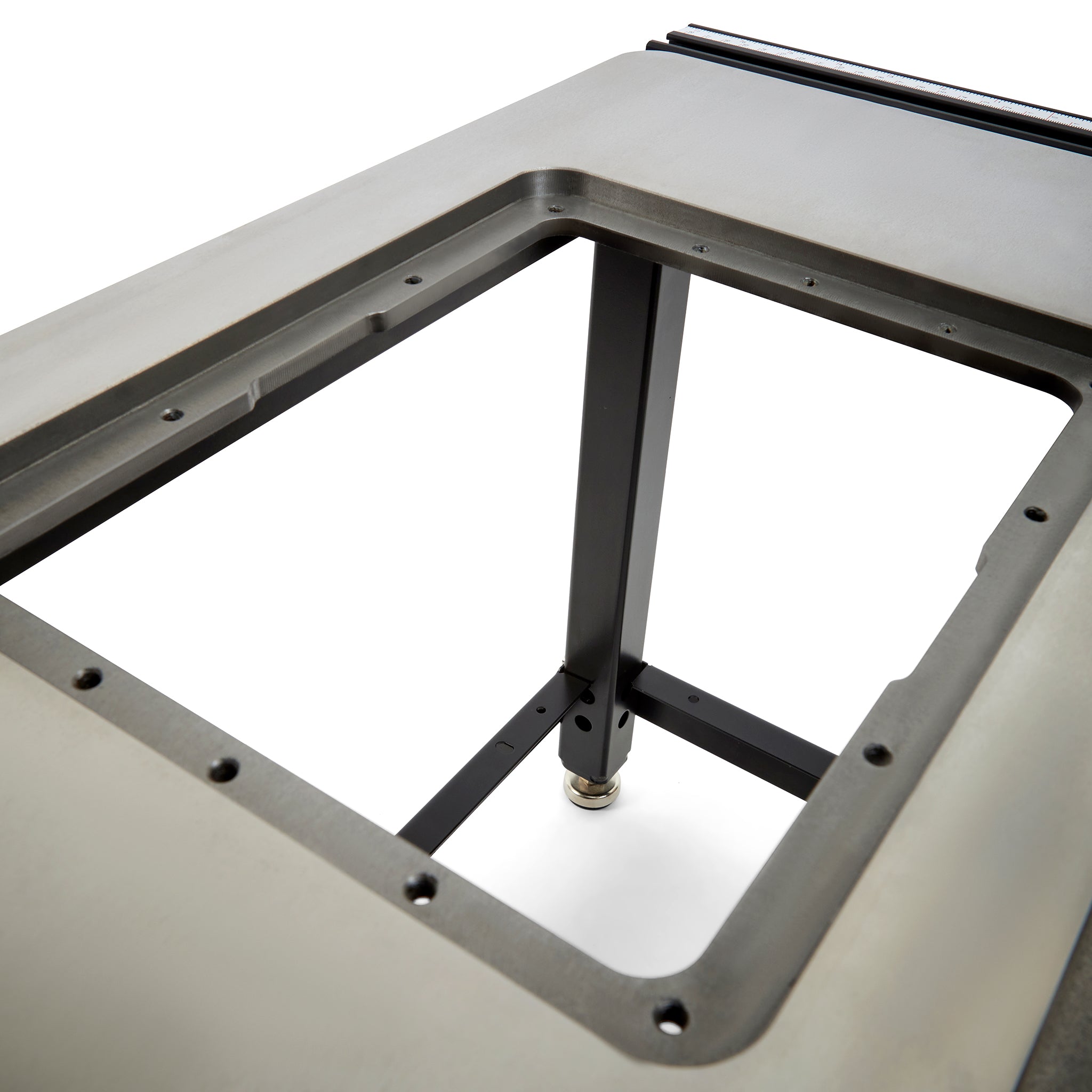

Cast Router Table Top
The 595mmm wide by 395mm deep substantial cast iron router table top has been designed to provide the most stable, exacting routing experience possible. Its solid, single piece design provides the mass to absorb and eliminate vibration whilst routing, ensuring the cleanest possible cuts and superior finish quality. Constructed from a solid piece of cast iron, each table top is left to settle and stabilise before undergoing a precision surface grinding process for flatness. Once machined, the top receives a final polish, leaving the smoothest possible friction-free work surface to pass material across. The underside of the table top has been carefully engineered with a network of ribbing and support points, designed to maximise strength and stress resistance. Machined into the surface is a double T track, including a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and home-made jigs.

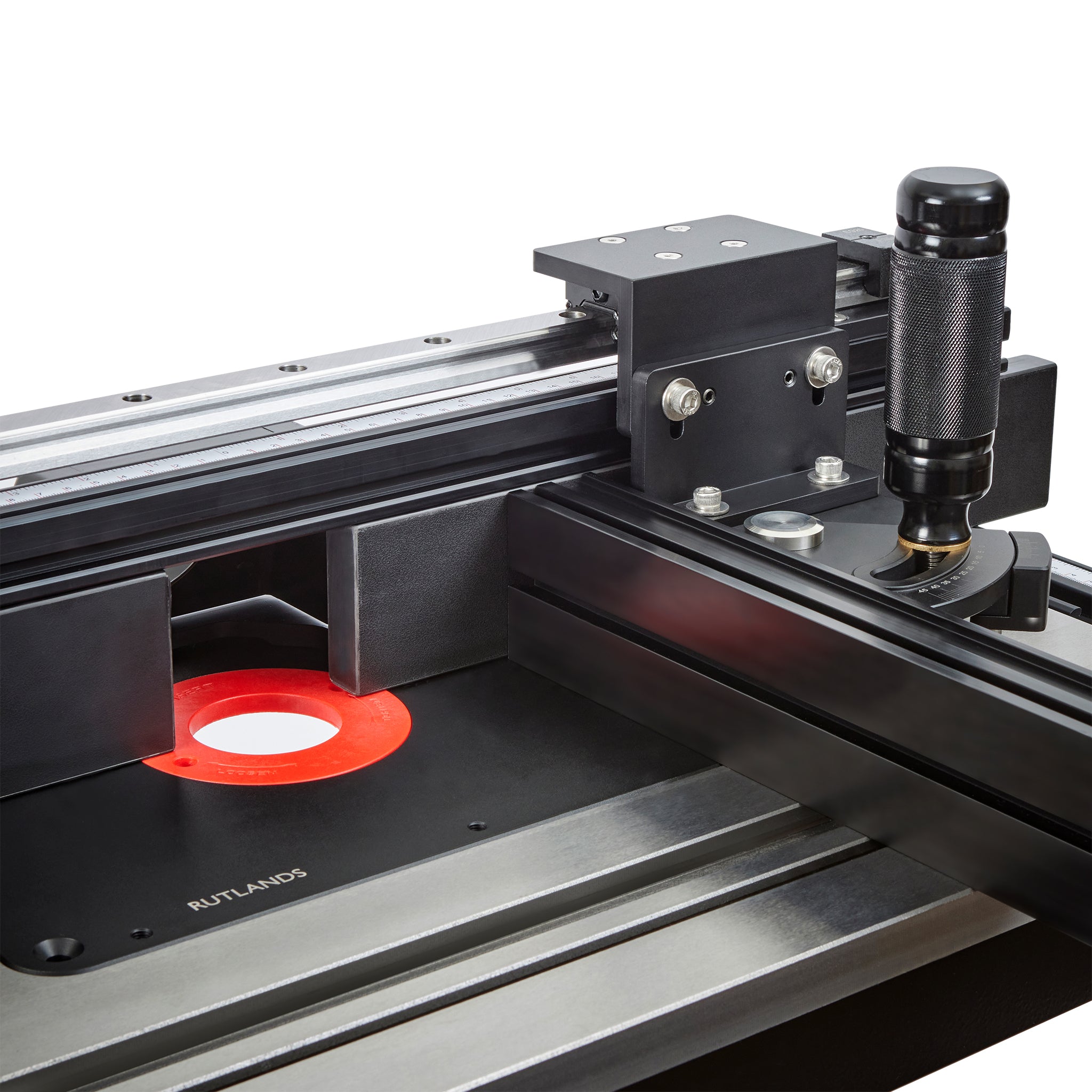

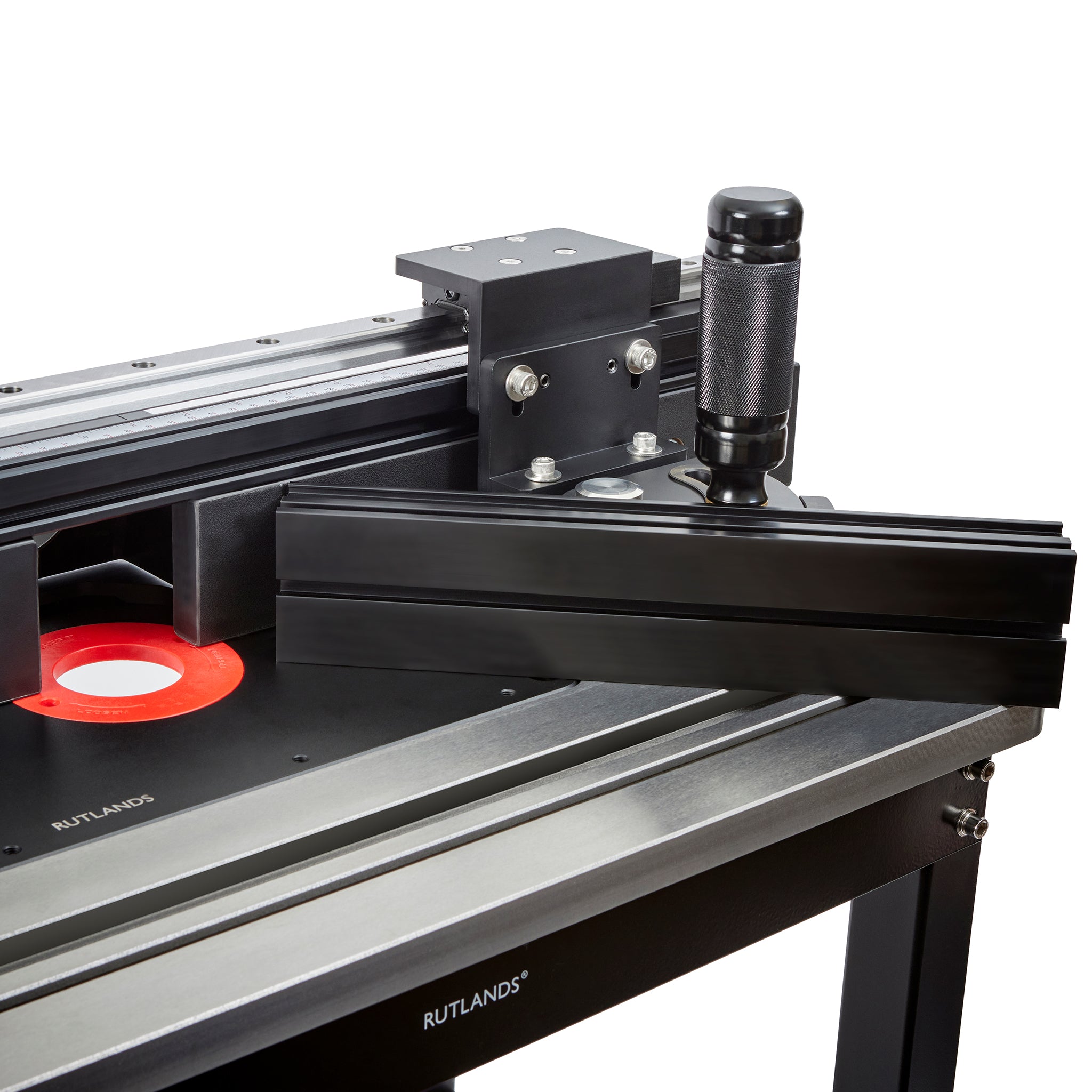

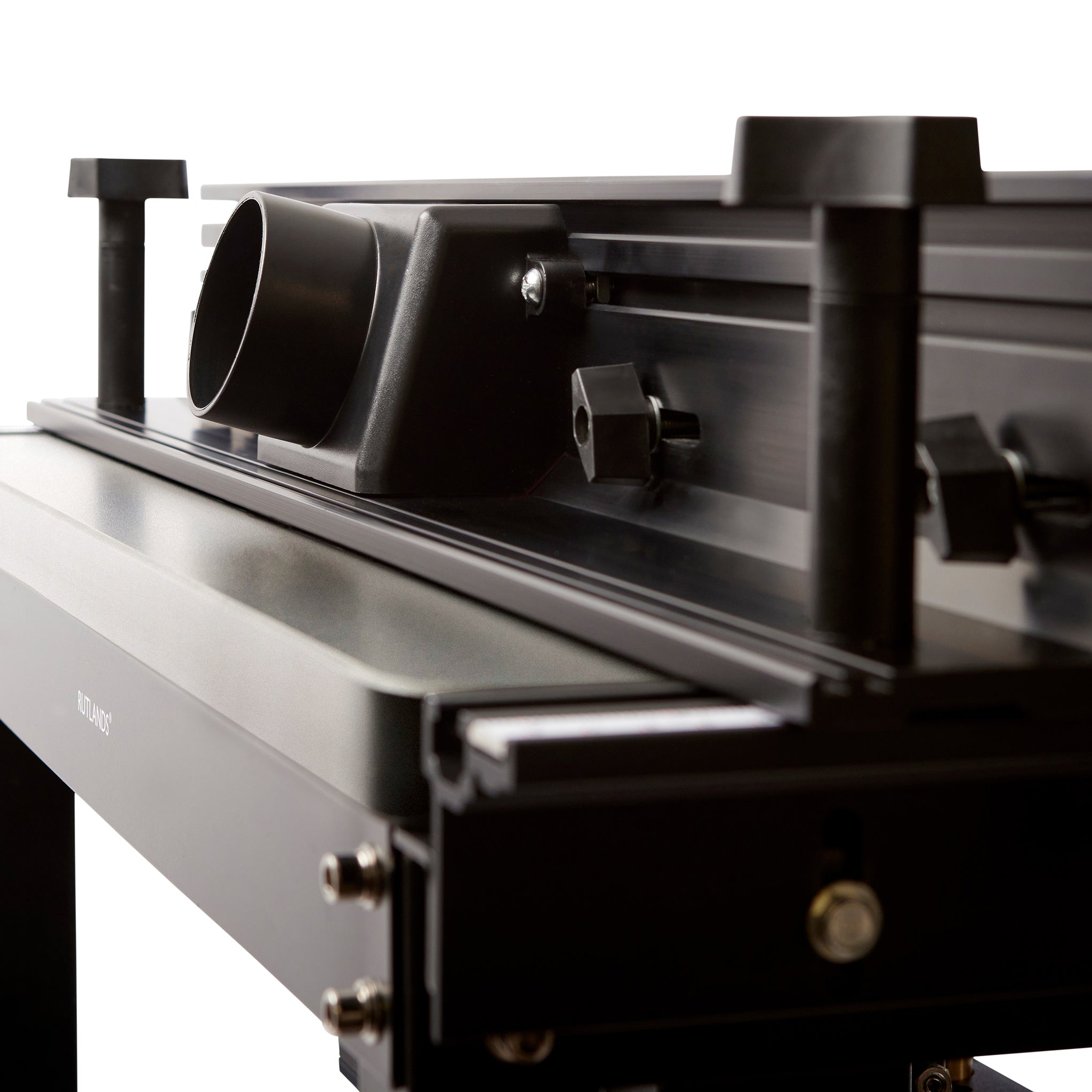

Router Table Fence
This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish. On the top face of the fence is a metric scale and an 8.3mm T track for use with flip stops, and on the front face there is another 8.3mm T track for mounting Rutlands® feather boards, roller guides and the height adjustable router bit guard. The two sub-fences are made from a solid composite with a low friction, phenolic laminate surface to ensure smooth movement of the workpiece. The fences can be adjusted, tool free, to accommodate any router bit up to 114mm in diameter and the outfeed sub-fence can be off-set to allow for edge planing. The two fence support brackets are mounted to each side of router table top, allowing the fence to be moved back and forth. An adjustable metric scale on the fence brackets allows you to precisely align, zero and set the position of the fence to the router bit.

Router Table Insert Plate
This router table insert plate is made from 10mm anodized aluminium and is extremely strong, perfectly flat and features an abrasion resistant finish. The plate is compatible with all plunge routers with a maximum base diameter of 200mm. An 90mm aperture accommodates large router bits, whilst the two polycarbonate click-fit insert rings of 50mm and 35mm are used with smaller diameter bits. To mount a router, you use the router's sub-base as a template to drill the plate, having positioned the set-up ring and centering pin to ensure your router is centrally mounted. A series of fine-thread adjustment screws allow you to level the plate perfectly flush with the table. The insert plate is supplied with a top mounted guide pin, featuring a free-spinning plastic barrel to enables free hand and pattern shape routing. ©

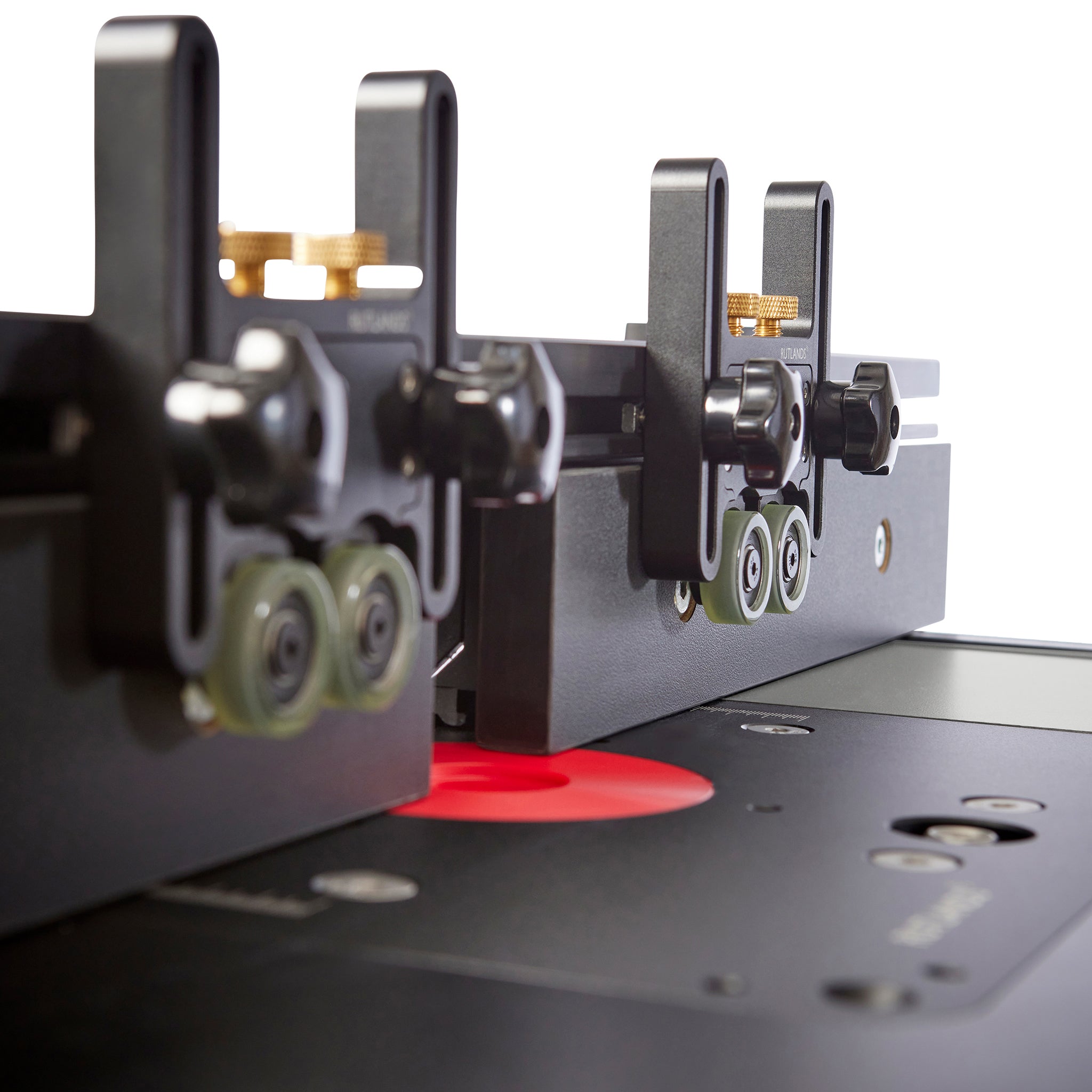

*Router table roller guides and sliding carriage are shown for illustrative purposes only and supplied separately.
