R15 Router Lift and Motor with Speed Control NVR Switch

This is a premium performance router lift and router motor package featuring the R5075 Router Lift and the R5269 Router Motor with Variable Speed Control NVR Switch.

Router Lift - R15

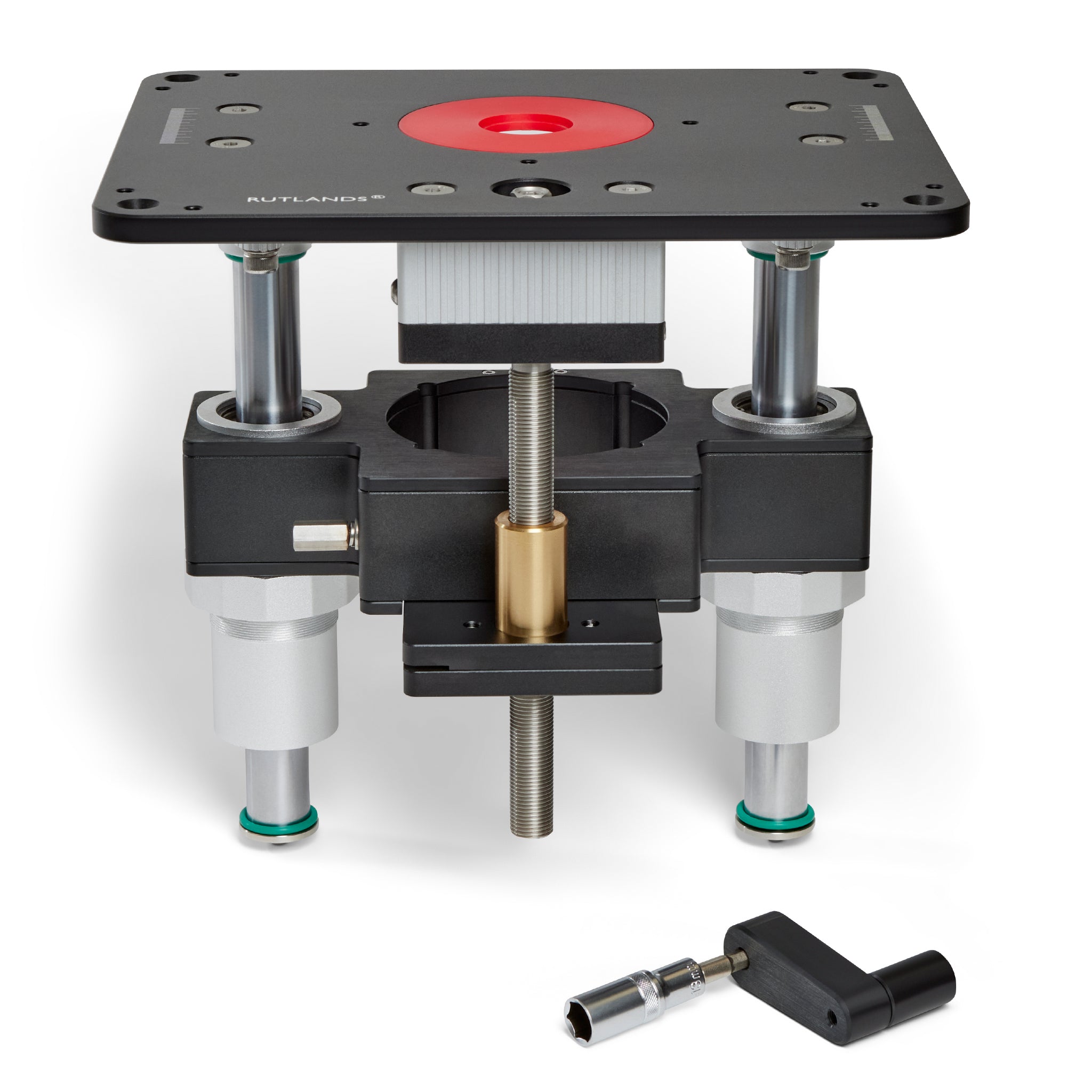

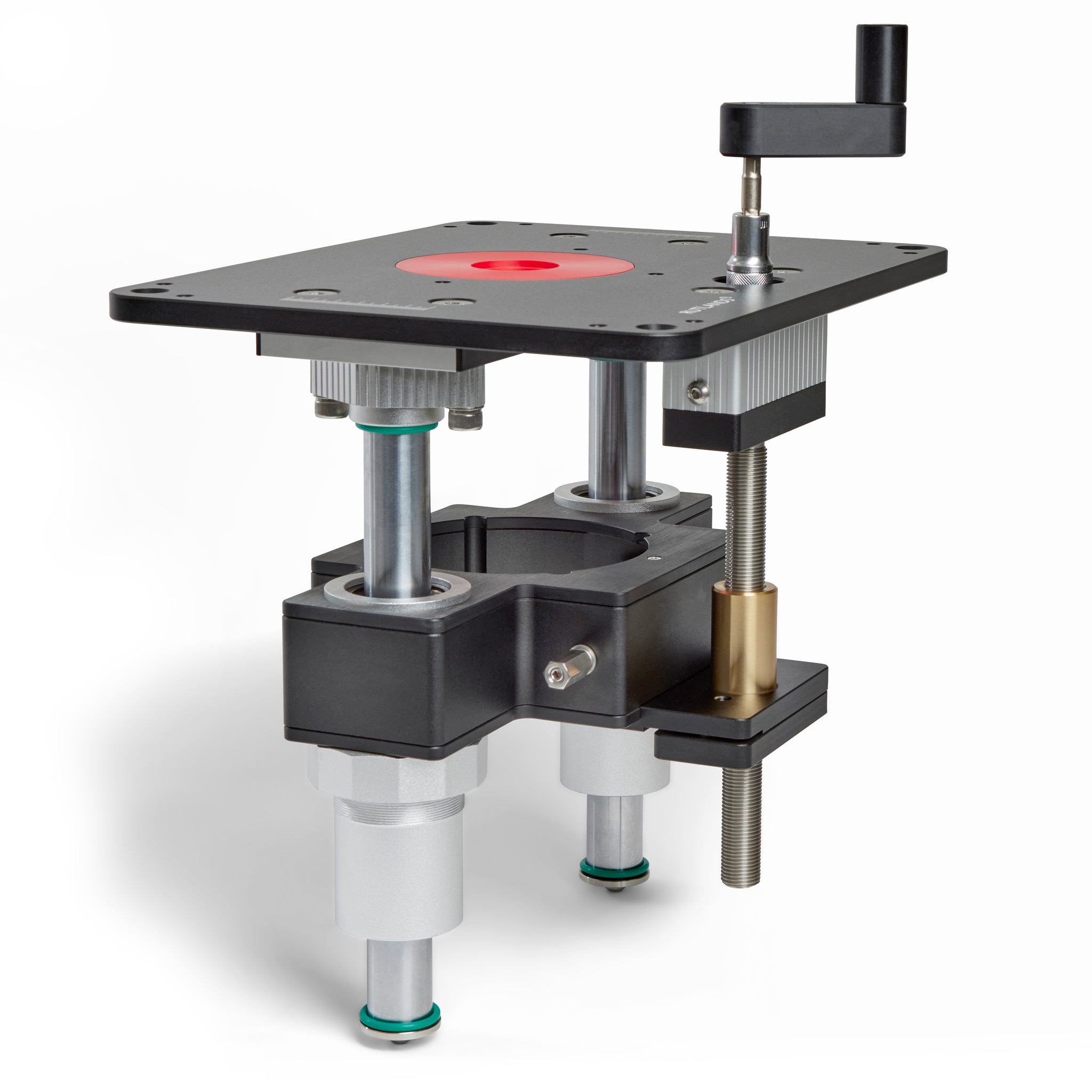

Built with premium quality materials to an exacting standard, the lift has been meticulously engineered to ensure precise, ultra smooth raising and lowering of the router bit. The height adjustment is controlled from above the table by inserting and rotating the removable crank handle, making adjustment fast, simple and extremely precise. The lift positions the router collet above the table surface when fully raised to allow for easy access and quick bit changes.

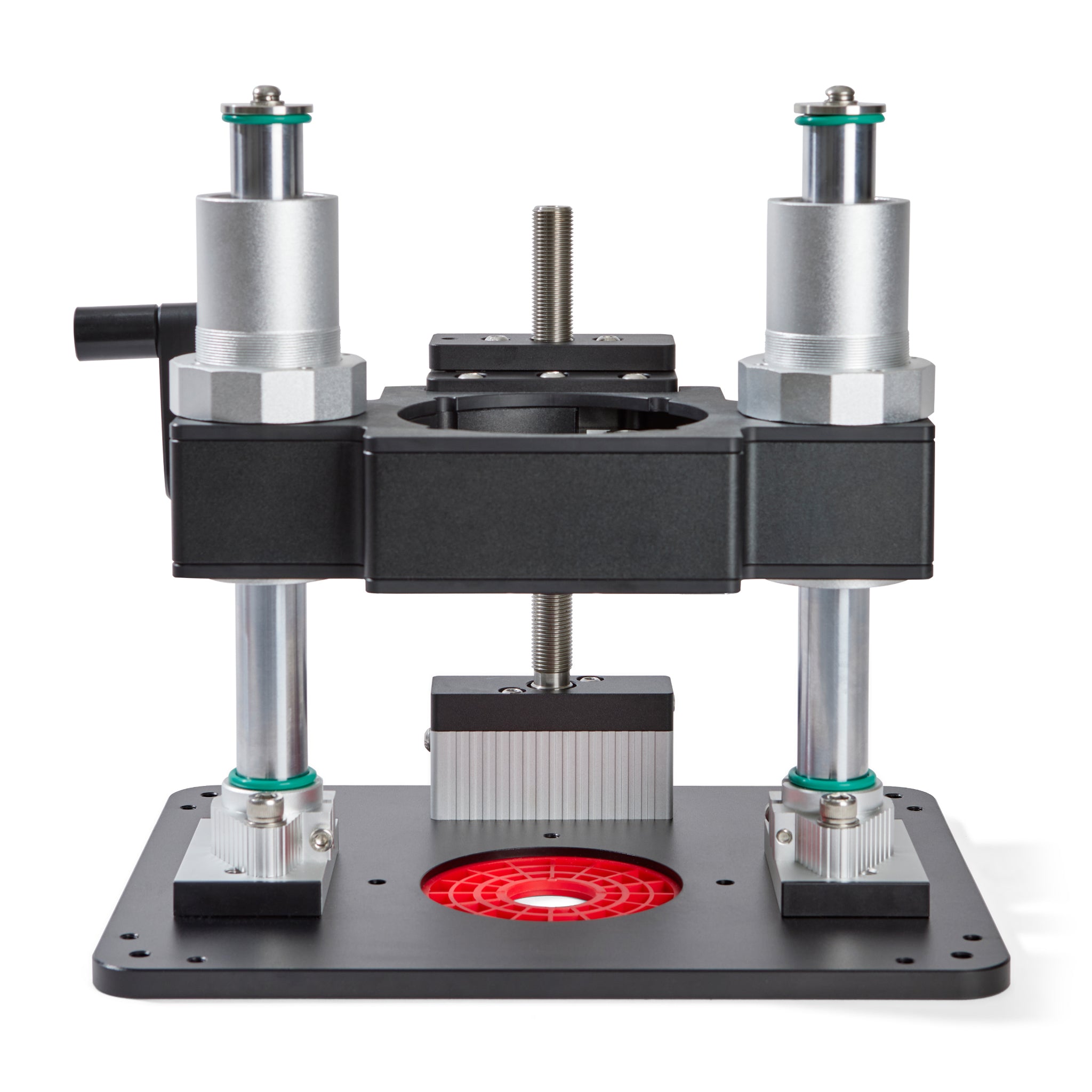

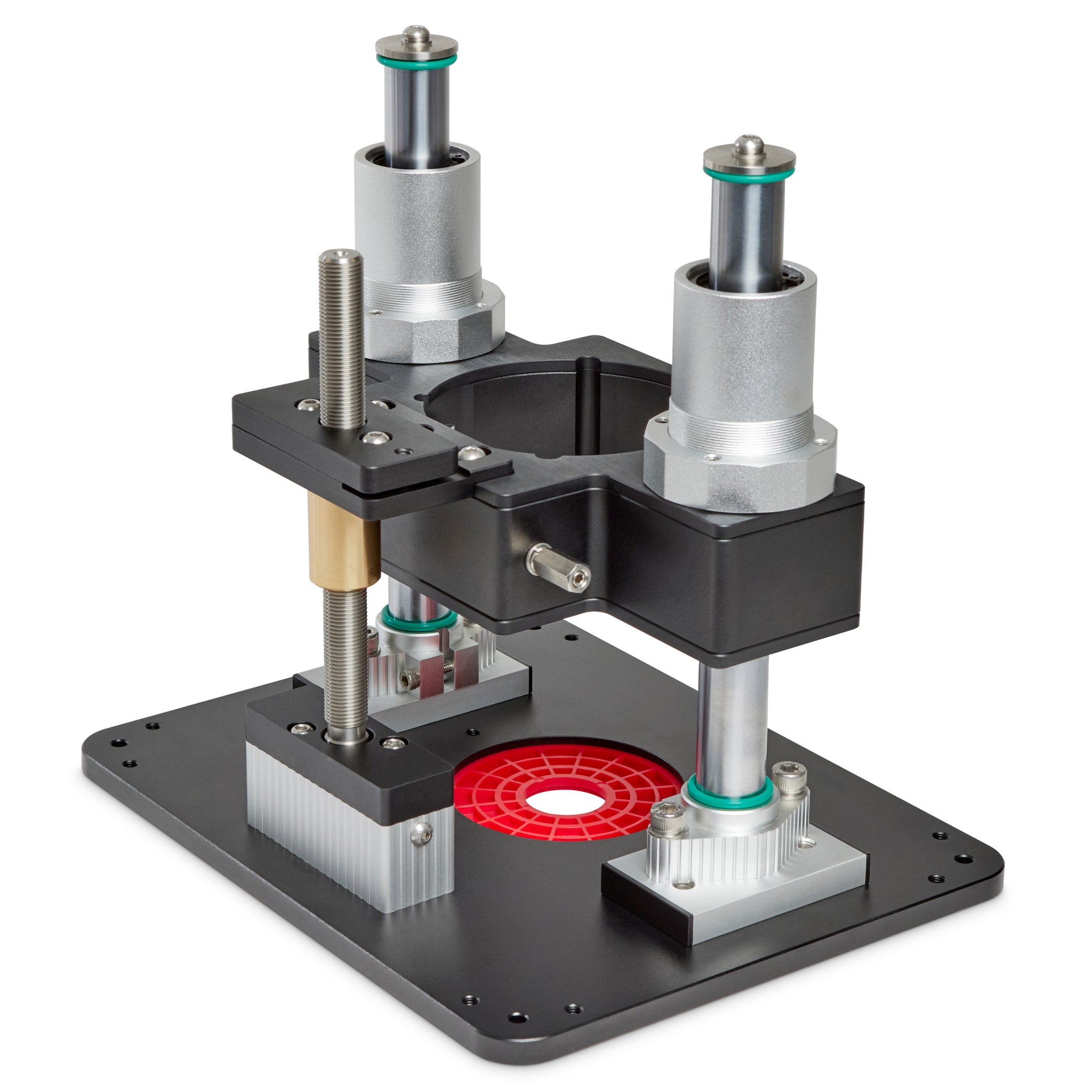

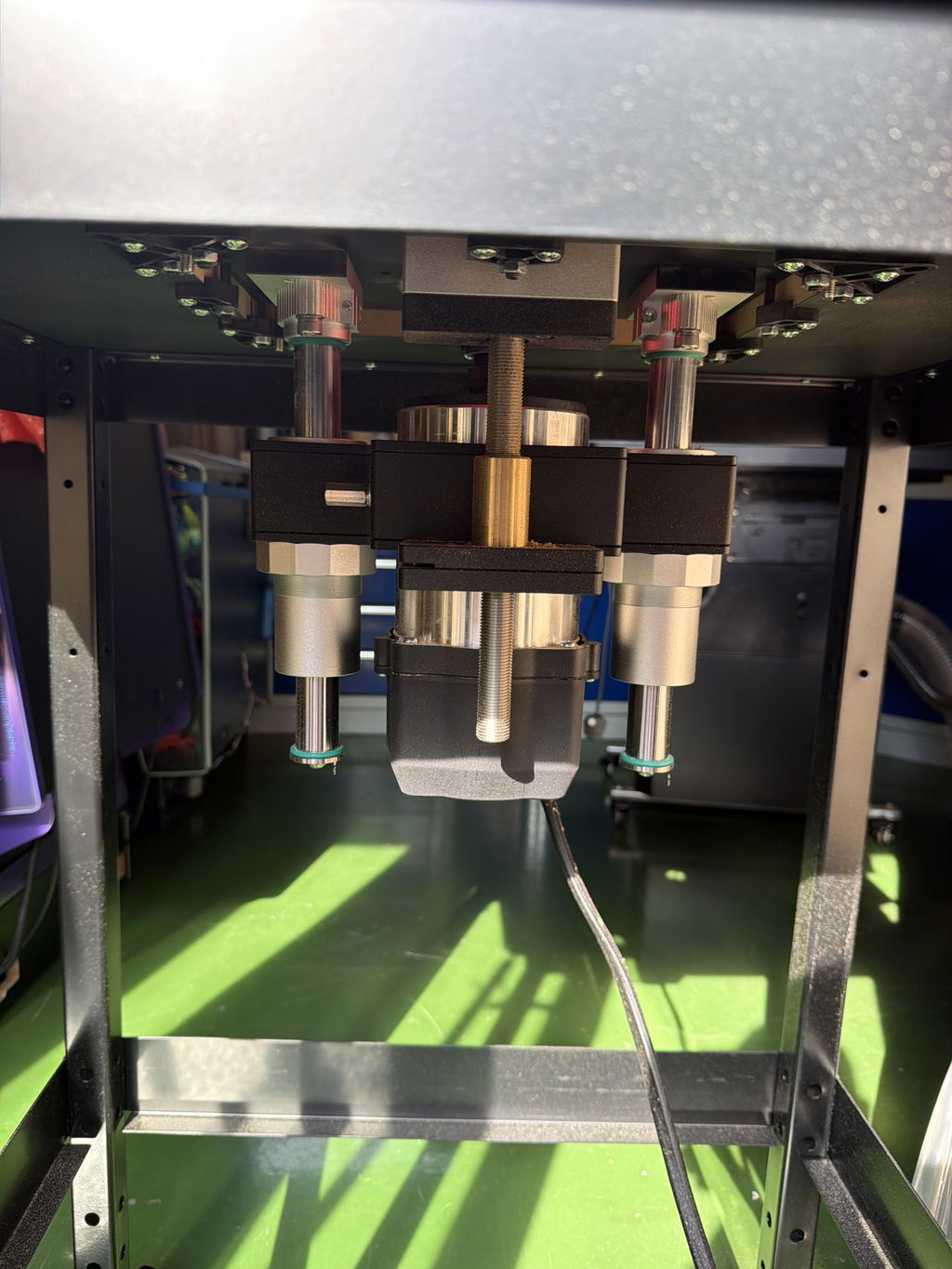

The main drive spindle is precision CNC machined and features a fine pitch thread that allows you to tune-in the height of the router bit to a resolution of 0.025mm. Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration. The carriage of the lift travels on two steel guide posts, that are housed within double-sealed linear bearings to resist dust infiltration resulting in an ultra smooth rise and fall movement, with no side play. The carriage is made from four CNC machined steel plates and incorporates a cam lock, that is adjusted using the crank handle to rigidly secure the router motor in position.

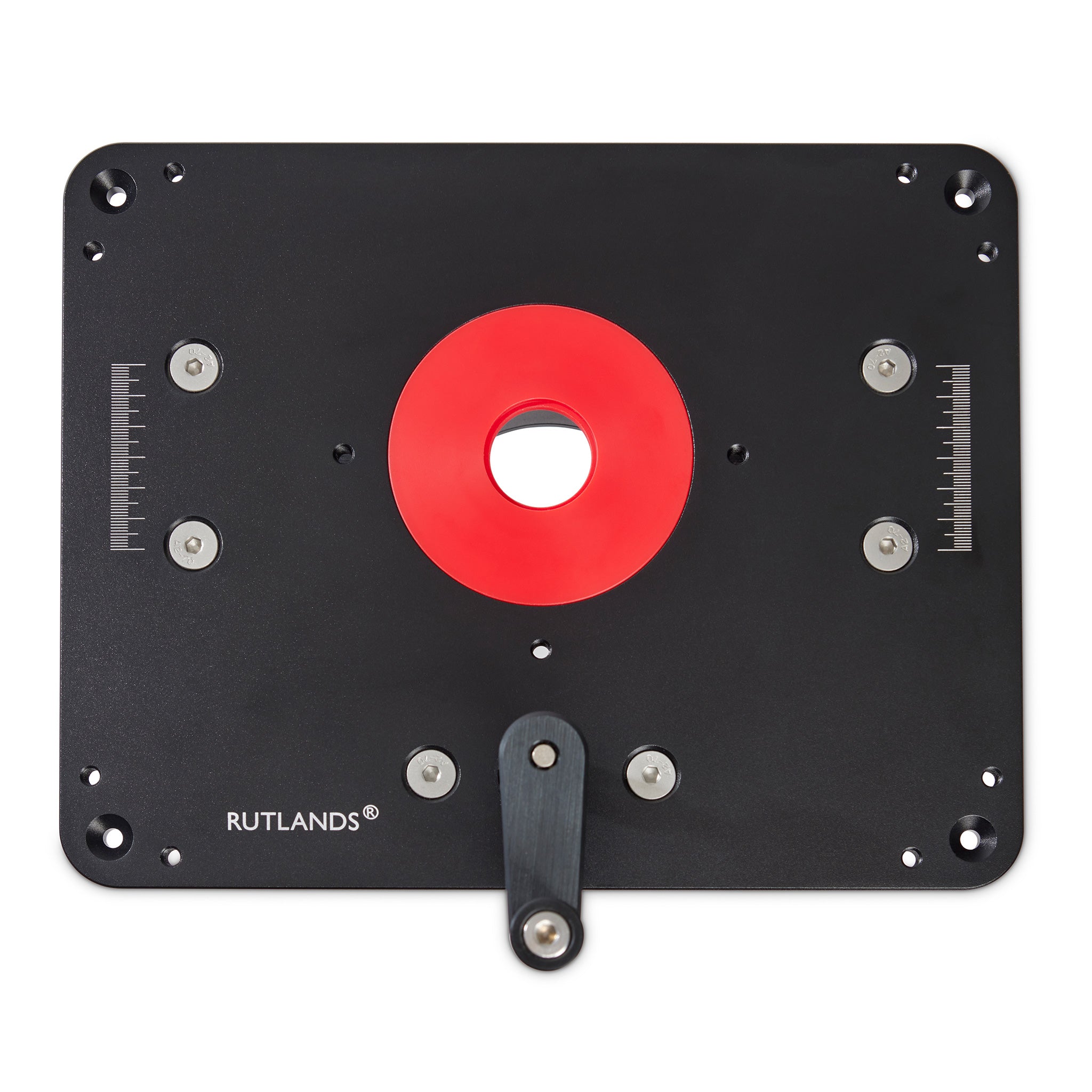

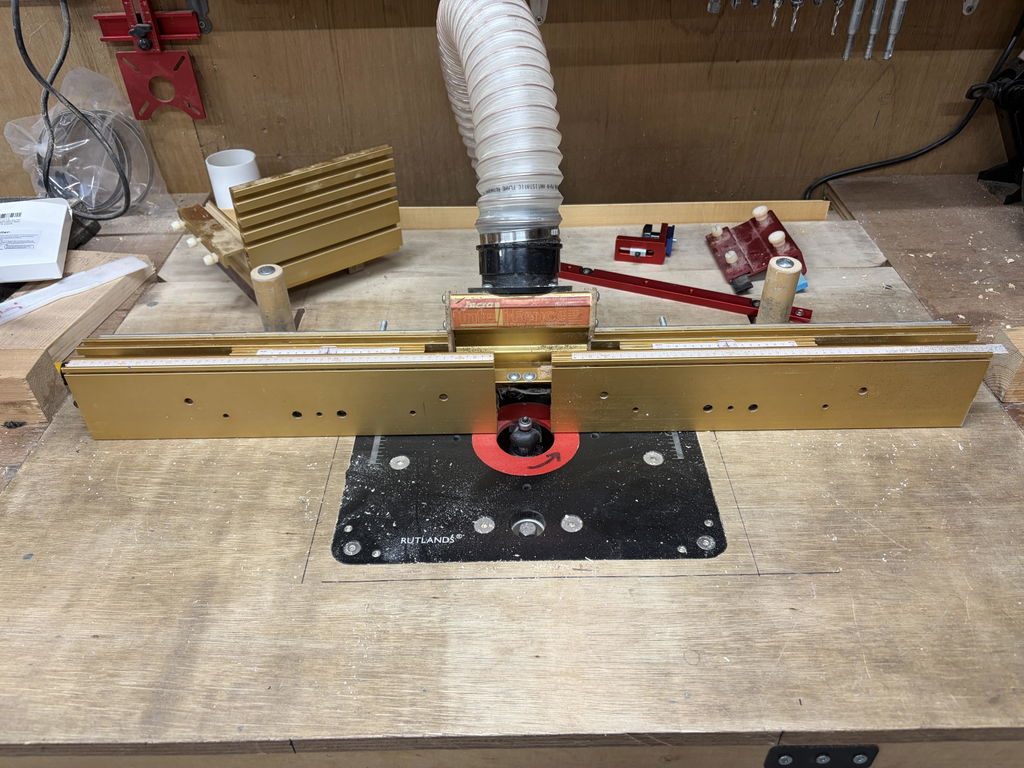

The top insert plate is made from 10mm anodized aluminium for abrasion resistant finish and features a series of adjustment screws for levelling to the table surface. To vary the size of the bit aperture the lift is supplied with three polycarbonate flush insert rings with centre holes of 10mm, 32mm and 50mm. The insert plate measures 298mm x 235mm and is engineered for the table openings of all of the Rutlands® premium router tables. The lift comes supplied with all the hardware and fittings required to mount into a bespoke table, including insert plate template, 32mm flush-cut router bit, four corner levellers, micro adjustment and fixing screws.

Router Motor with Variable Speed Control NVR Switch

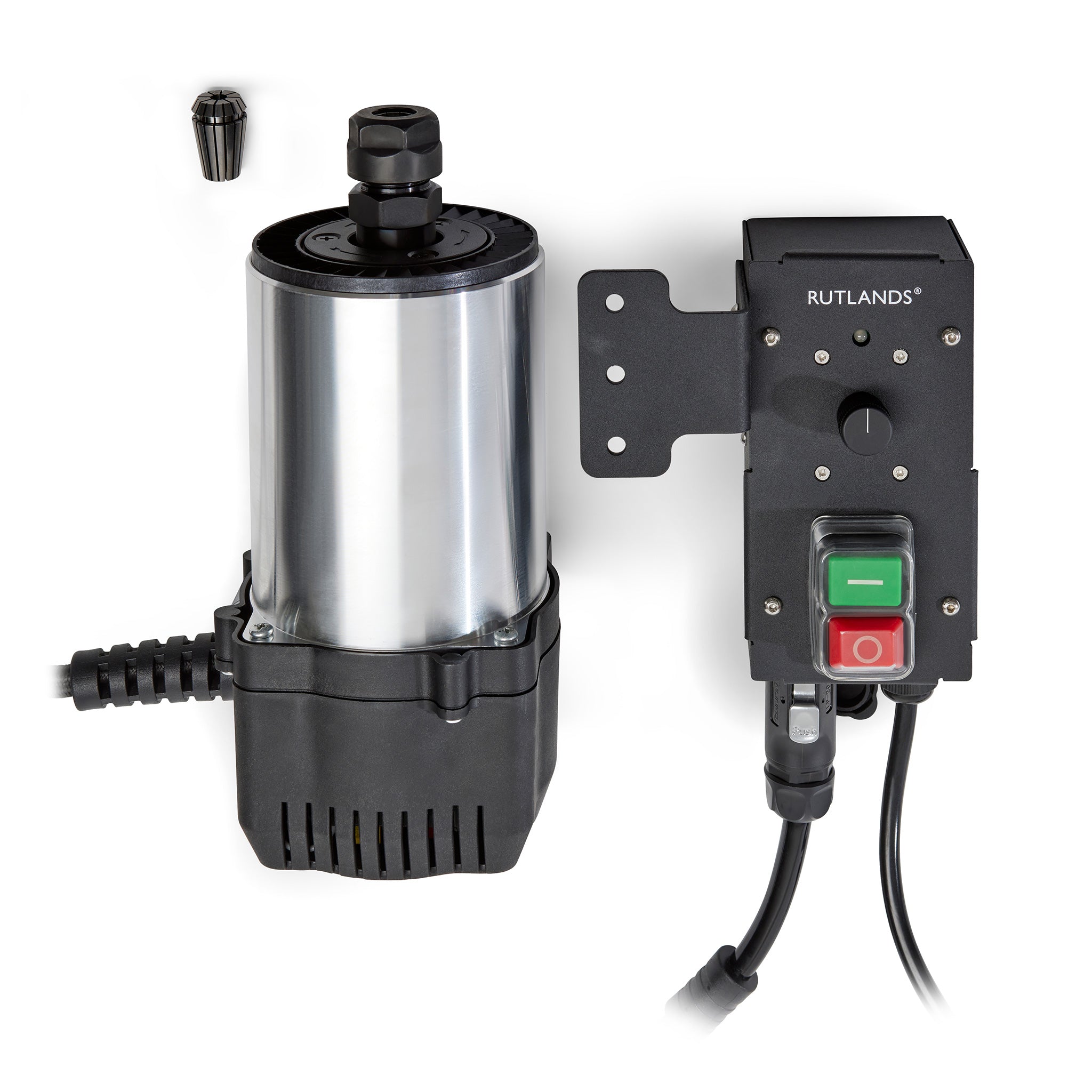

The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

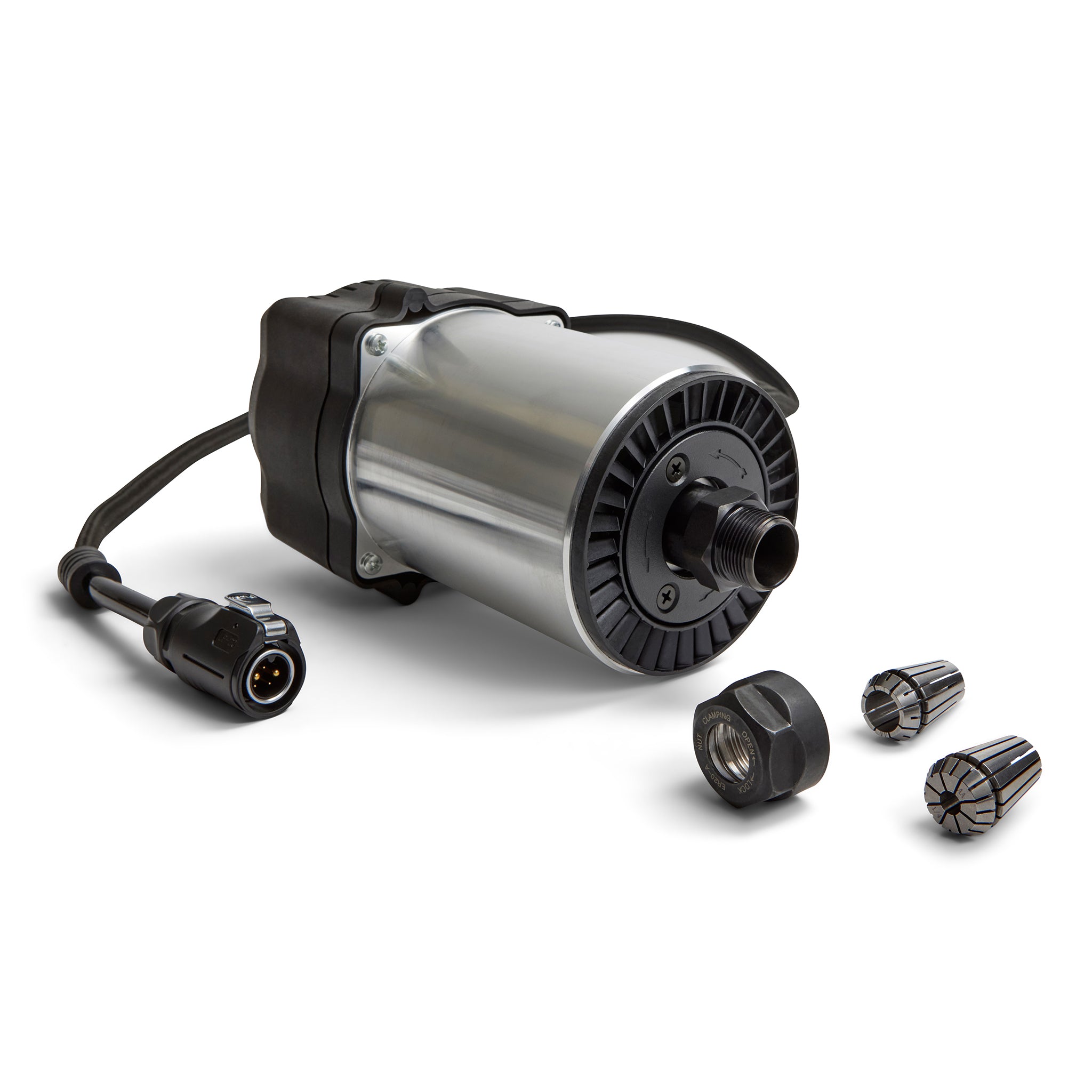

The two 1/4" and 1/2" ER20 collets are precision machined to ensure perfect balance and concentricity, and the large off-set collet wrenches allow for fast bit change over. Optional 6mm, 8mm and 12mm metric collets are available. ©.
