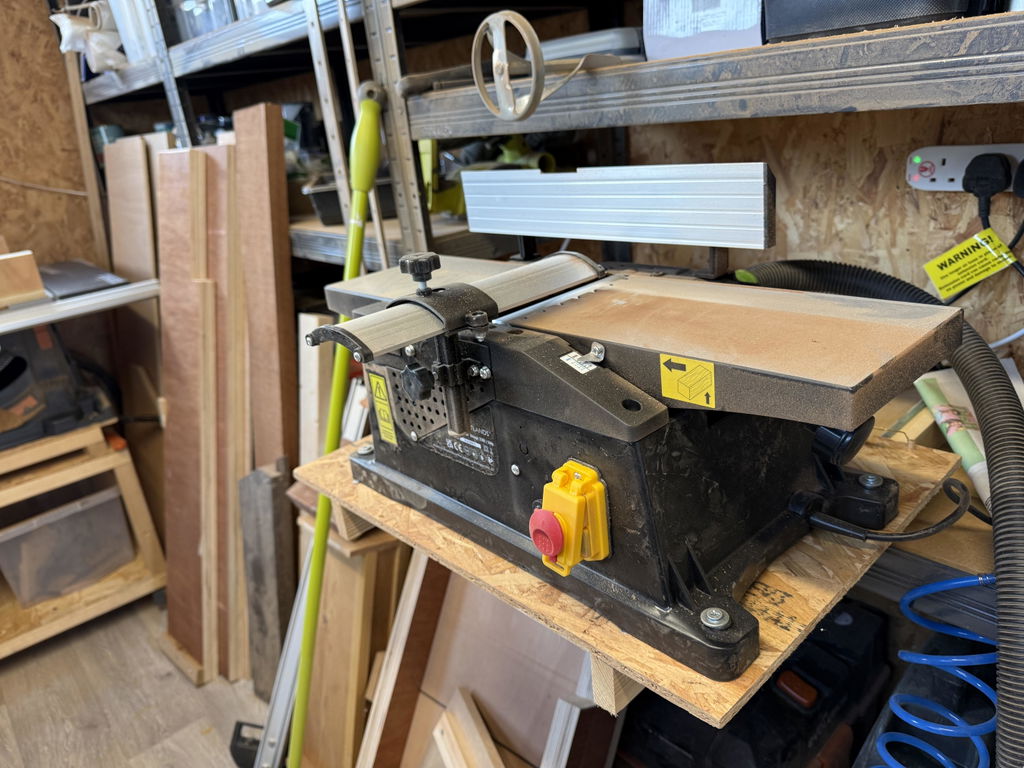

Bench Planer

This bench planer can be used as a surface planer or as a jointer to produce a flat surface along a board's length. When used as a jointer, the machine planes on the narrow edge of boards, using the fence as support, preparing them for use as a butt joint or for gluing into panels. When used as a surface planer, the width of the bed enables you to flatten and level the faces of boards. Surface planing is often performed prior to edge jointing so that the board has a flat reference face for subsequent operations.

Powered by a quiet running 1800W high torque motor you can achieve an ultra smooth finish on softwood, hardwood and composite wood. Mounted in a balanced cutter block, the two high speed steel blades rotate at 12,000rpm, removing up to 3mm depth in one pass. By turning a dial on the infeed table you can micro-adjust the cutting depth to suit the hardness of wood being planed. On softwood you can remove up to the maximum 3mm in one pass and on hardwood and composite wood it is recommended to remove up to 1mm in one pass.

The 155mm wide surface table is made from a precision machined aluminium casting and the side fence tilts through 45° for planing chamfers and angles. The planer blade guard can be moved and locked off both vertically and horizontally to cover the exposed blades. For added safety a no-volt release switch ensures that the motor will not switch back on after a power cut, without the operator pressing the on switch. A 50mm dust port connects to industry standard dust hose fittings, drawing dust directly from the cutter block to ensure an excellent clean workpiece finish. We recommend the application of Rutlands® Machine and Tool Wax to both protect the feed tables and ensure smooth, controlled and friction-free feeding of the workpiece. ©
