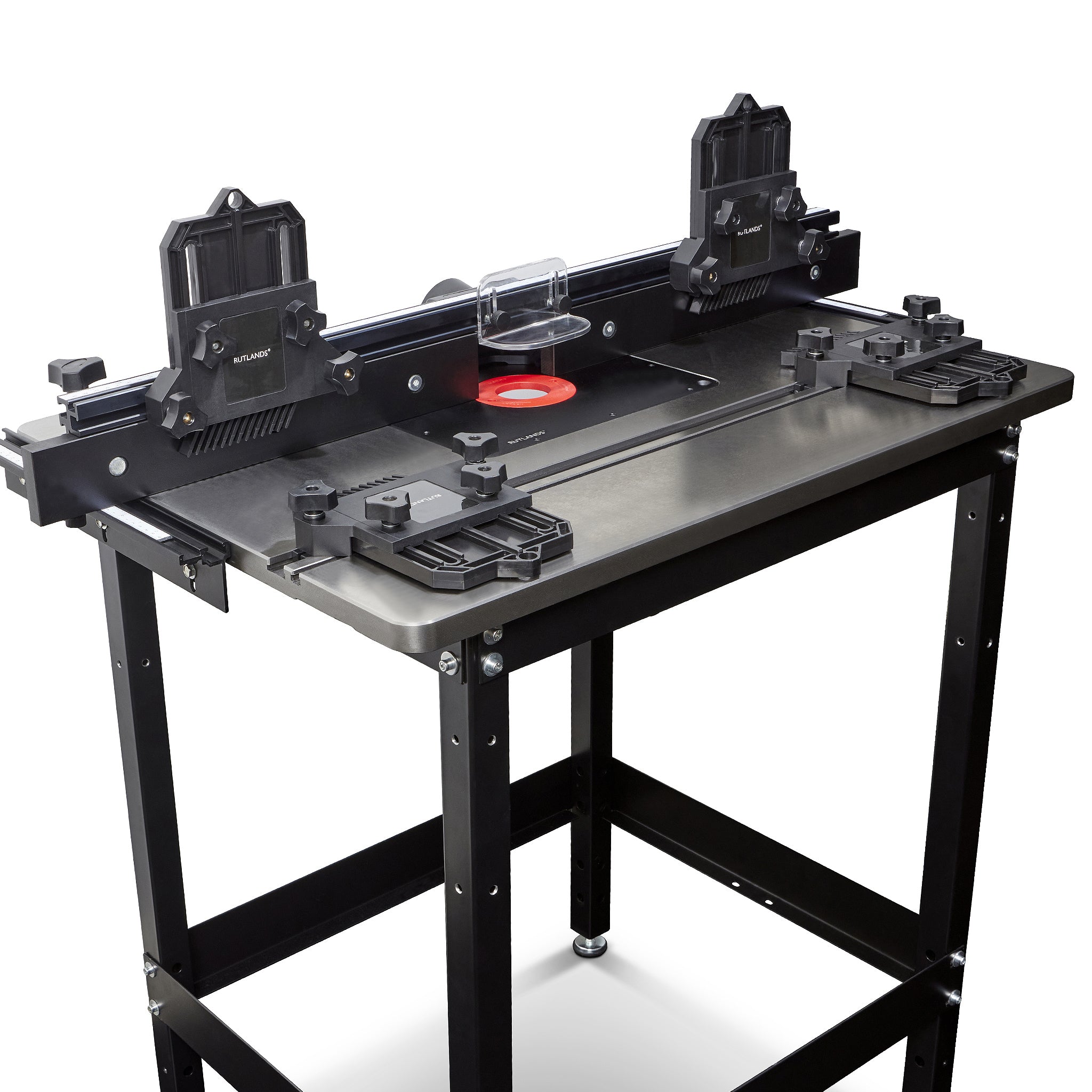

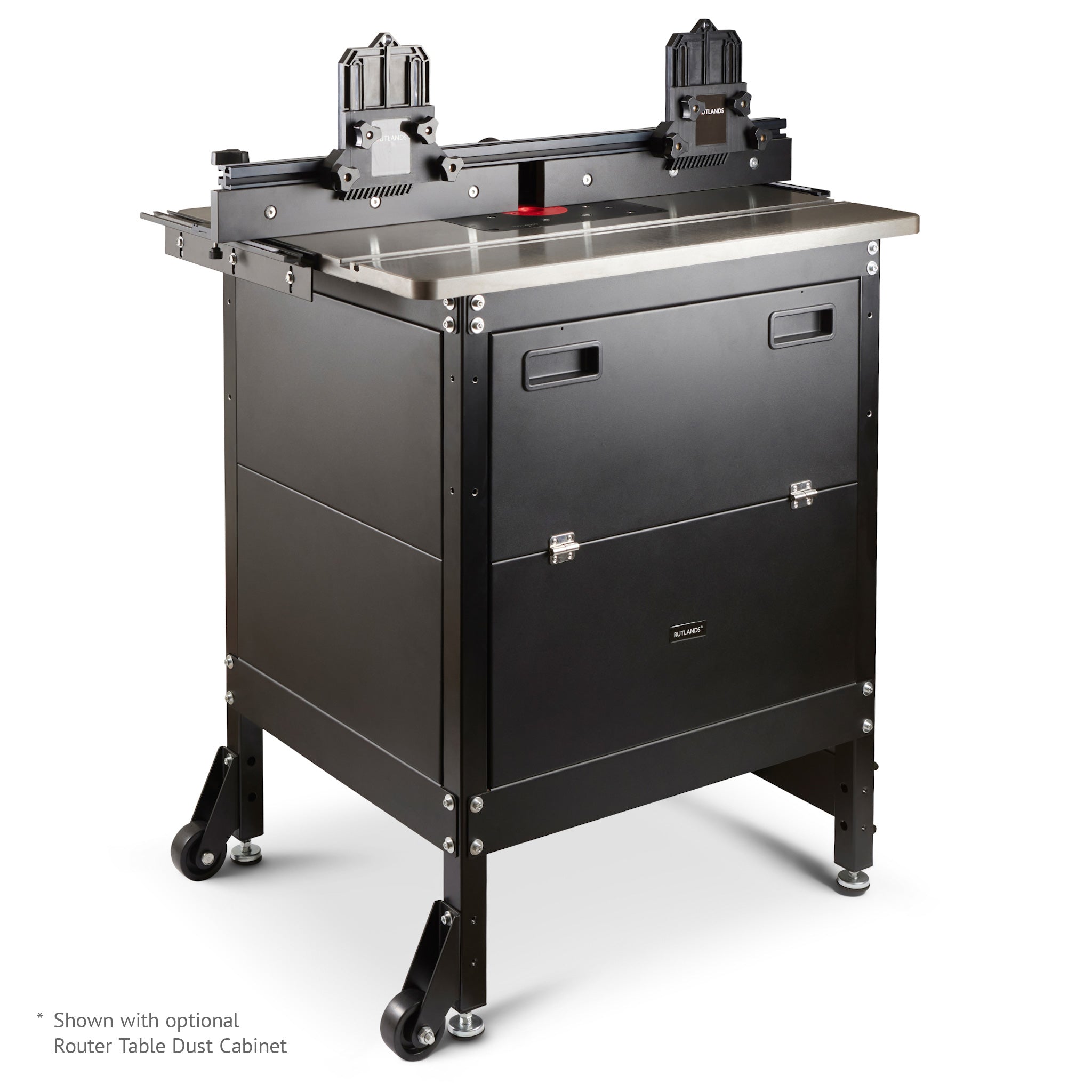

Cast Router Table - R15 Lift and Motor with Speed Control NVR Switch

This premium performance Rutlands® router table features the R5008 router table stand, R5243 cast router table top, R5137 phenolic router table fence, R5075 router lift, R5269 router motor with variable speed control NVR switch and two R5015 double feather boards.

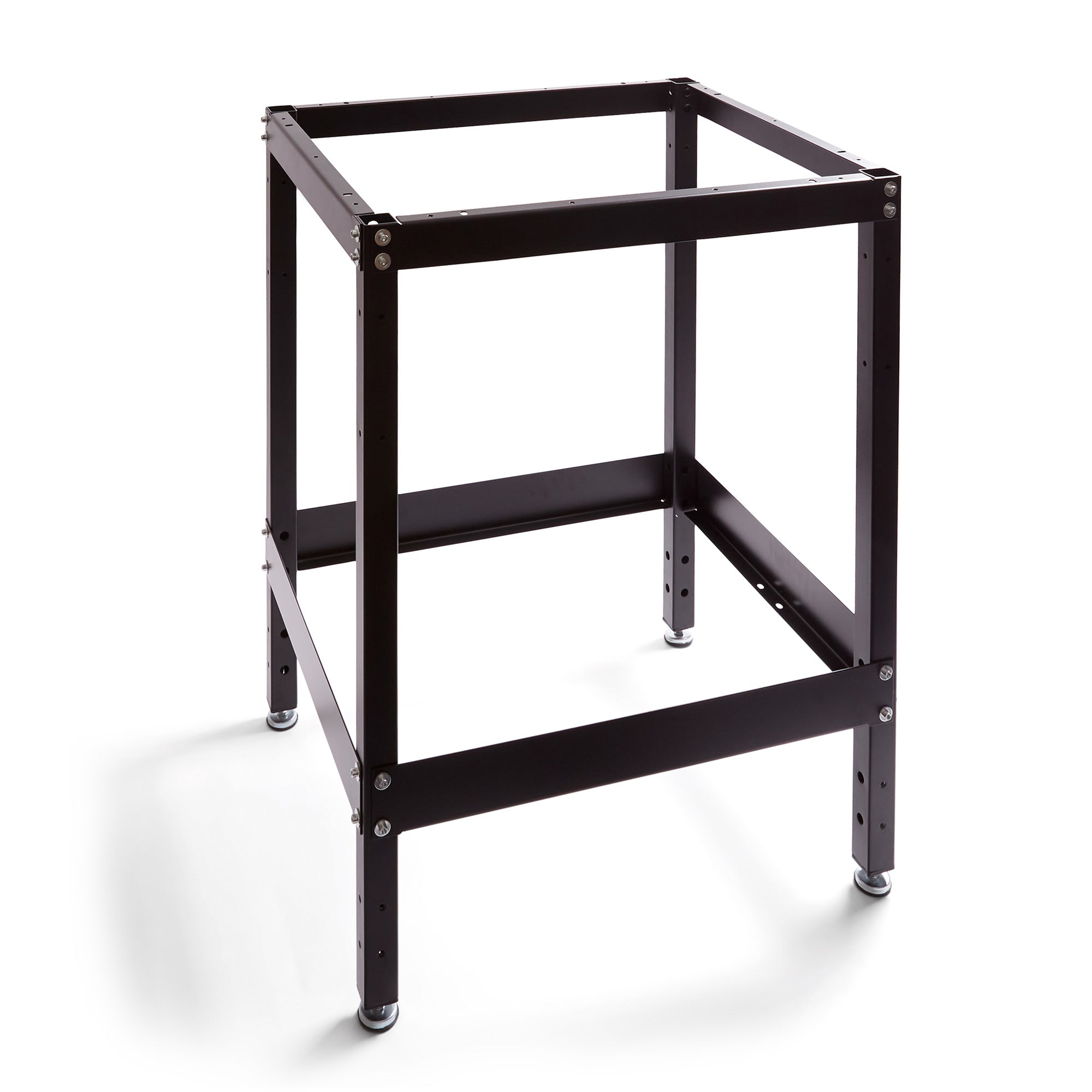

Router Table Stand
The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings.

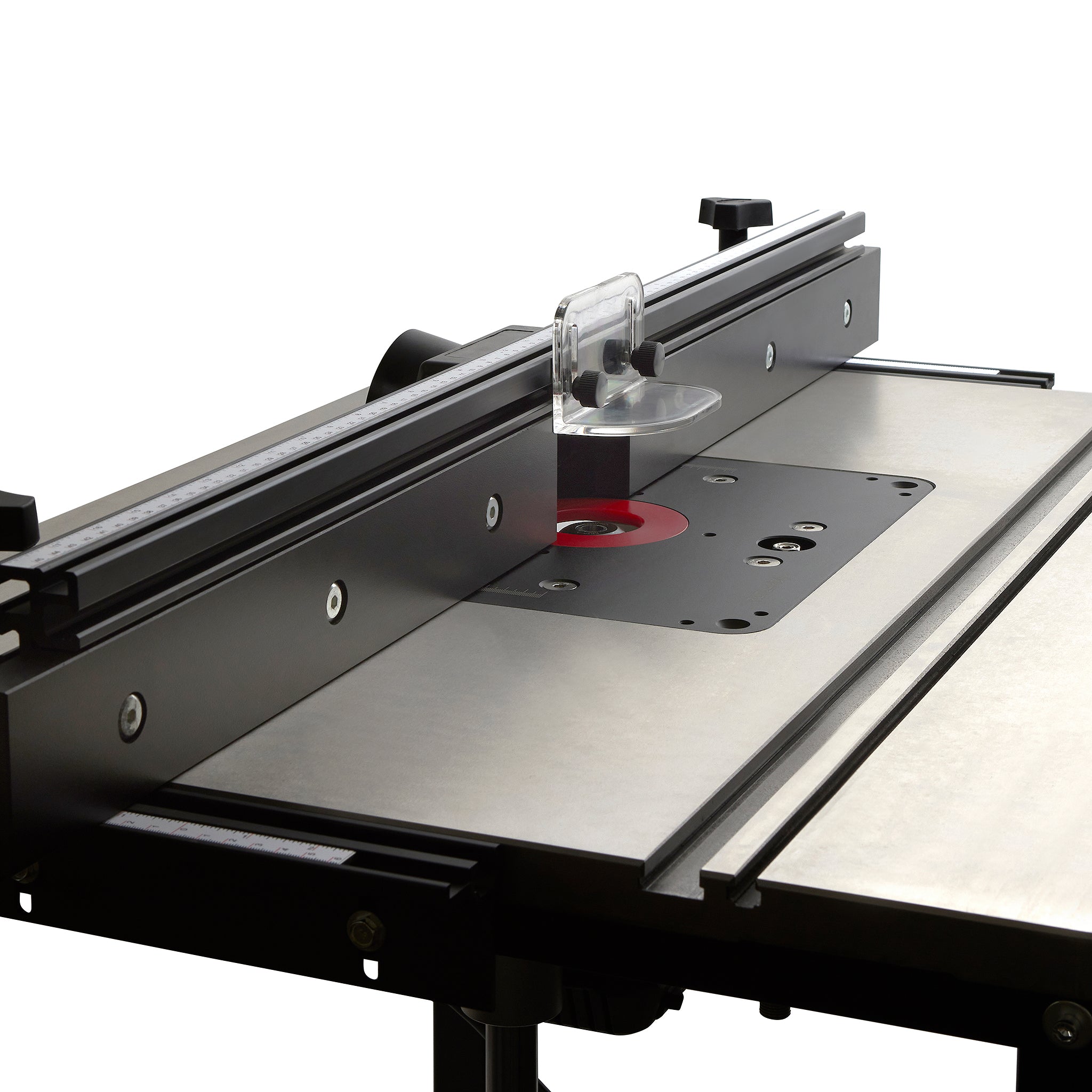

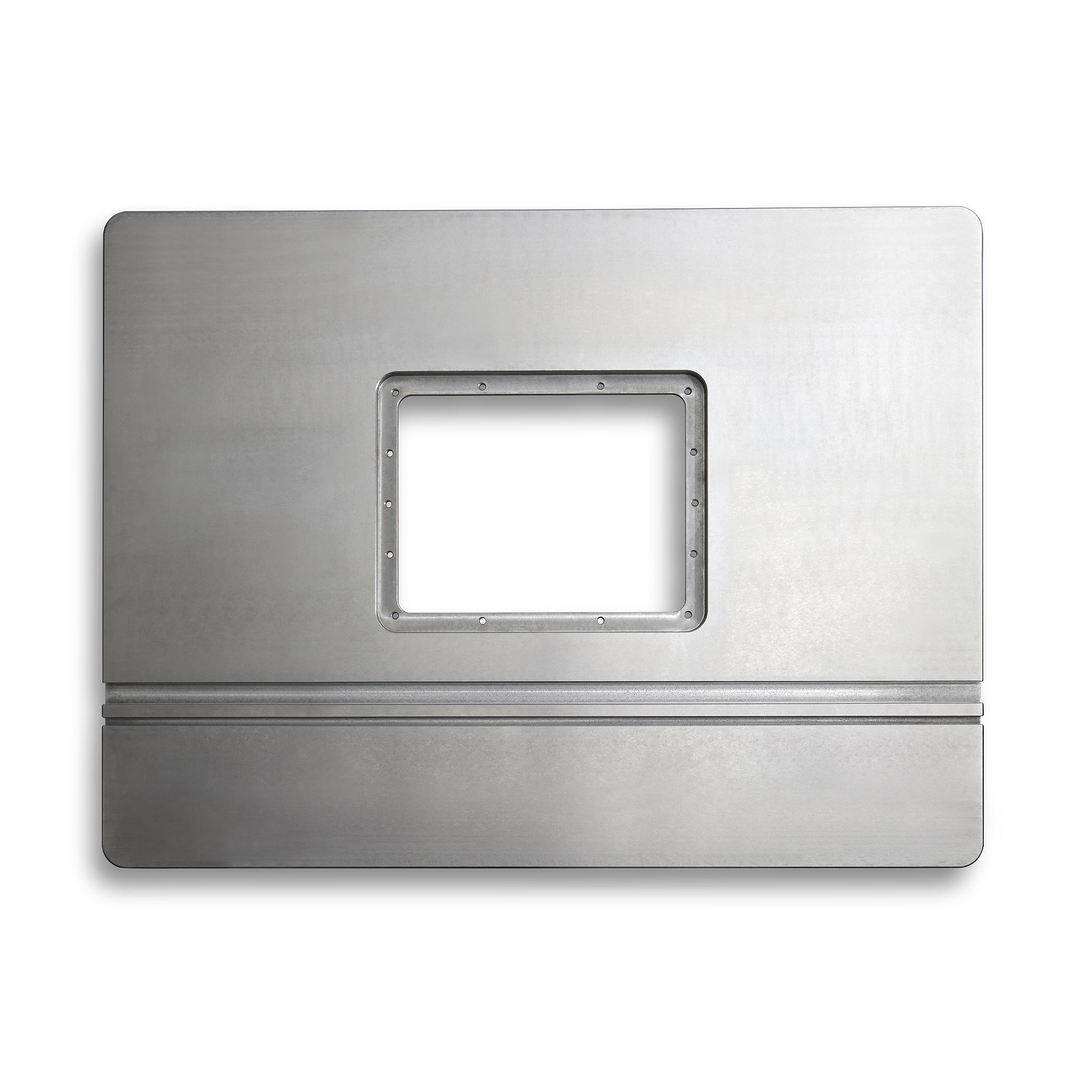

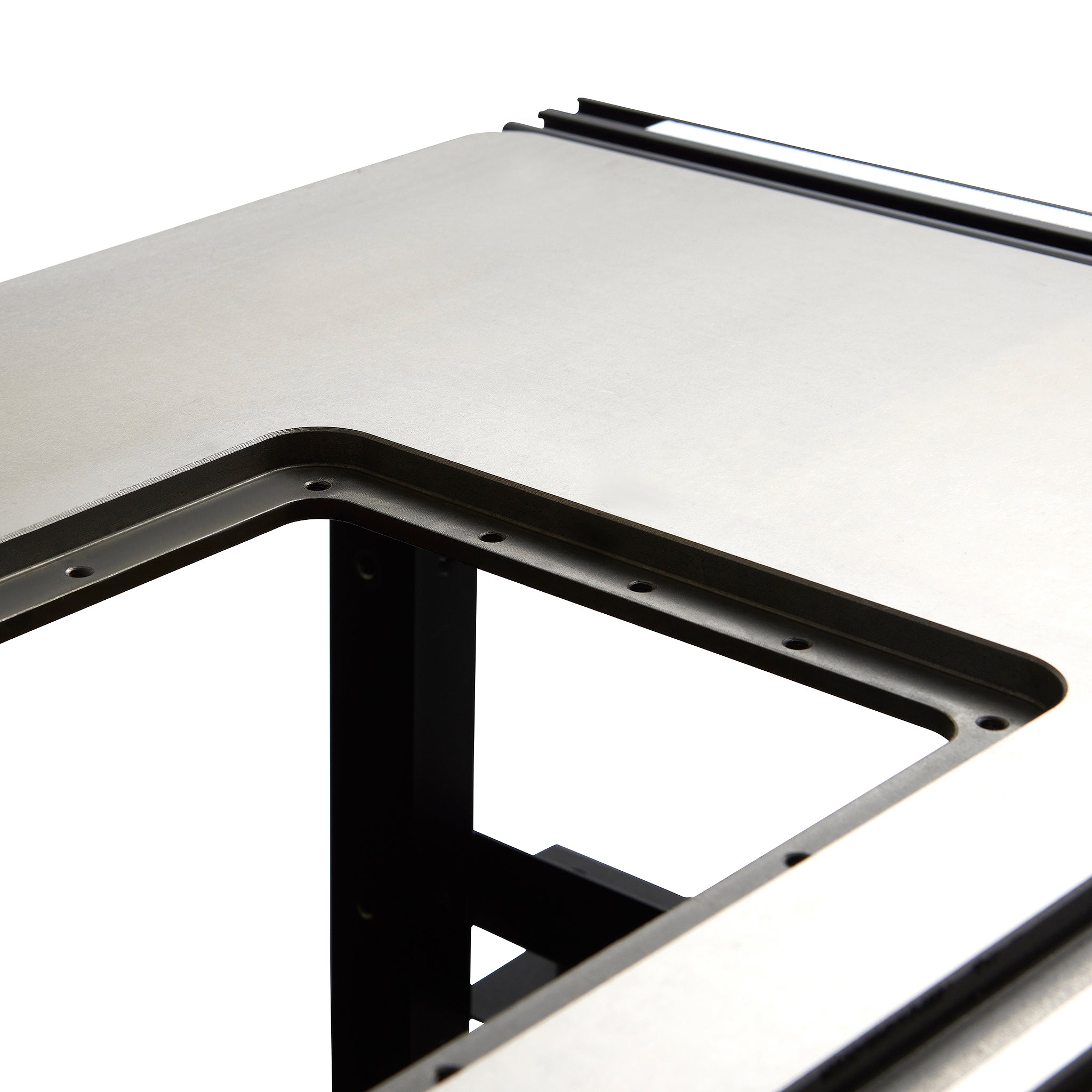

Cast Router Table Top

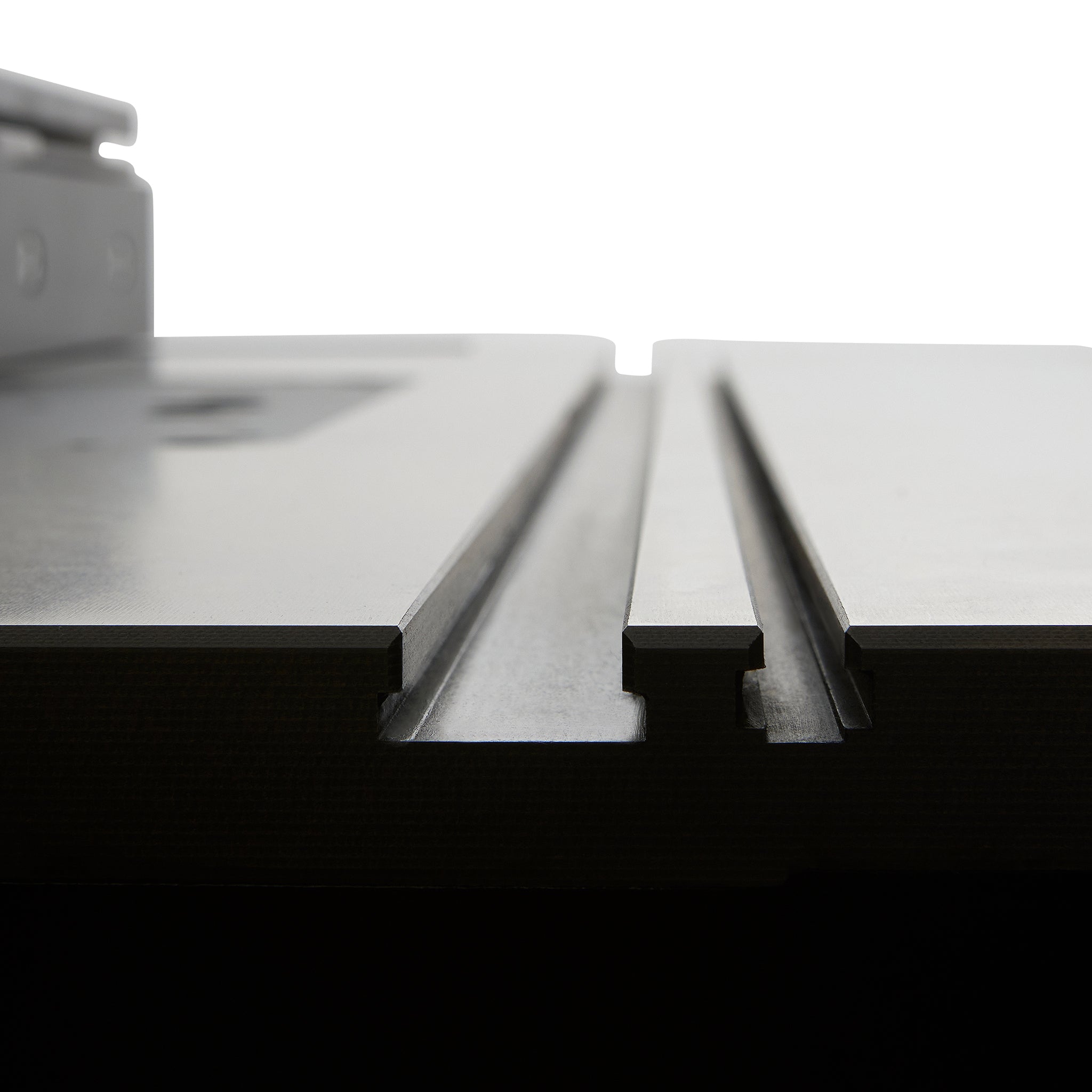

This substantial cast iron router table top has been designed to provide the most stable, exacting routing experience possible. Its solid, single piece design provides the mass to absorb and eliminate vibration whilst routing, ensuring the cleanest possible cuts and superior finish quality. The 800mm wide by 600mm deep table ensures excellent support when routing large and long workpieces. Constructed from a solid piece of cast iron, each table top is left to settle and stabilise before undergoing a precision surface grinding process for flatness. Once machined, the top receives a final polish, leaving the smoothest possible friction-free work surface to pass material across. The underside of the table top has been carefully engineered with a network of ribbing and support points, designed to maximise strength and stress resistance. Machined into the surface is a double T track, including a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and home-made jigs.

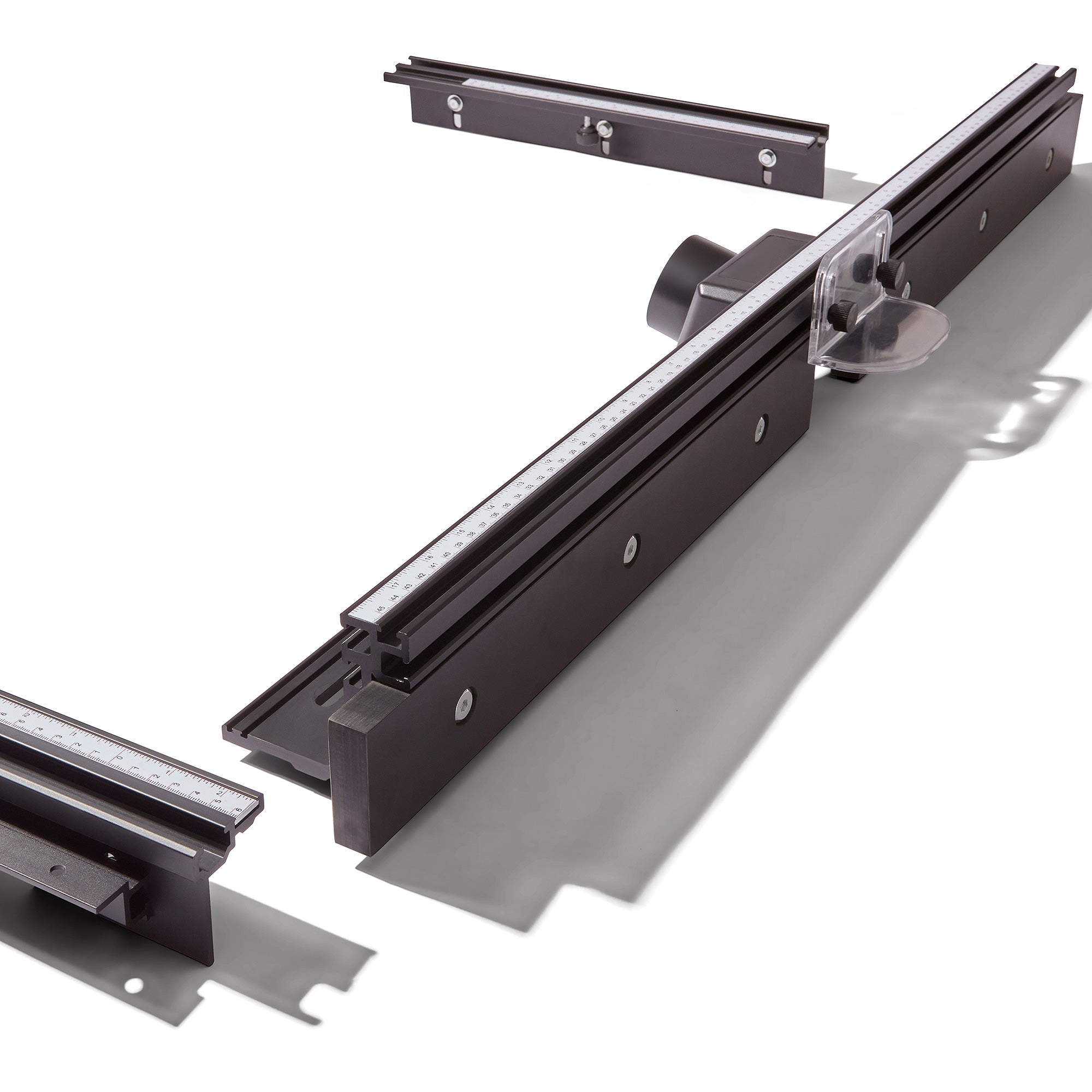

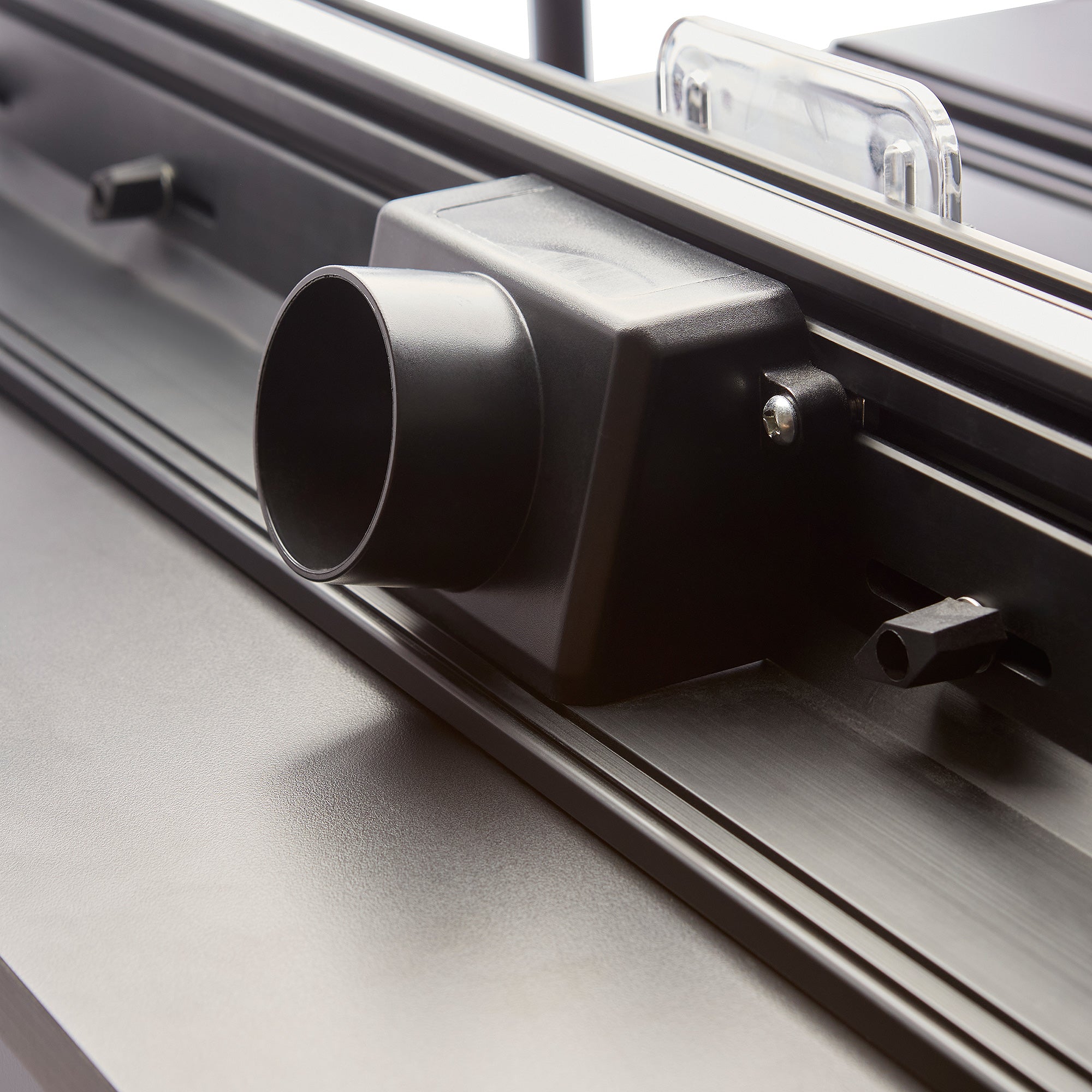

Phenolic Router Table Fence
This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish and features two solid phenolic sub-fences . Made from a 19mm premium-grade, low friction, solid phenolic the sub-fences are extremely strong, hard wearing, scratch resistant and waterproof, eliminating the risk of warping or distortion when working in cold or damp workshops. Phenolic is produced under extreme high pressure and heat, resulting in fences that are exceptionally accurate, flat and level. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planning.

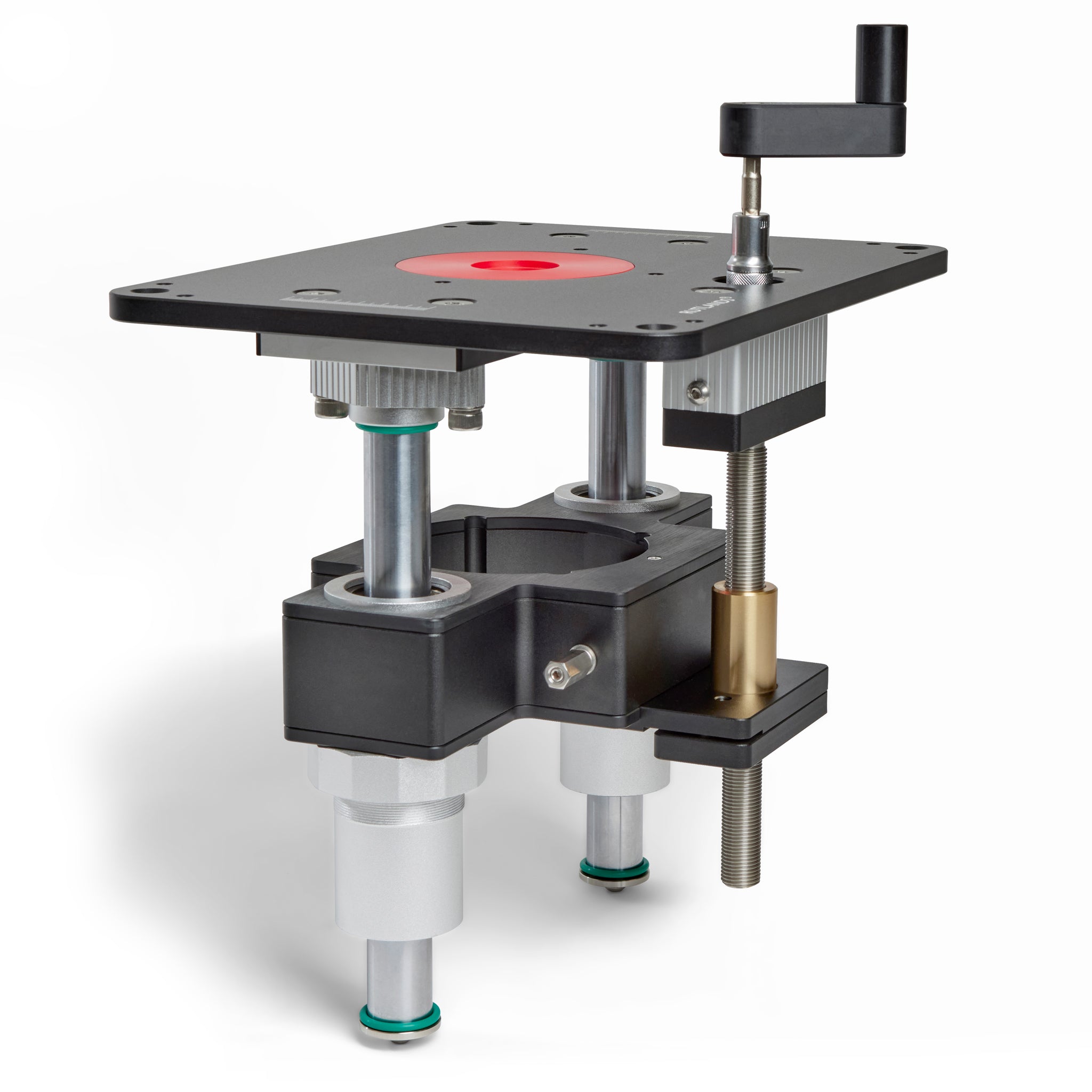

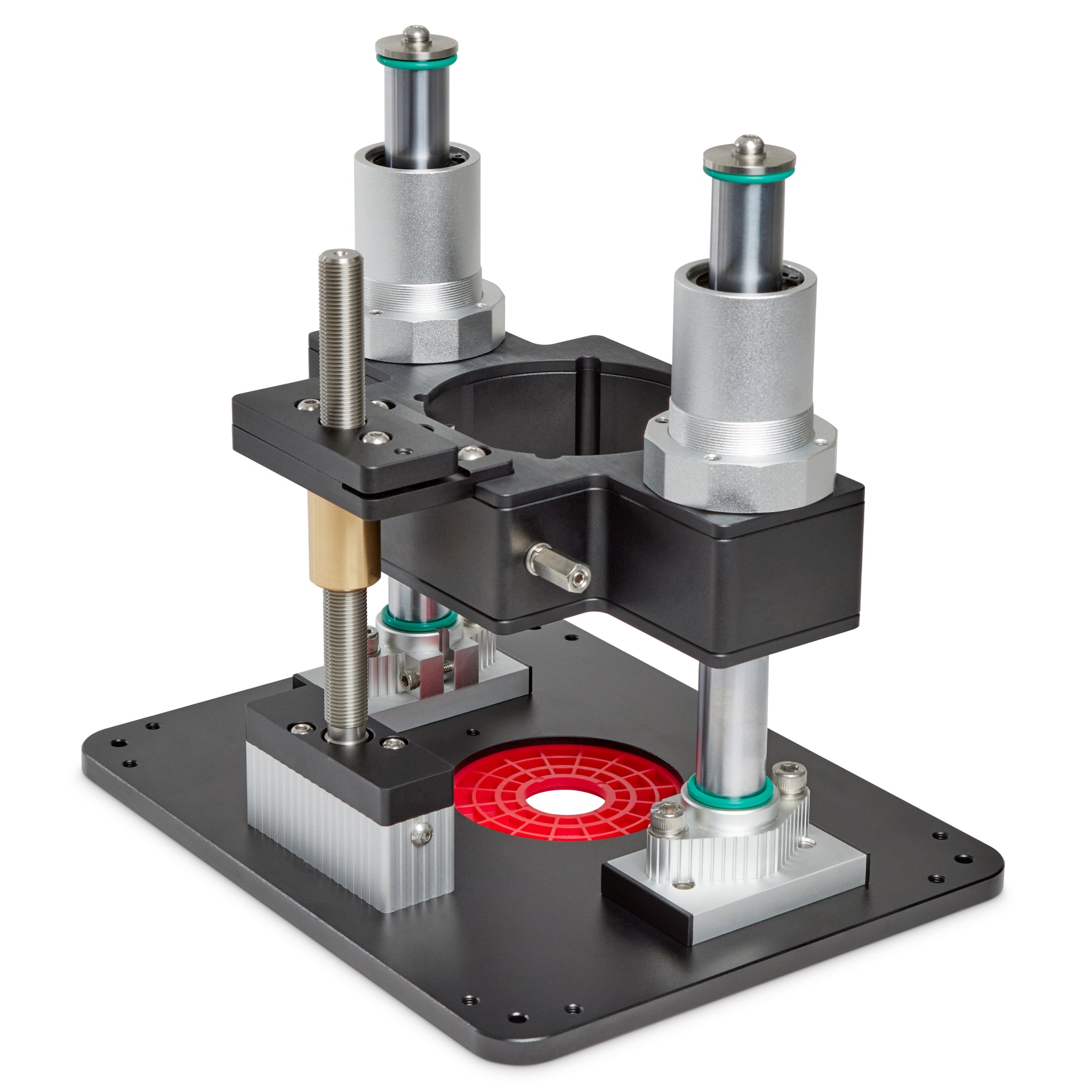

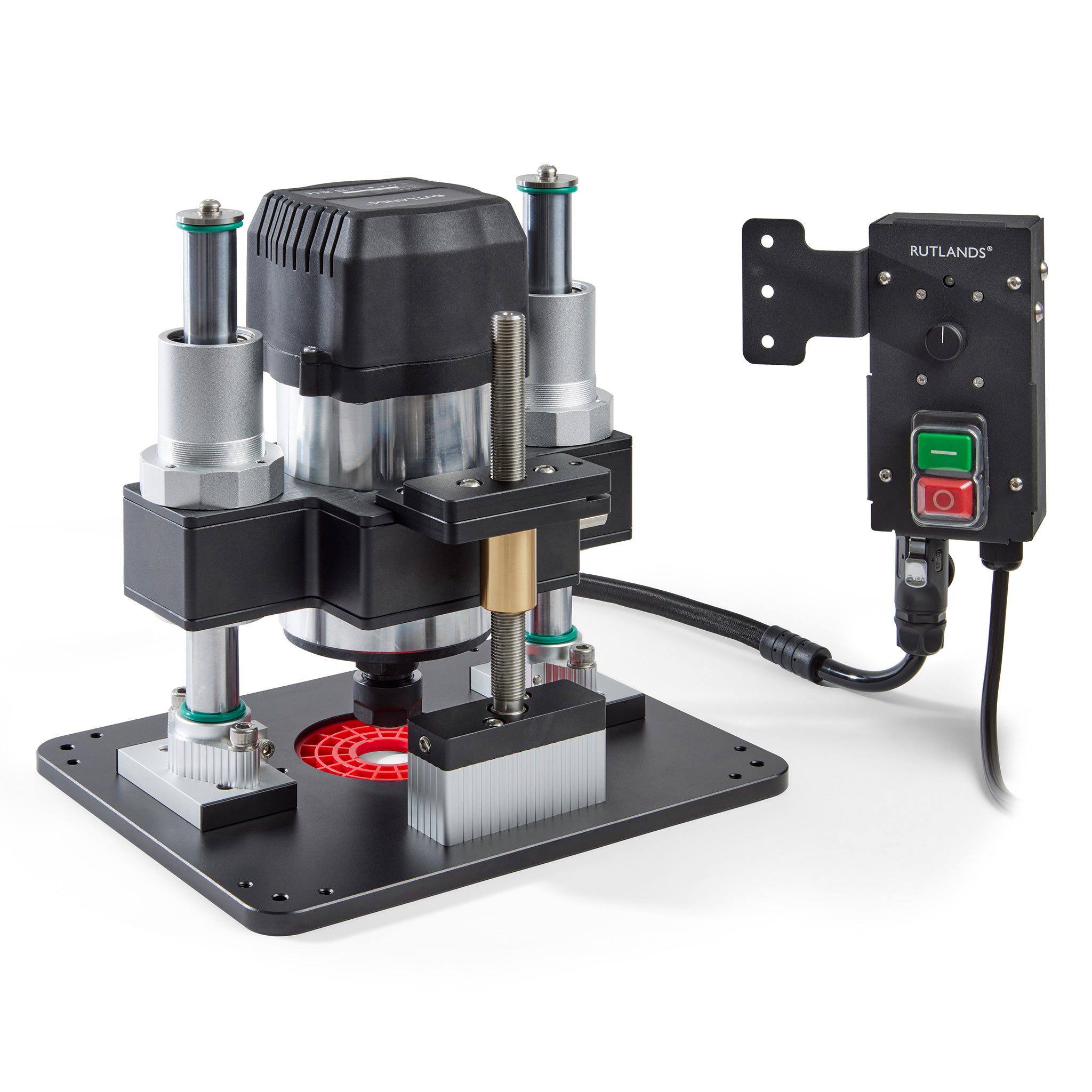

Router Lift - R15
Built with premium quality materials to an exacting standard, the lift has been meticulously engineered to ensure precise, ultra smooth raising and lowering of the router bit. The height adjustment is controlled from above the table by inserting and rotating the removable crank handle, making adjustment fast, simple and extremely precise. The lift positions the router collet above the table surface when fully raised to allow for easy access and quick bit changes. The main drive spindle is precision CNC machined and features a fine pitch thread that allows you to tune-in the height of the router bit to a resolution of 0.025mm. Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration.

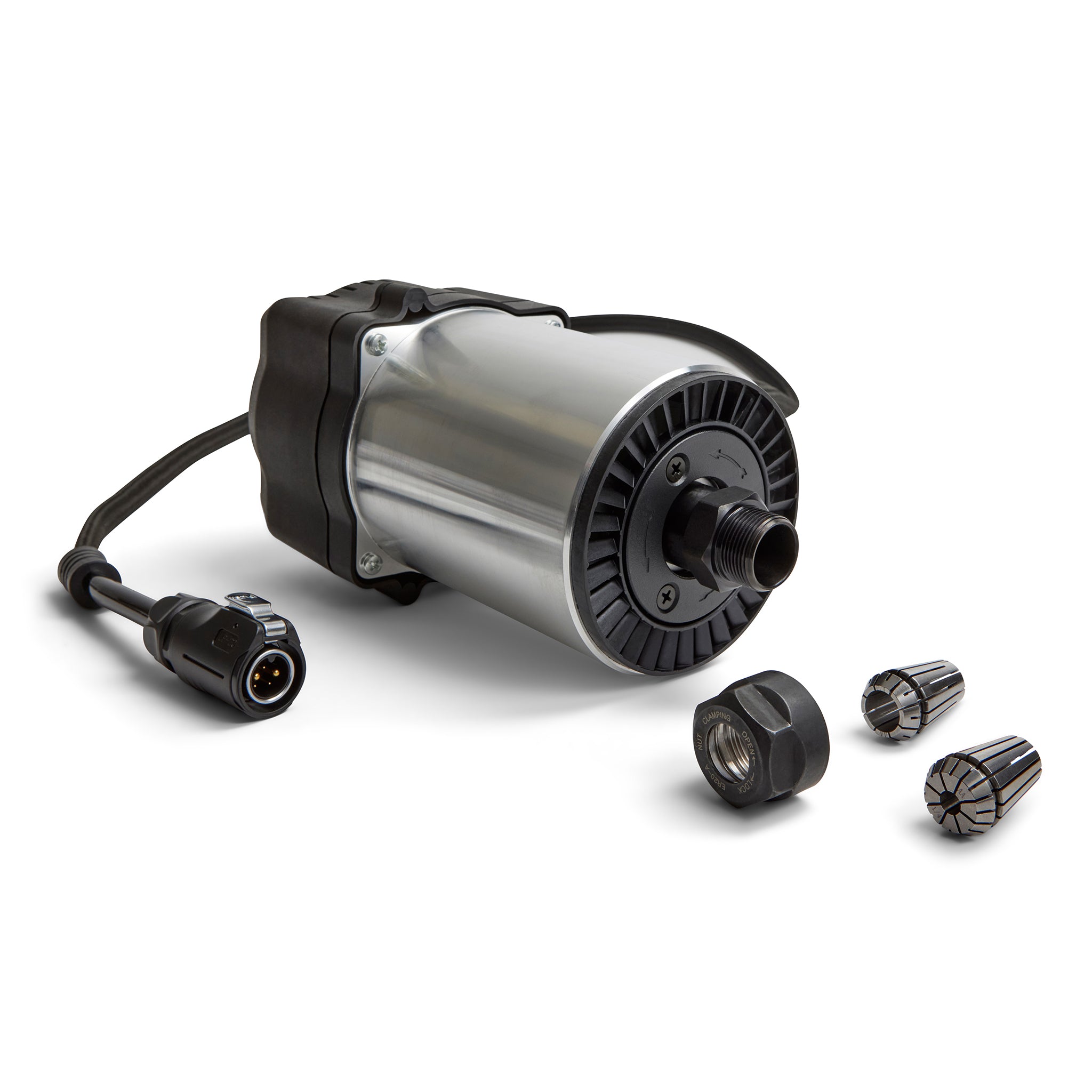

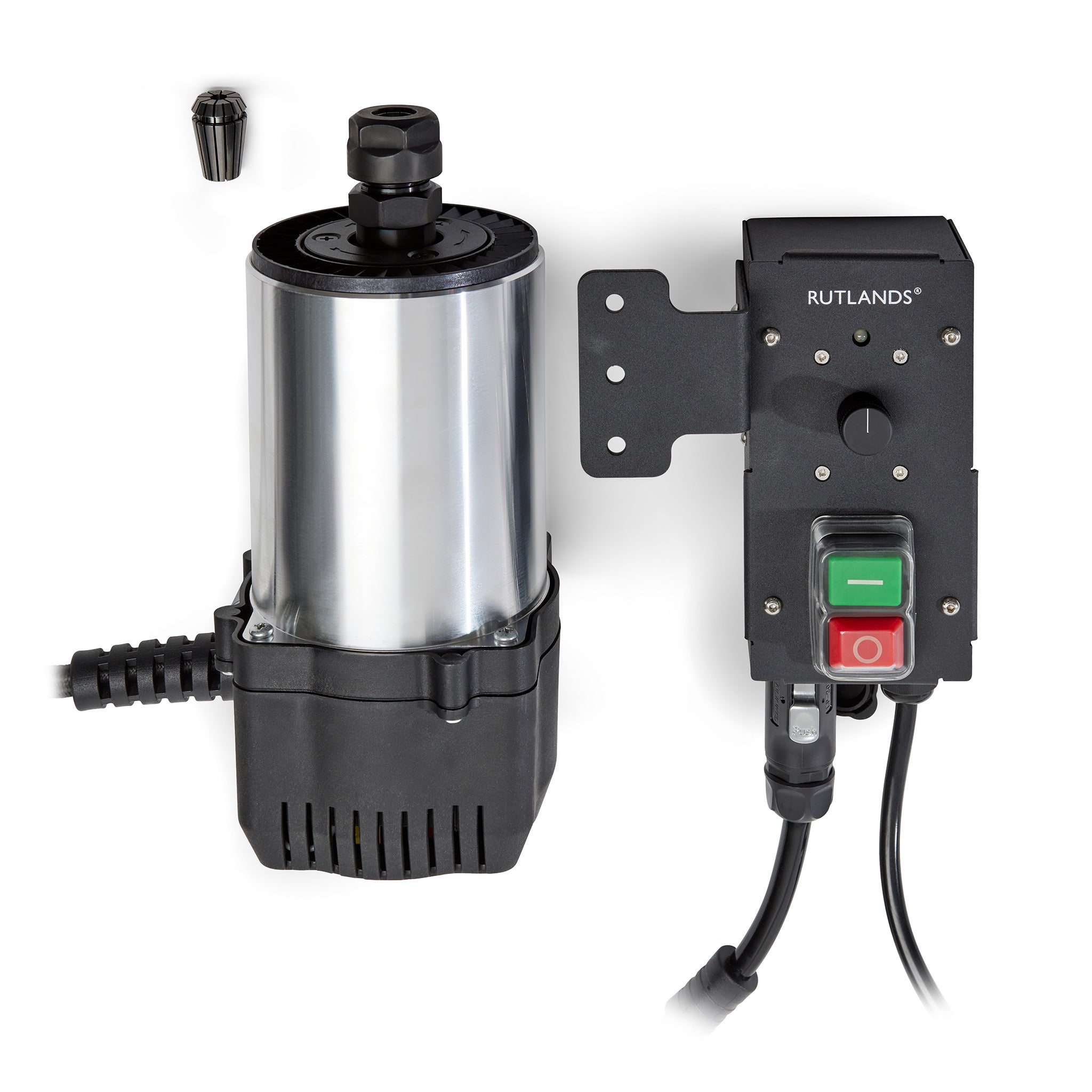

Router Motor with Variable Speed Control NVR Switch
The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

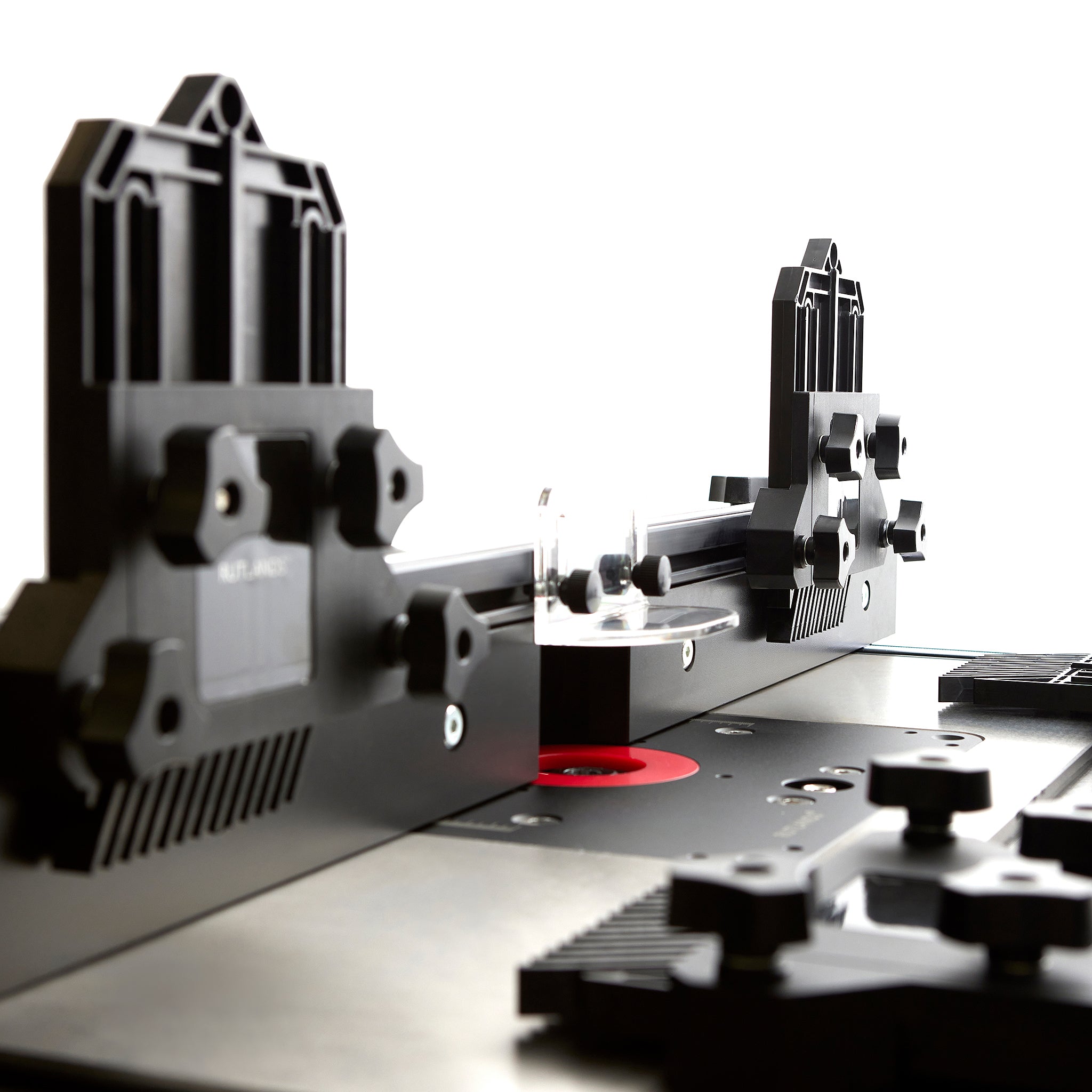

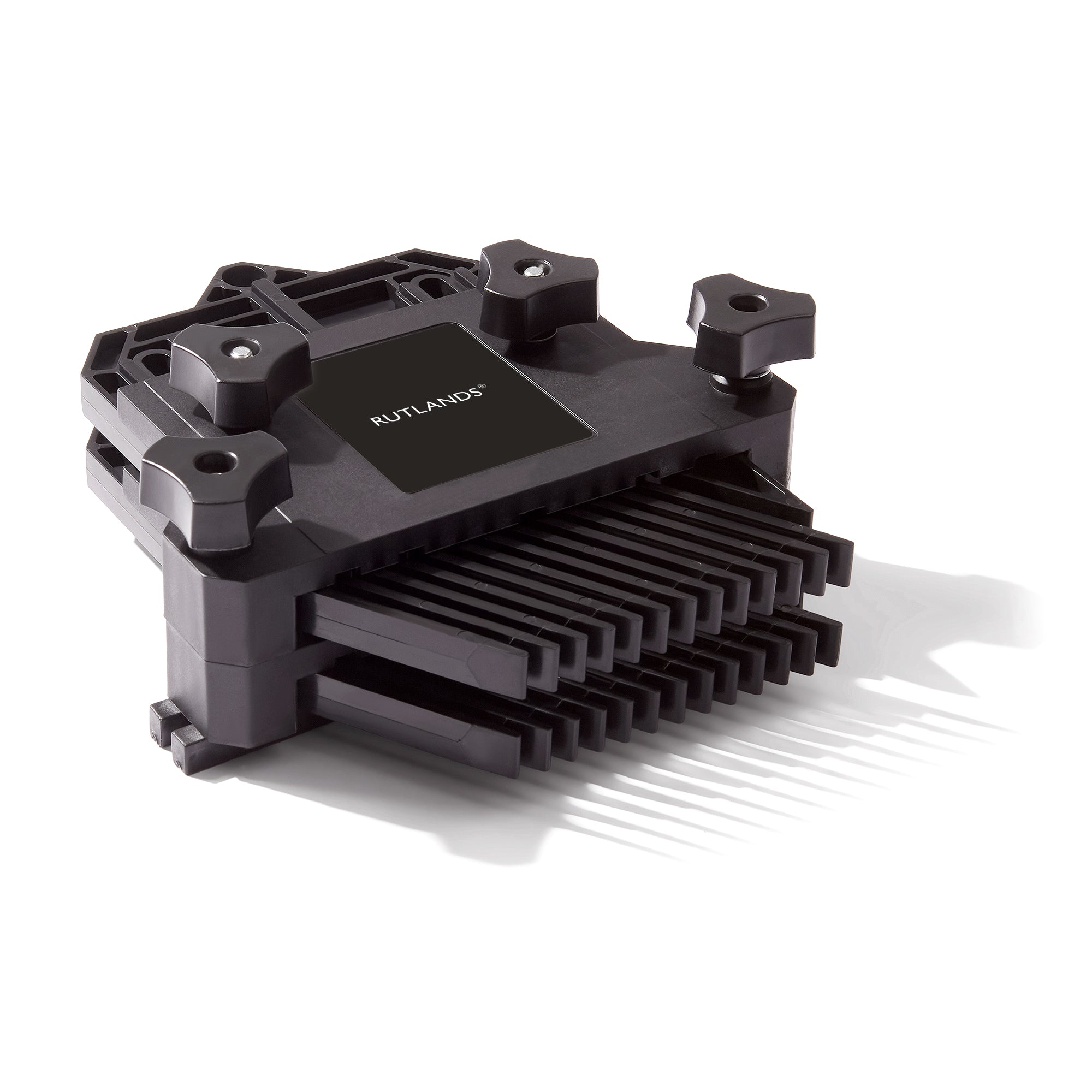

Double Feather Board
These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers.©
