This electronic router lift simplifies router bit height adjustment, significantly reducing set up time whilst providing pinpoint accuracy. Height adjustment is operated by a digital control box, featuring an easy to read touch screen LED display. Either hold the up or down button or simply input the required height to raise or lower in precise 0.1mm increments.

Product variants

Shop with confidence with our 3 Year Warranty
Rated excellent by Trustpilot based on 30,081 reviews
Over 2.5 million Rutlands® premium woodworking tools sold worldwide

Electronic Router Lift - R20

£650.00

~~£0.00~~ £650.00

3 Year Warranty
Digital control box sets the router bit height to an accuracy of 0.1mm
Manually enter the height adjustment or simply hold the up or down button
Reset to zero at any height and adjust in 0.1mm increments for incremental passes
Inbuilt thread tensioning design ensures that the router height will never slip
Precision CNC machined carriage is mounted on sealed-for-life bearings for perfect travel

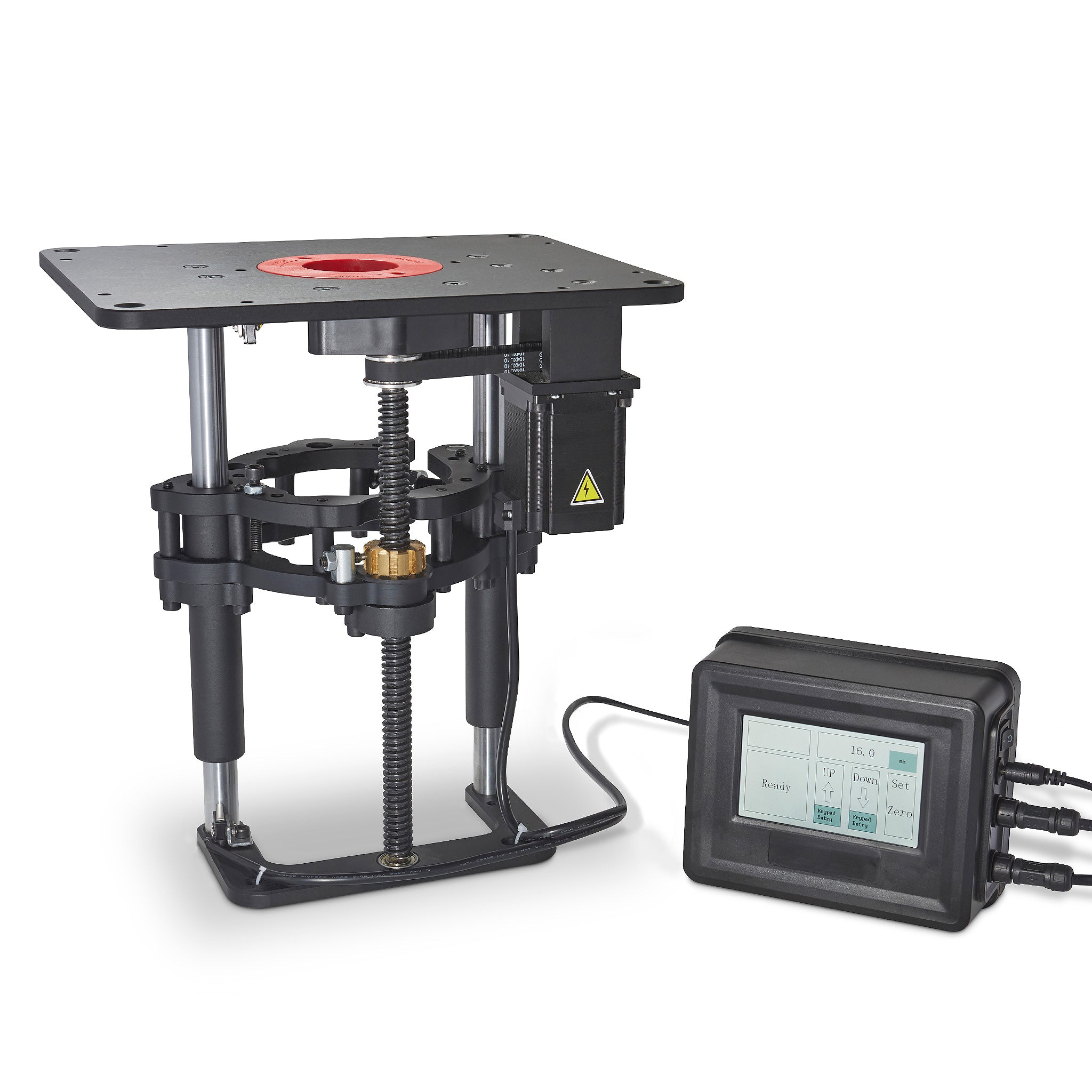

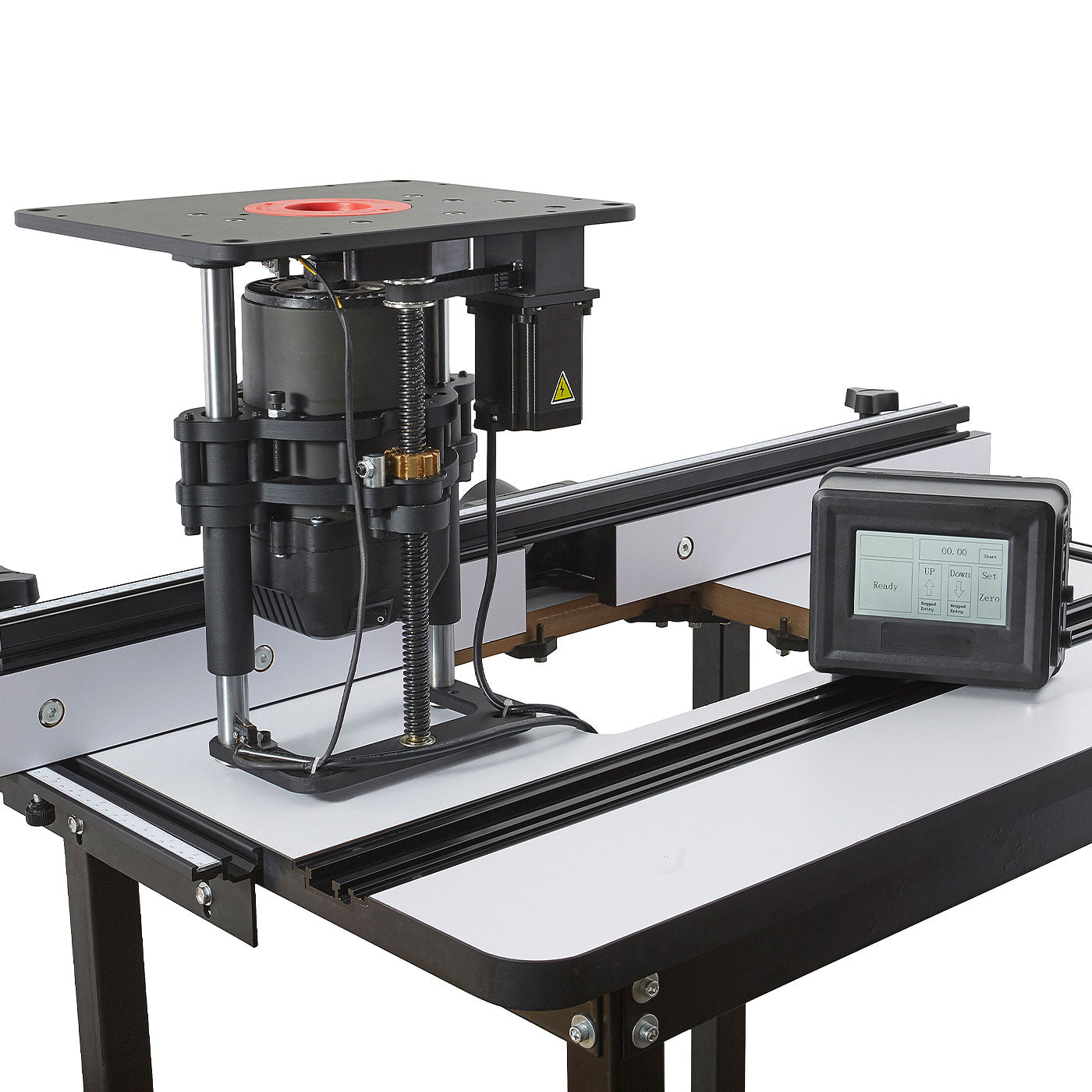

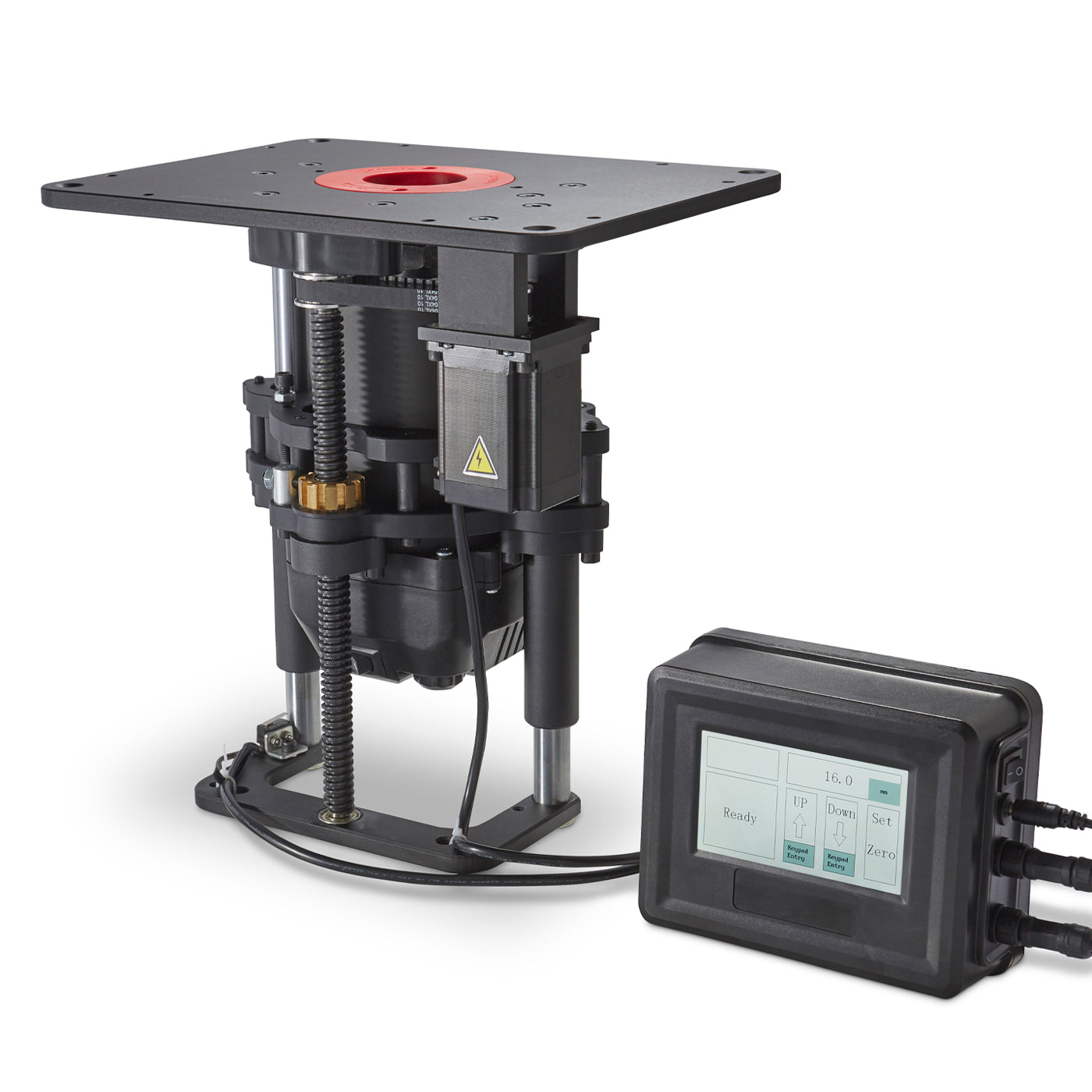

This new electronic router lift significantly reduces set up time and ensures pin point accuracy when table routing. The rise and fall of the router lift is operated by the digital control box which features an LED display. You simply press the start button on the control box and then select either metric or imperial graduations. Metric settings are displayed in 0.1mm increments and imperial settings in 0.001" increments.

There are two operating modes for the lift, the first method is to raise or lower the lift by pressing and holding the up or down button on the key pad until you reach your desired height. The second method is to raise or lower the lift by a specific increment by entering into the keypad the amount of height adjustment required. You can re-set to zero at any height by pressing the set zero height button. This is an excellent feature to ensure pin point routing accuracy down to 0.1mm increments.

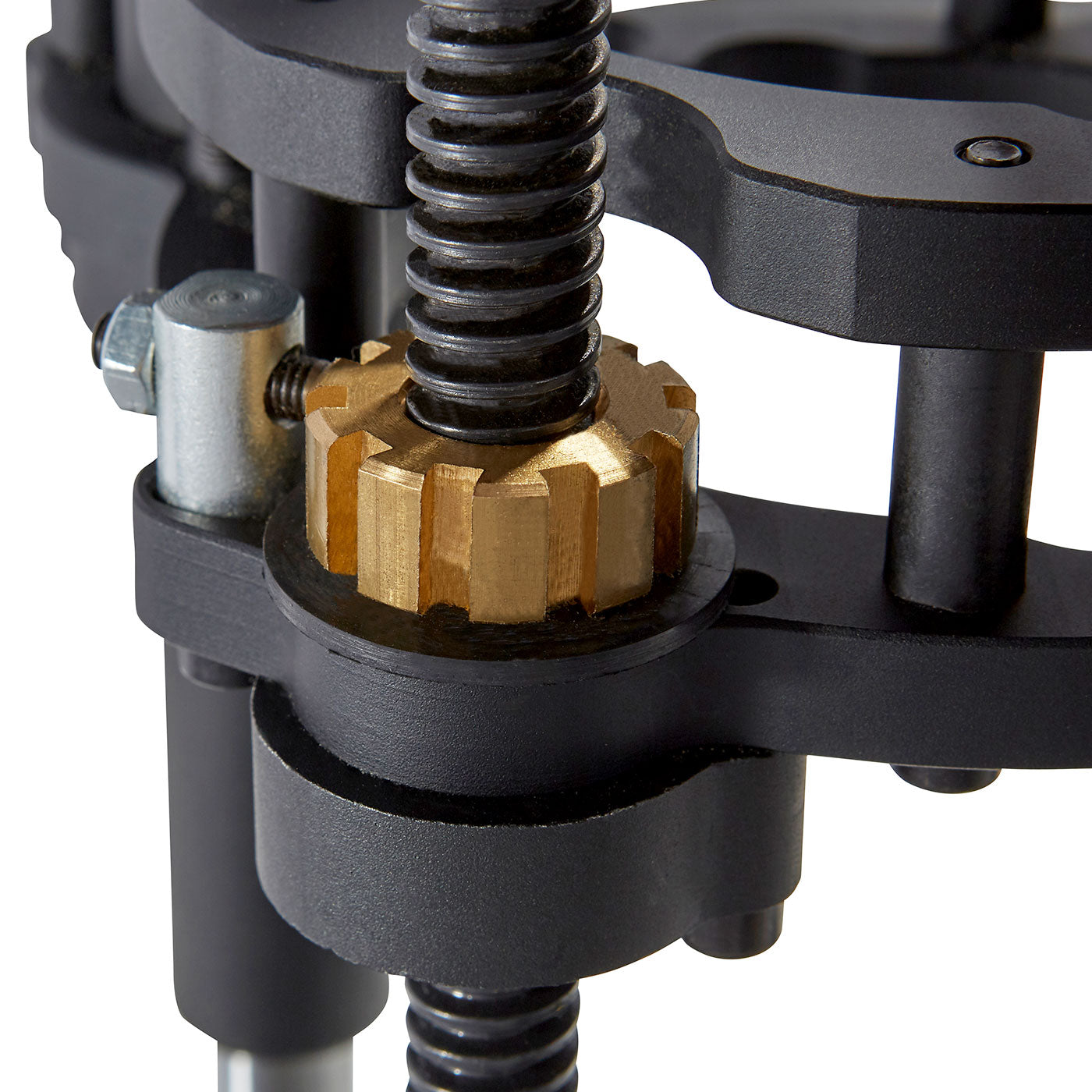

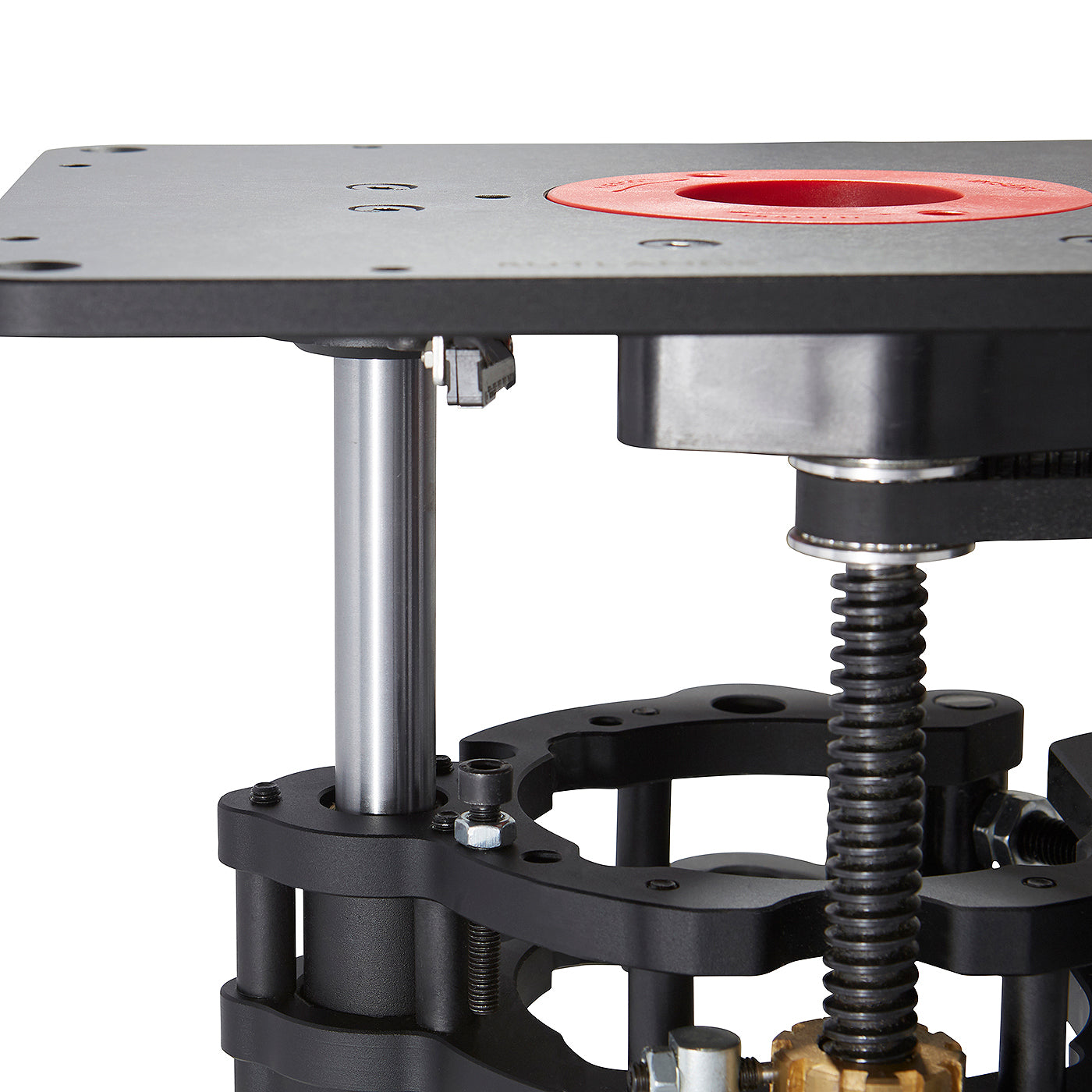

The electronic router lift has an inbuilt thread tensioning design to ensure that the router will automatically lock in position after setting the cutting height, eliminating the risk of unwanted travel during routing. The carriage and threaded arms of the lift are CNC machined and feature sealed-for-life bearings to allow for smooth, stable control of the router motor. An adjustable motor clamping bracket accepts the Rutlands® variable speed router motor and any other router motor with a body diameter between 104mm and 110mm.

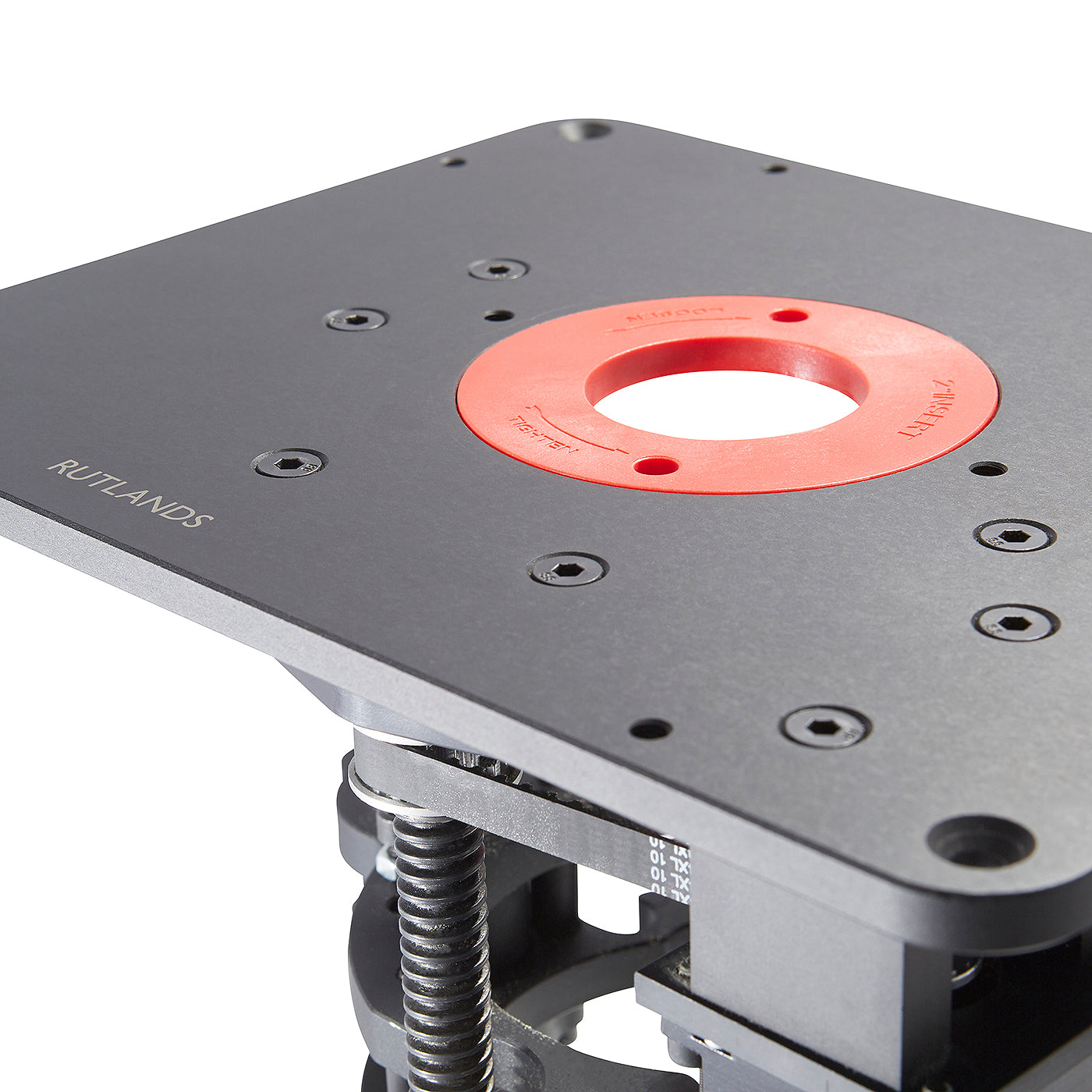

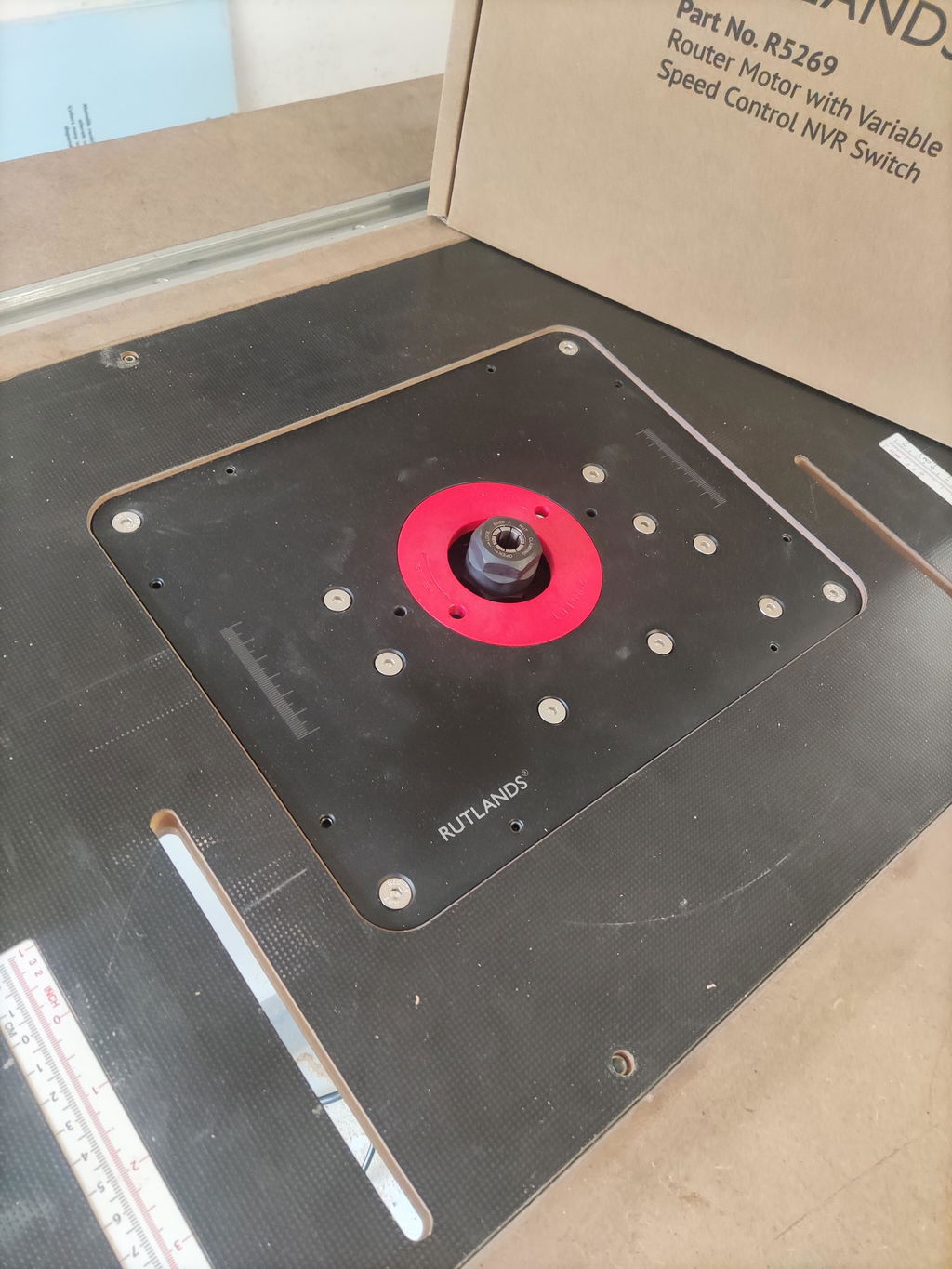

The top plate is CNC machined from 10mm thick aluminium plate and has a 100mm opening for accepting insert rings. The plate can be levelled to a table top via the 8 micro adjustment screws. Supplied with electronic router lift, digital control box, 230V cable and plug, 50mm insert ring, insert ring spanner and full operating instructions. This electronic router lift is a premium product that is extremely simple to use, will save valuable set up time and will ensure pinpoint accuracy. It is without doubt the finest electronic router lift available. ©

BrandRutlands®
Product CodeR5063
Insert Plate Size298mm x 235mm
Insert Plate MaterialAluminium
Insert Plate Thickness10mm
Overall Lift Height330mm
Insert Plate Aperture90mm
Insert Ring Aperture50mm
Digital Increments0.1mm or 0.001"
Digital DisplayMetric and Imperial
Weight9kg
Motor Carriage Diameter106mm
Router Bit Travel0mm - 75mm

UK Shipping
UK orders placed before 4pm will be delivered the next working day with shipping costing £7. Visit our Shipping page.

Outside of UK Shipping
We ship worldwide to over 200 countries. The total amount you pay includes all applicable customs duties & taxes. We guarantee no additional charges on delivery. Shipping cost and delivery time shown at checkout. Visit our Shipping page.

Click & Collect
Simply select Pick up on the checkout, and we will email you when you order is ready for collection at our distribution centre in Bakewell. Visit our Click & Collect page.

Payment
We accept all major credit cards and mobile payment methods. Visit our Payment page.

Returns
We will happily accept returns within 30 days. For more information about returns, visit our Returns page.

Game-changer for my table

This electronic lift is a game-changer for my router table. Those days of fiddling with crank handles are gone! Setting bit depth is now a breeze with the touchscreen control. The readout is precise down to 0.1mm, which is perfect for my detailed projects. Highly recommend

A very clever bit of kit

A very clever bit of kit, must admit I was grinning like a kid when I typed in the height and watched the lift send itself up. For those like me that dont want to spend time with height gauges cranking lifts and checking the height this is the answer. A joy to use, with the cost justified by the time saved.

I toyed with ordering the electronic lift for a co...

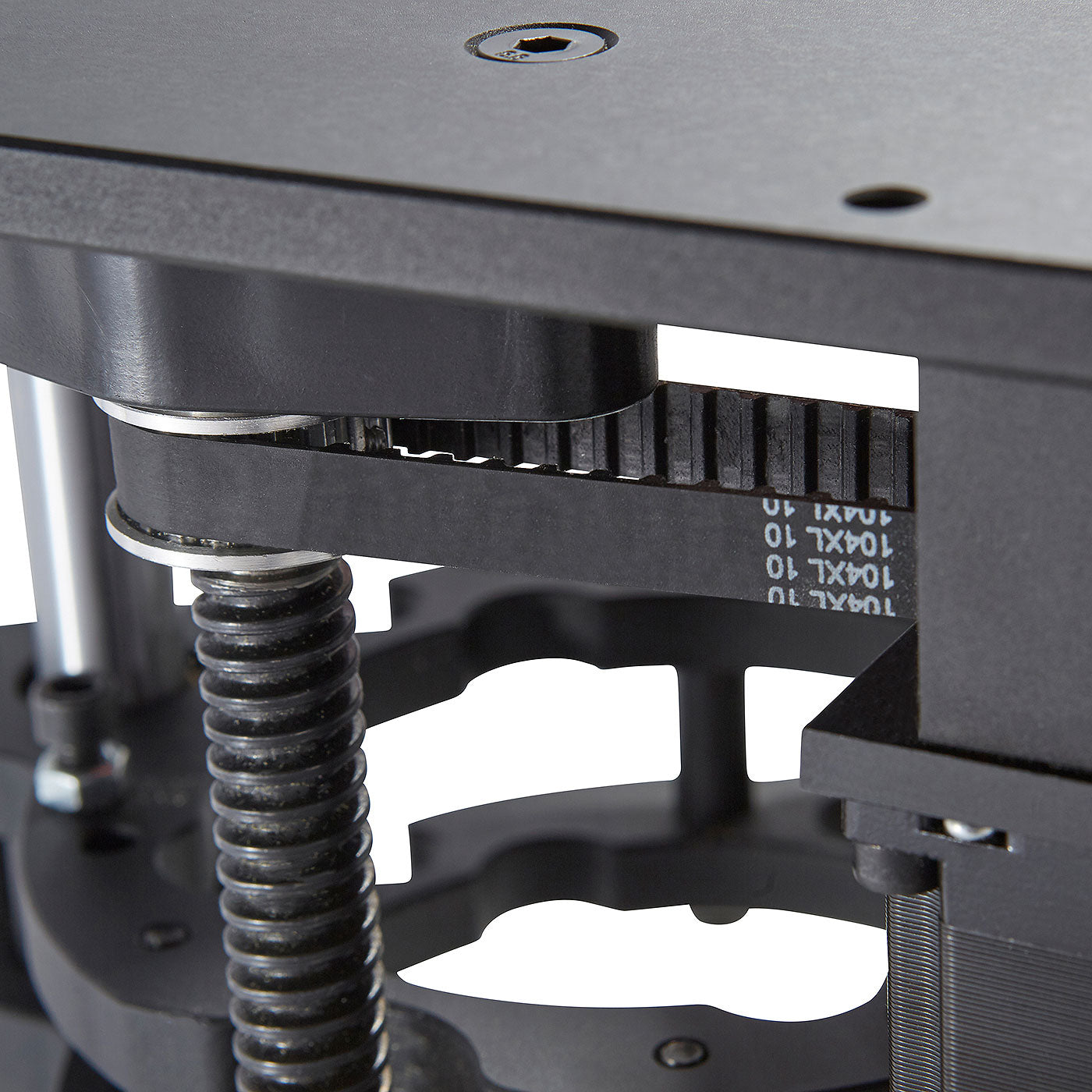

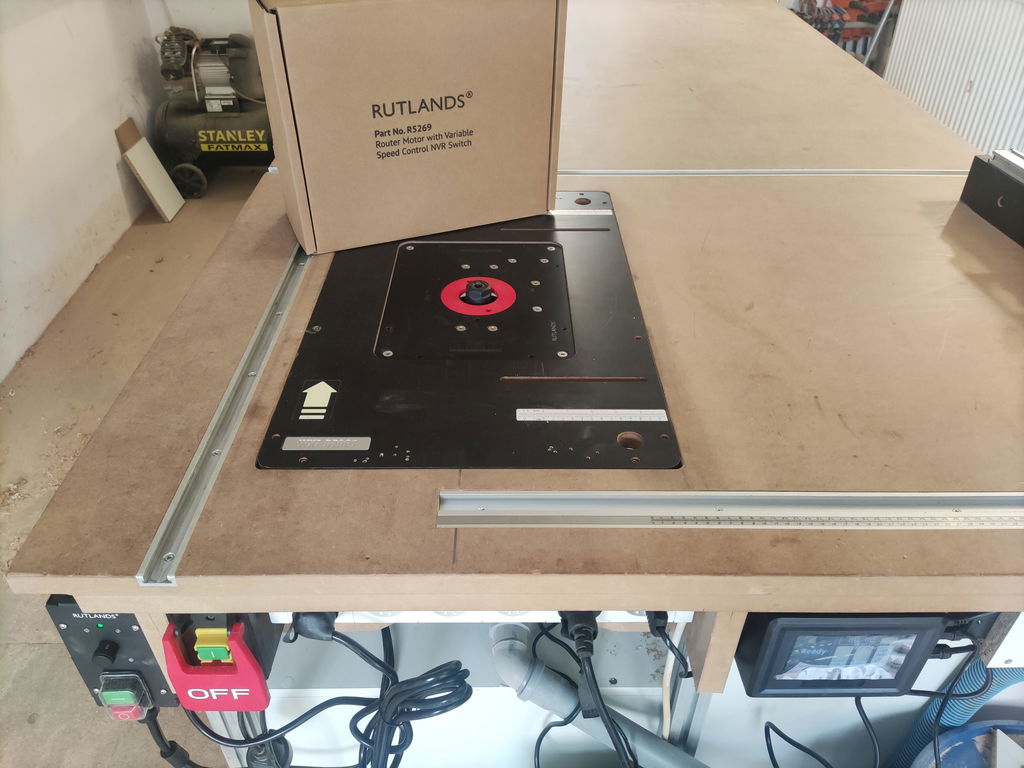

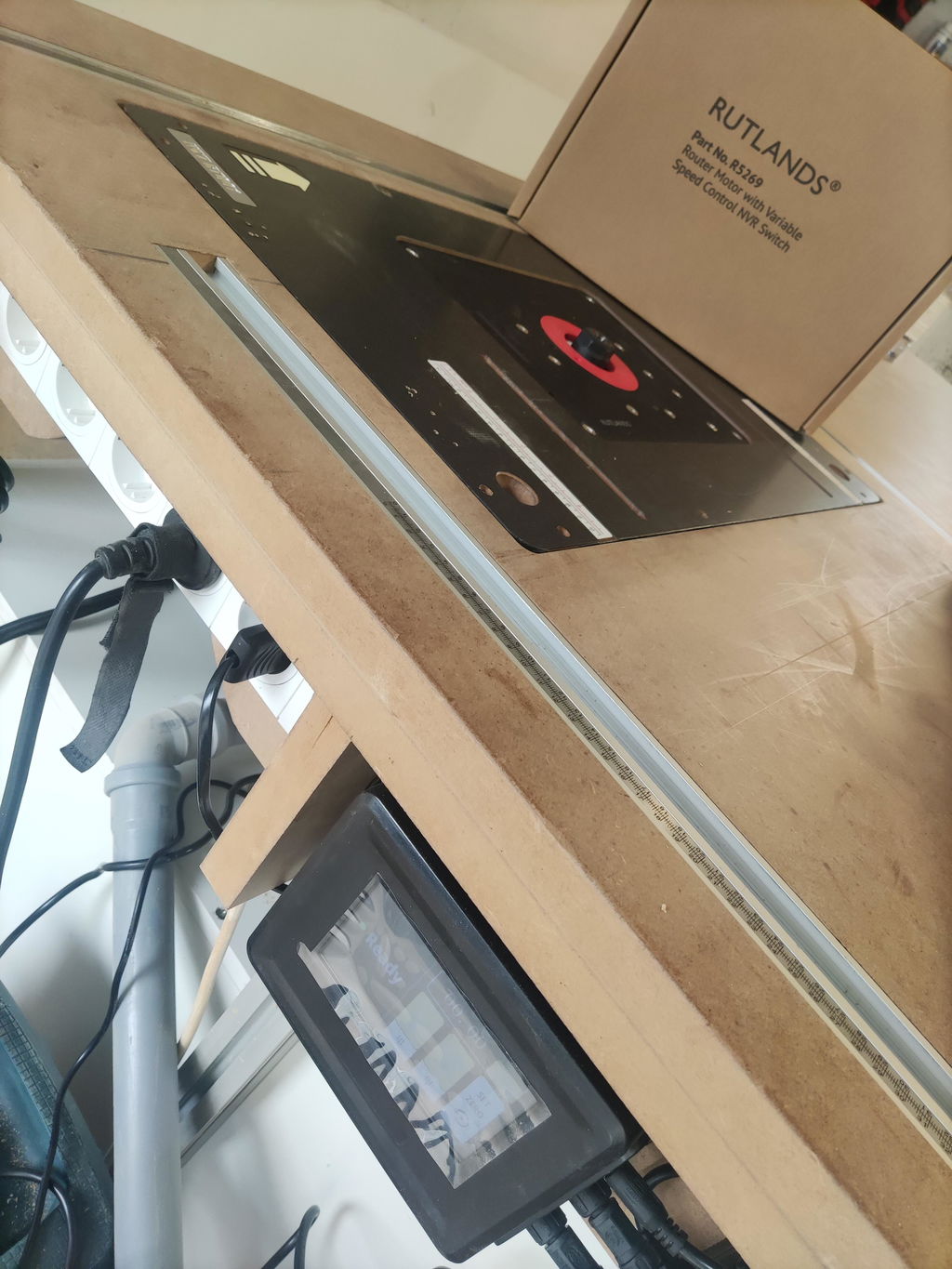

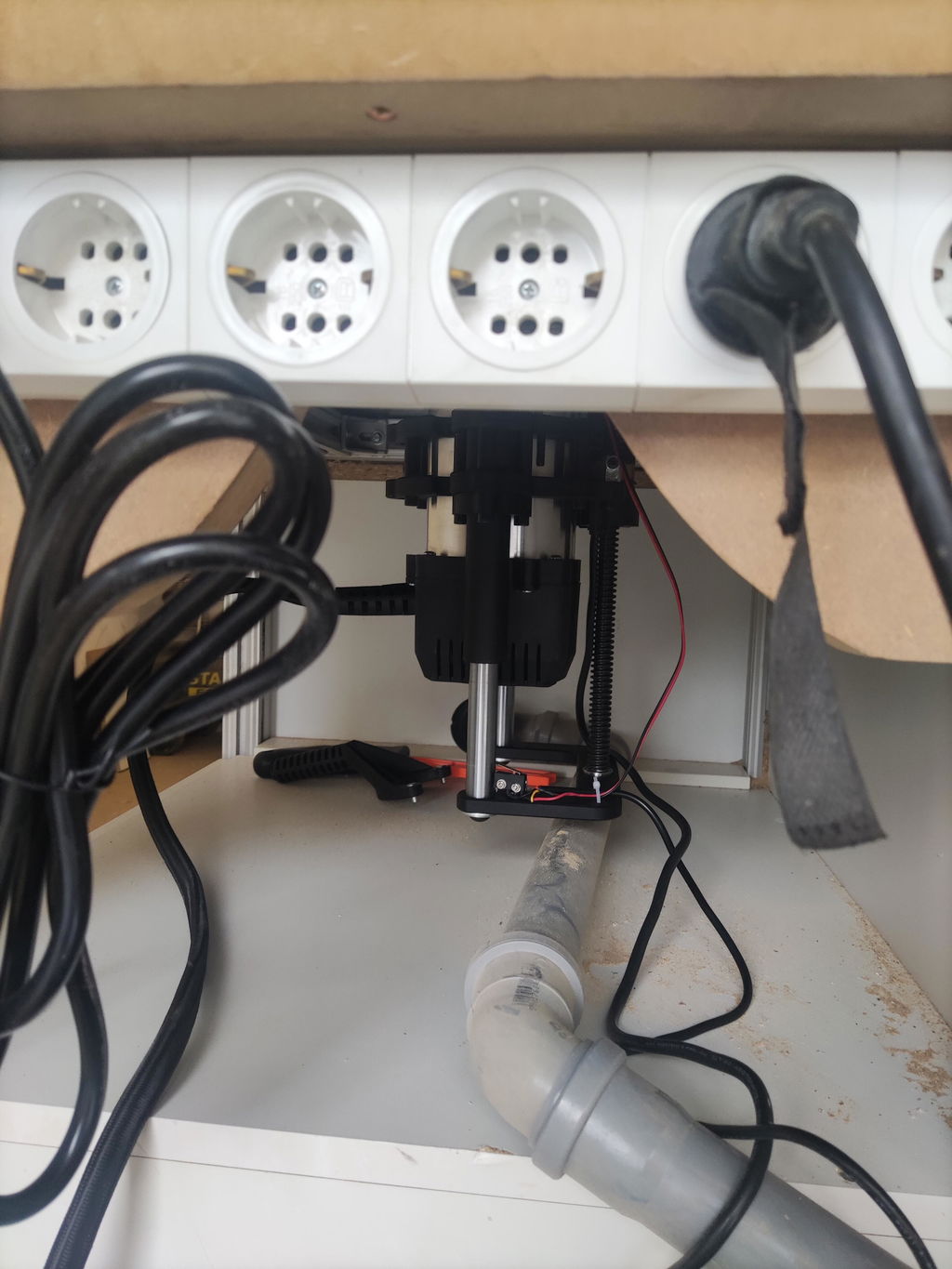

I toyed with ordering the electronic lift for a couple of days trying to justify to myself if I could warrant such a tool. I took the plunge and received delivery a couple of days ago. I have a Jessem table with router lift that you raise and lower by a side handwheel. I removed my old lift and replace it with my new electronic version. The table opening size was the same, so the fit was simple. I'm assuming that router table insert sizes are becoming standard now - at last. I attached the control box to the stand and positioned it at a slight angle so I could clearly see the keypad. I switched the control box on, pressed and held the up button and the lift smoothly raised itself with a quiet purring sound. There is a dedicated motor built into the lift that rotates via a drive belt, a nut on the main threaded spindle. As the nut rotates the carriage of the lift moves up and down. It's extremely precise and you can stop the movement instantaneously by releasing your finger form the key pad. After playing with the lift for a couple of hours to get a clear understanding of its operations I set to work on my first project. I needed to run a 12mm wide groove in tulip wood to a depth of 8.5mm. I set the control box to zero when the top of my router bit was flush with the router table and then keyed in 8.5mm to the control box. I pressed enter and the bit rose by 8.5mm. I made my first pass and then measured using a digital depth gauge the routed groove and it was precisely 8.5mm deep all the way along. I justified my purchase that very moment. An excellent piece of equipment that I will highly recommend to anyone.
