Router Table - R15 Lift and Motor with Speed Control NVR Switch

This premium performance Rutlands® router table features the R5008 router table stand, R5007 router table top, R5009 router table fence, R5075 router lift and R5269 router motor with variable speed control NVR switch.

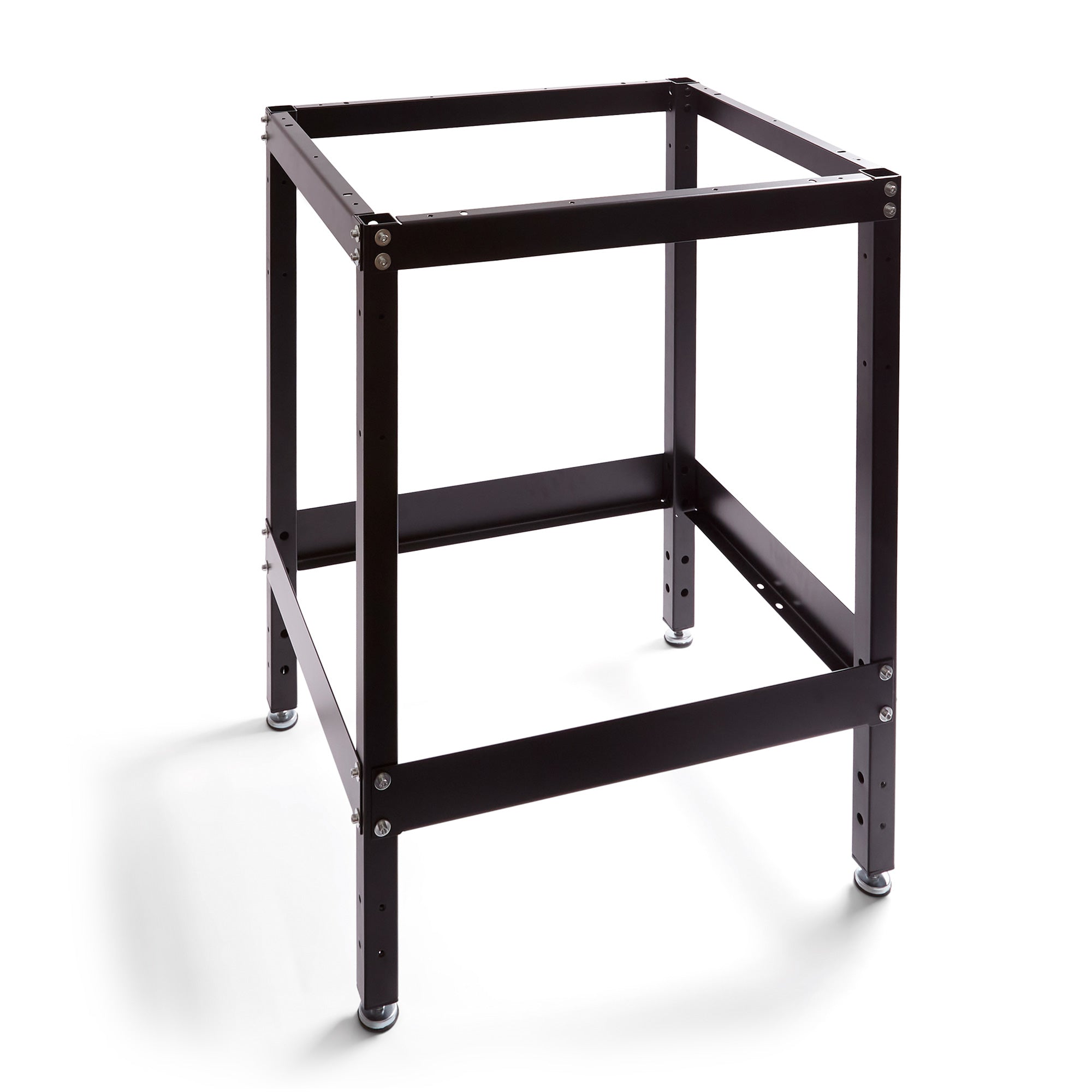

Router Table Stand
The legs and braces on this router table stand are made from 38mm wide x 2mm thick box-section steel for guaranteed strength and rigidity. The stand has been specifically designed to ensure that the legs and braces fit perfectly square to each other, via a series of pre-welded locking nuts and stainless-steel fixings. The feet have a large 45mm diameter footprint for optimum stability and have fine height adjustment when levelling on uneven workshop floors. Each foot is fitted with a heavy-duty rubber pad to offer excellent vibration dampening.

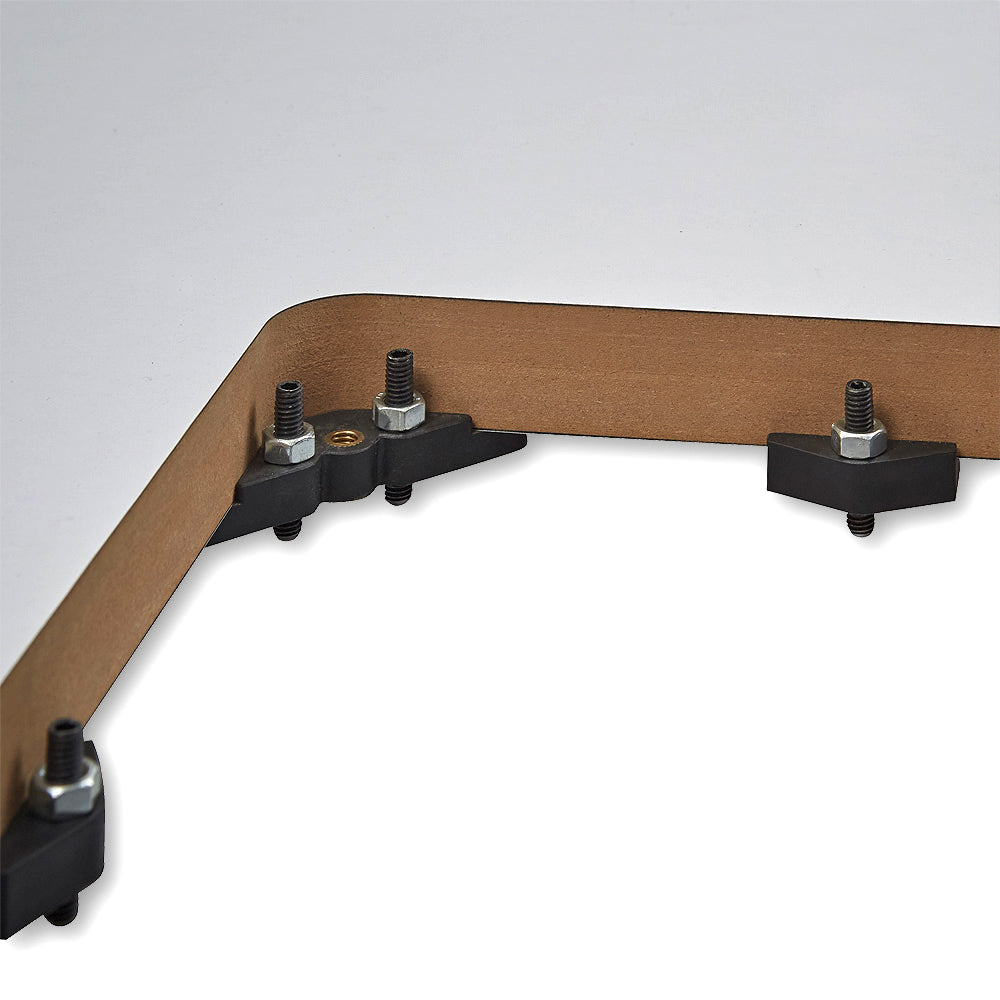

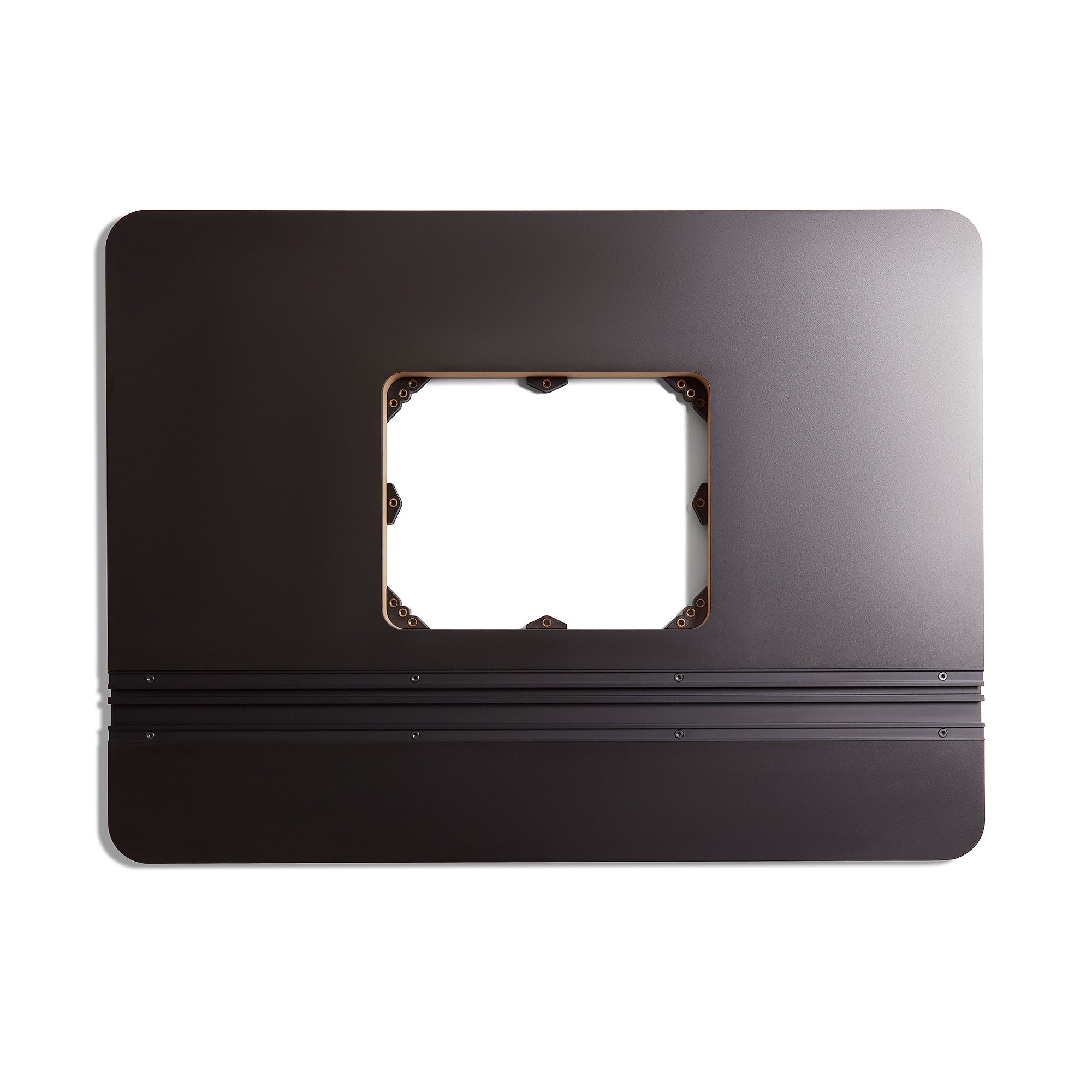

Router Table Top

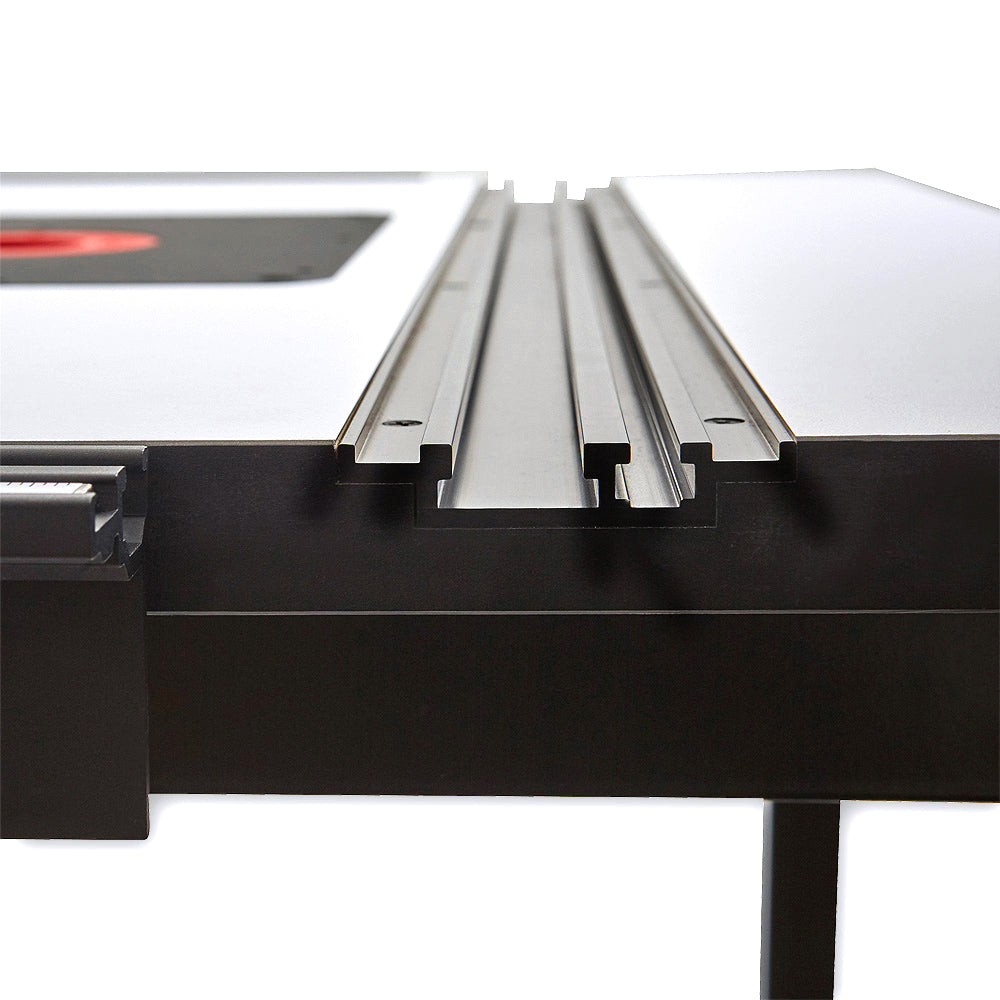

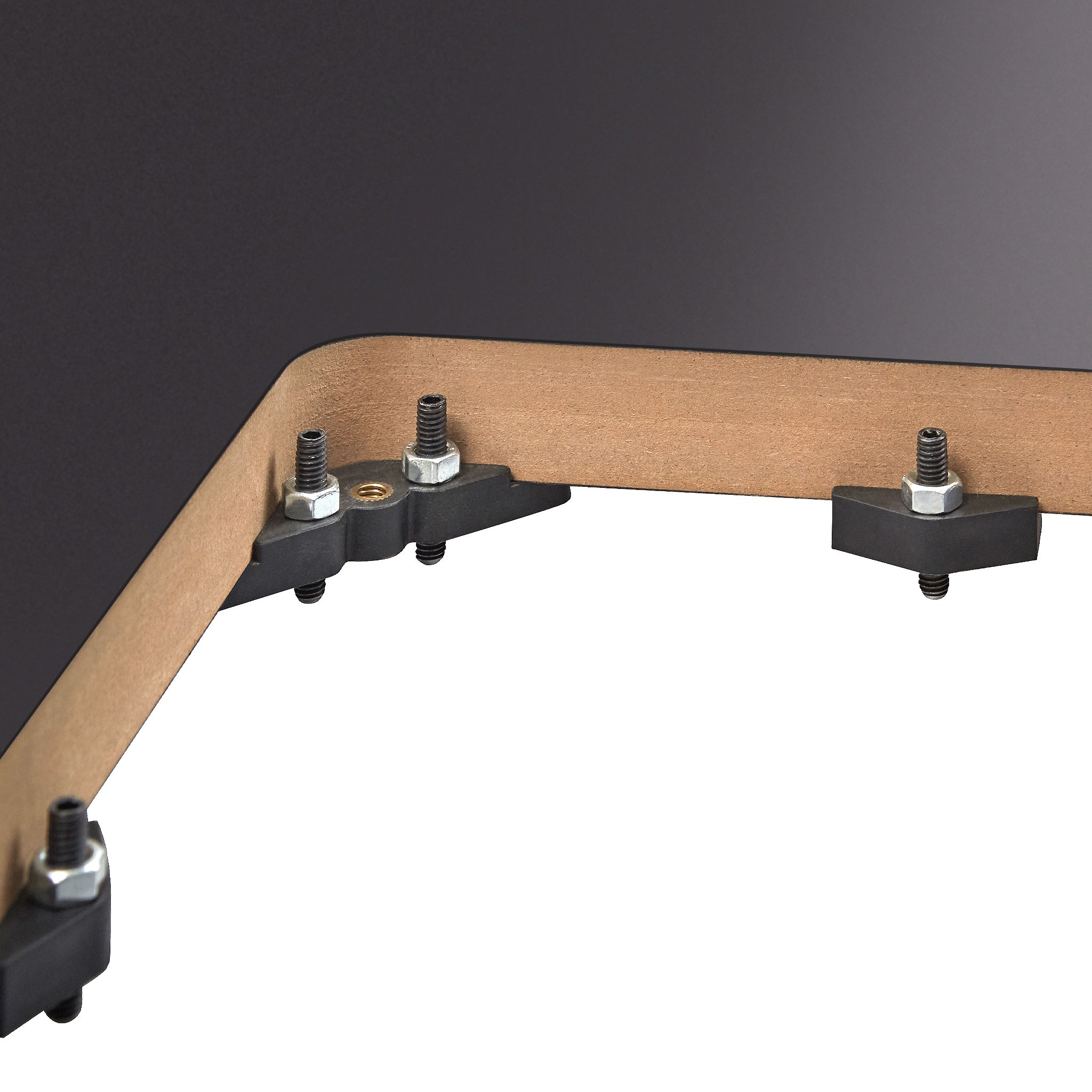

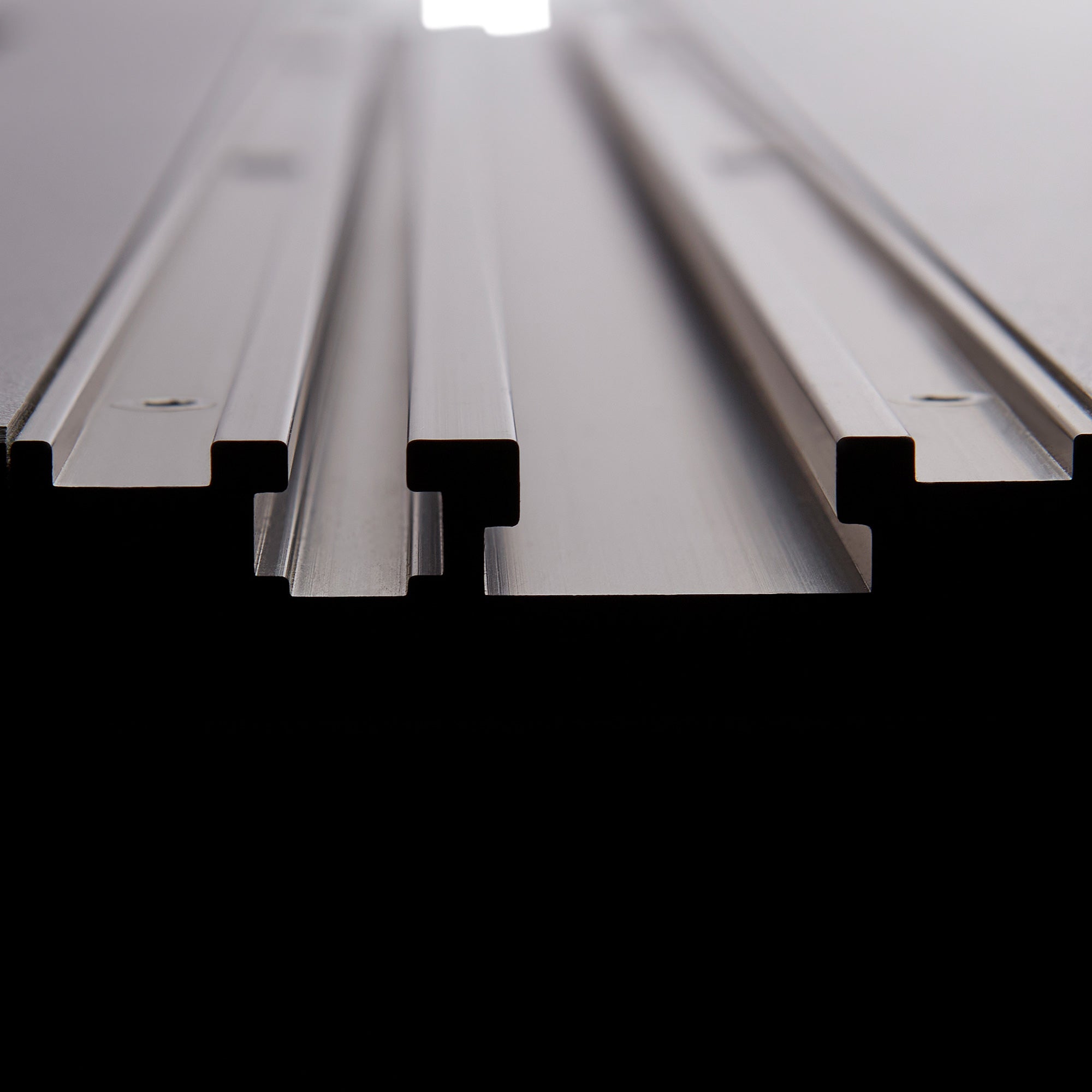

This table top is laminated on both faces with a low friction, premium-grade, phenolic which is highly wear resistant and allows the workpiece to glide smoothly through the router bit. The phenolic laminate is sandwiched around a 27mm solid moisture-resistant composite core which prevents the absorption of atmospheric moisture, eliminating the risk of warping or distortion of the table surface when working in cold or damp workshops. Set into the top is an extruded aluminium, double T track which includes a standard 19mm track for use with mitre gauges and feather boards, and a 6.3mm T slot for use with stops and homemade jigs.

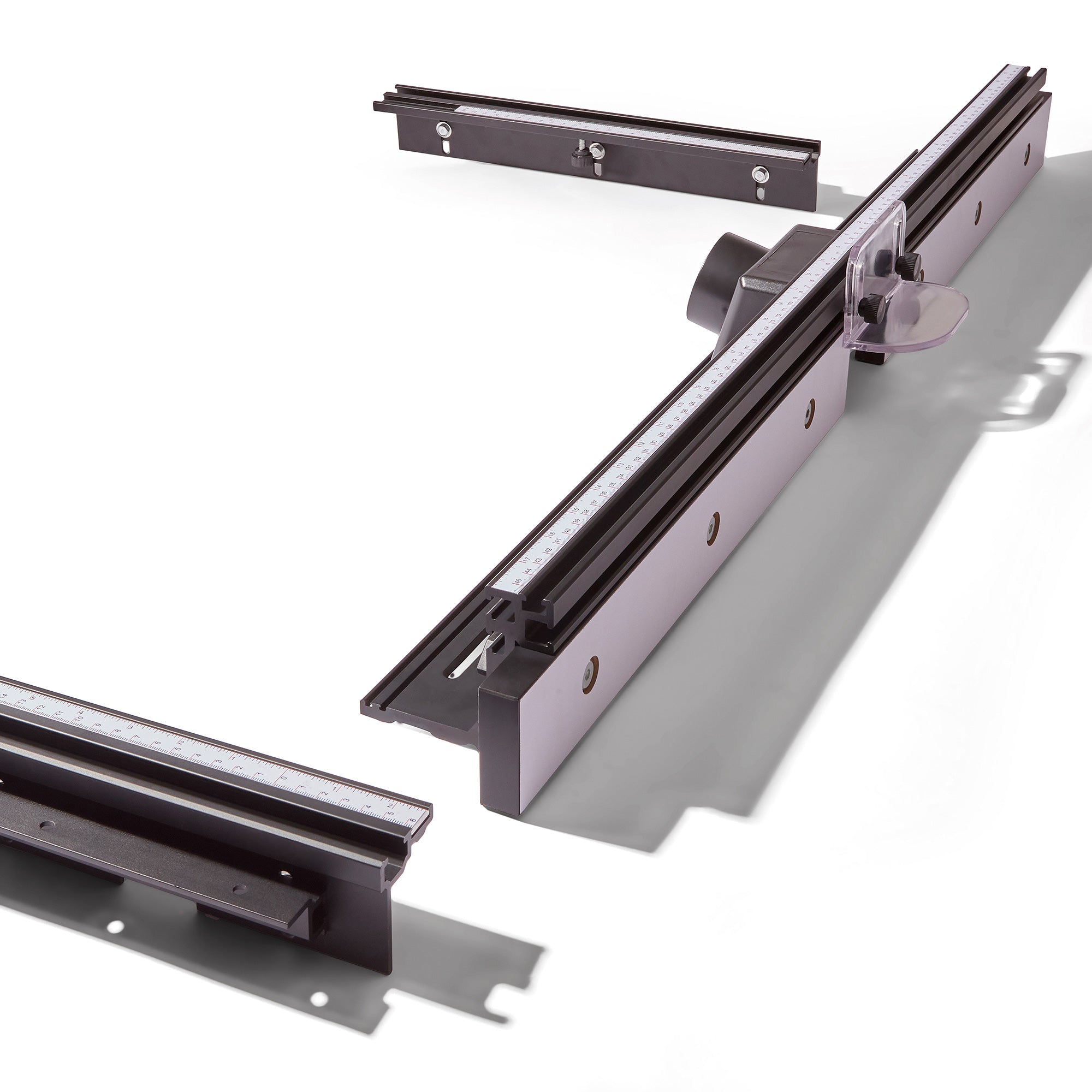

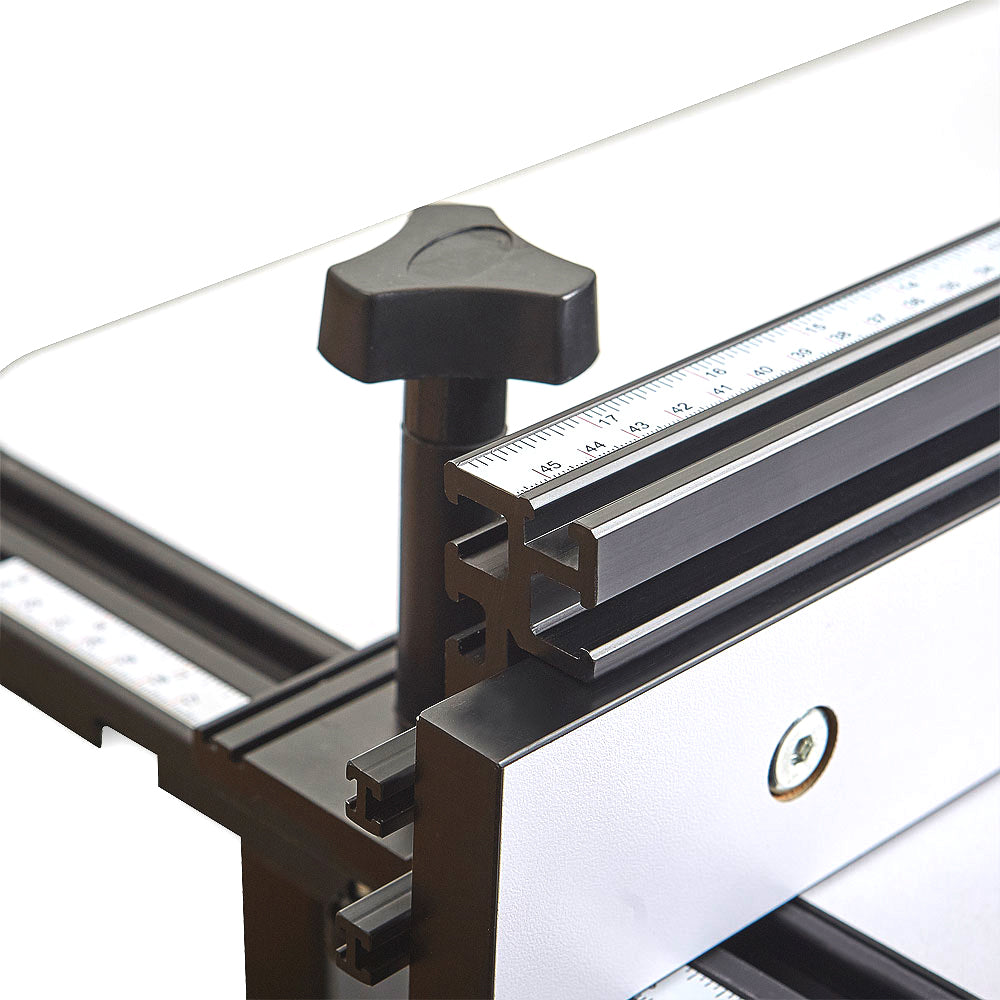

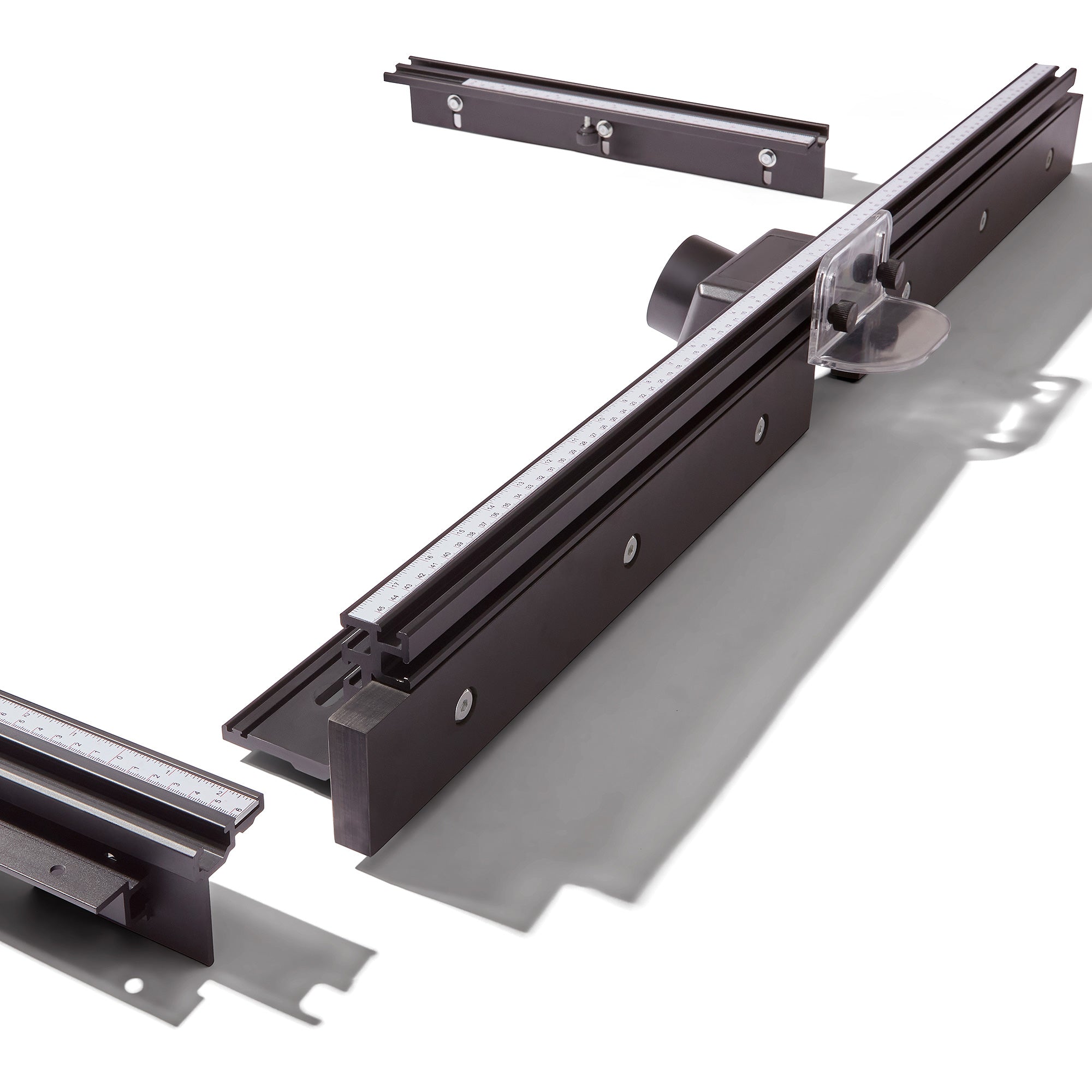

Router Table Fence

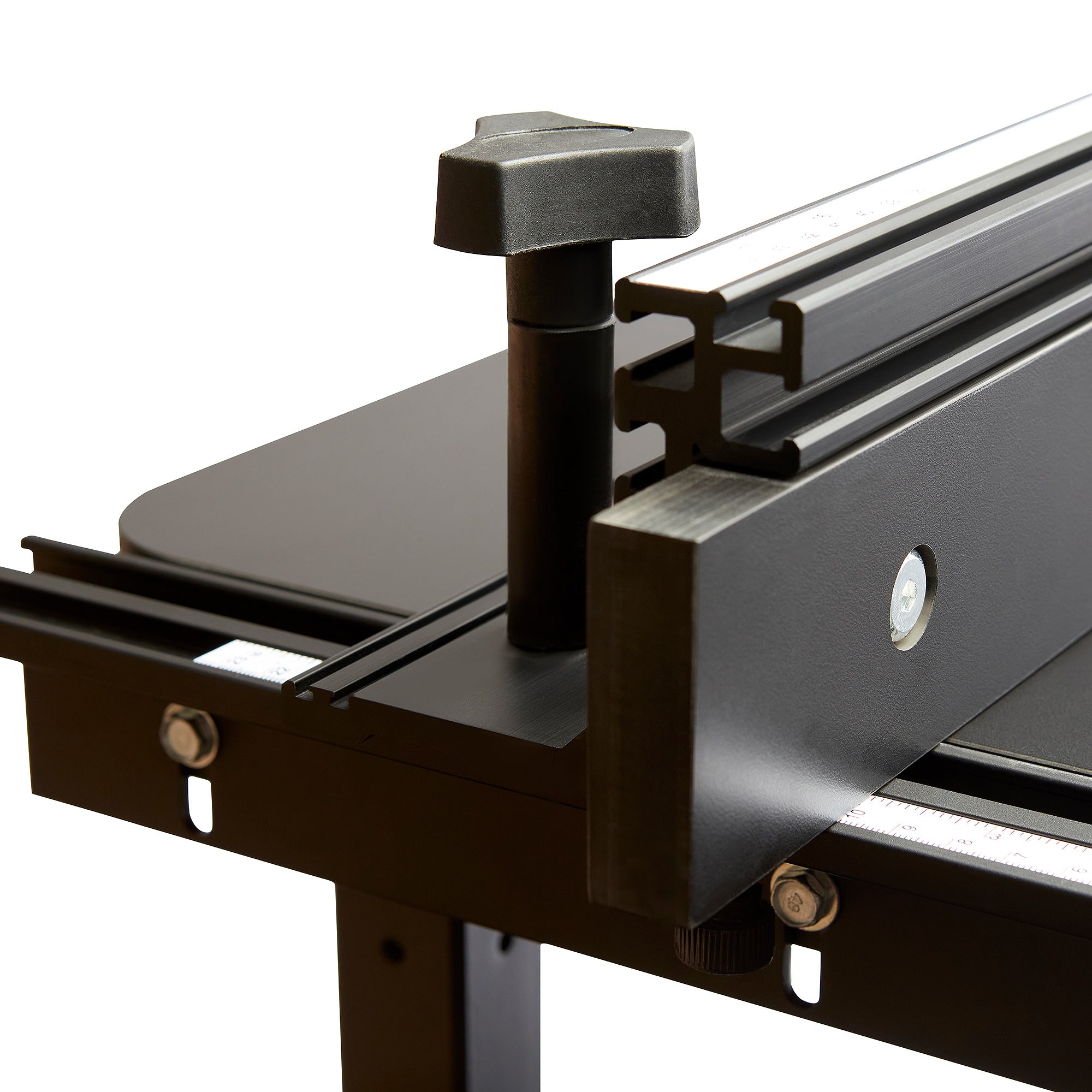

This router table fence is precision CNC machined from aircraft-grade aluminium with a black anodized finish. On the top face of the fence is a metric scale and an 8.3mm T Track for use with Rutlands® flip stops and on the front face there is another 8.3mm T Track for mounting Rutlands® feather boards and the height adjustable router bit guard. The two sub-fences are made from a solid composite with a low friction, phenolic laminate surface to ensure smooth movement of the workpiece. The fences can be adjusted, tool free, to accommodate any router bit from 10mm to 115mm in diameter and the outfeed sub-fence can be off-set to allow for edge planing. The two fence support brackets are mounted to each side of router table top, allowing the fence to be moved back and forth. An adjustable metric scale on the fence brackets allows you to precisely align, zero and set the position of the fence to the router bit.

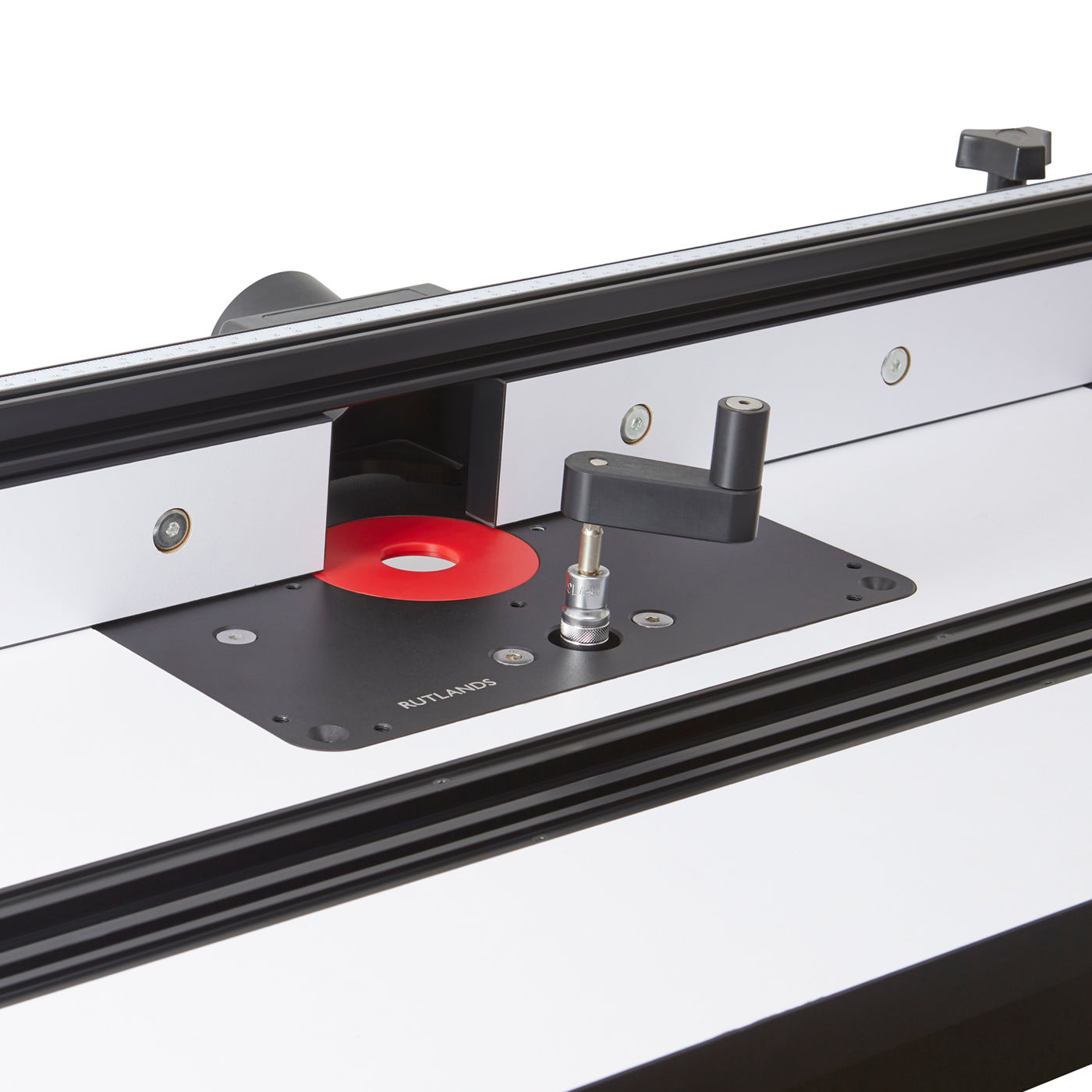

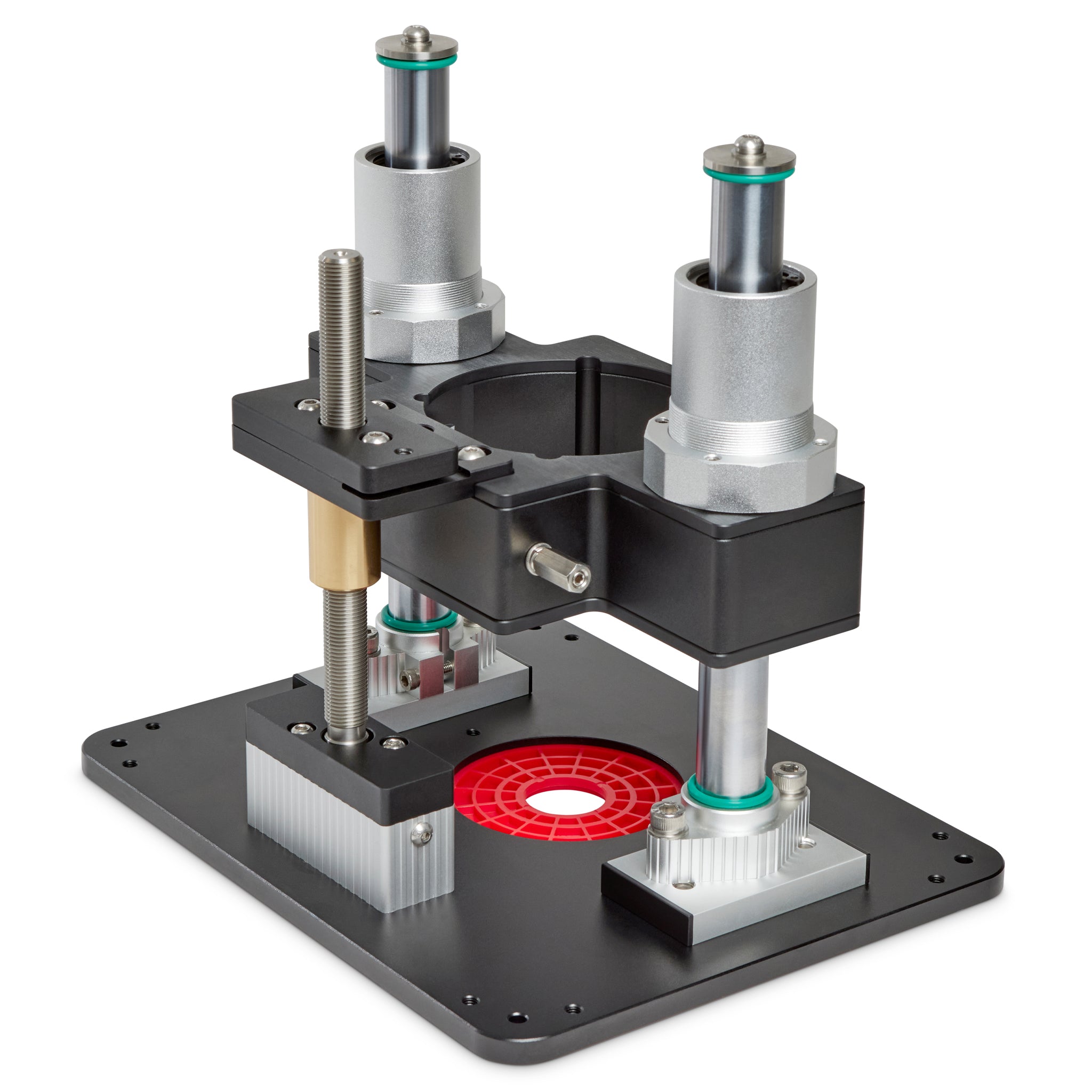

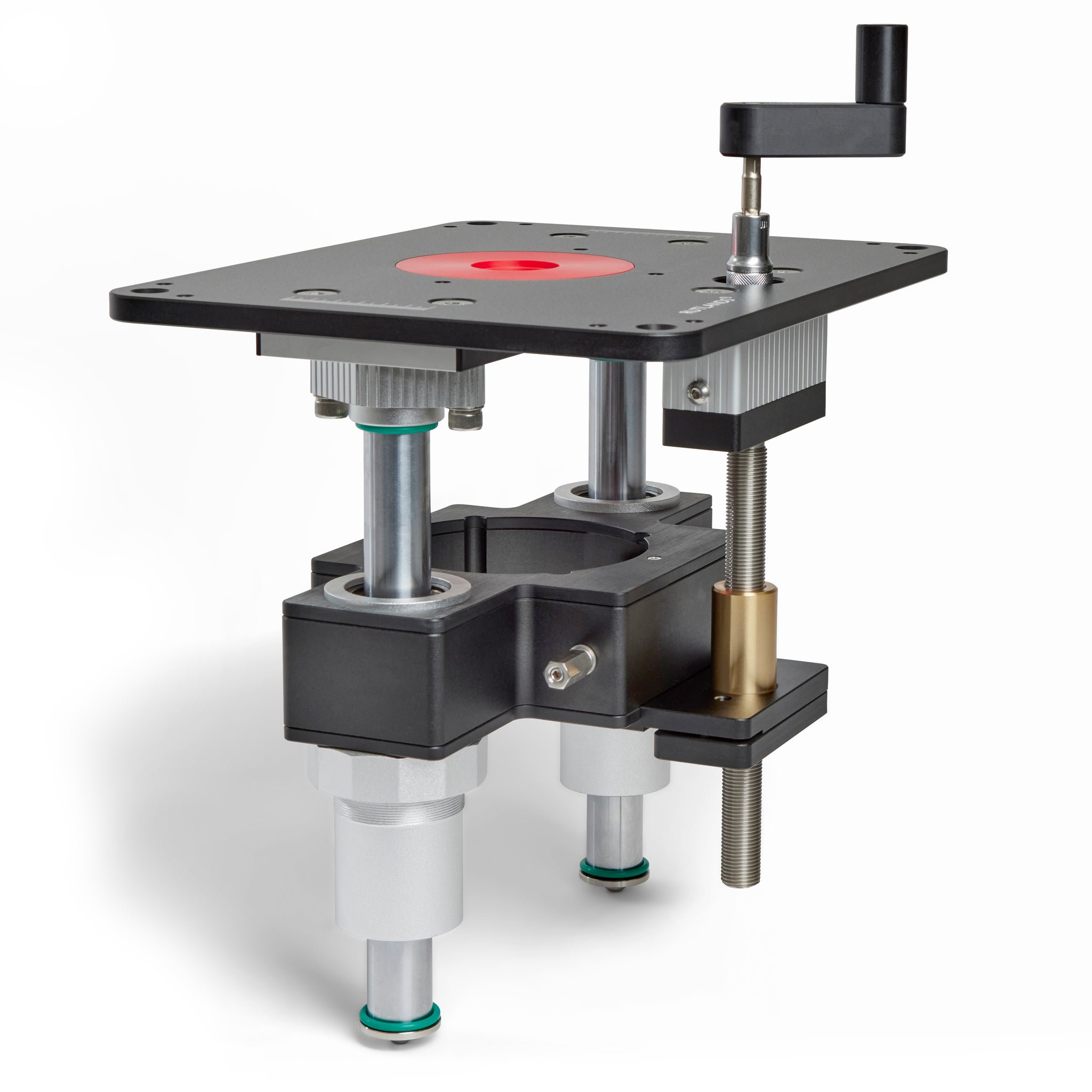

Router Lift - R15

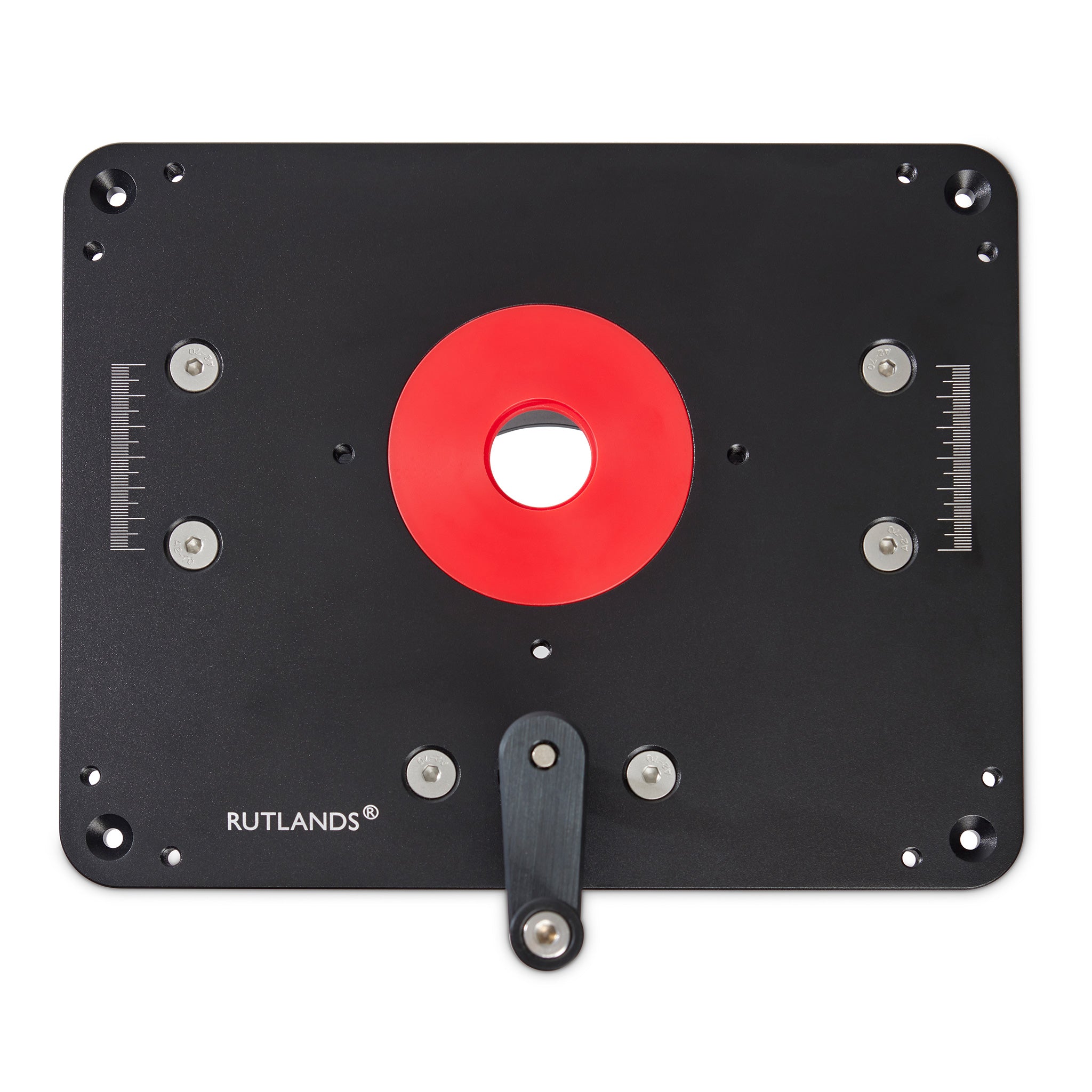

Built with premium quality materials to an exacting standard, the lift has been meticulously engineered to ensure precise, ultra smooth raising and lowering of the router bit. The height adjustment is controlled from above the table by inserting and rotating the removable crank handle, making adjustment fast, simple and extremely precise. The lift positions the router collet above the table surface when fully raised to allow for easy access and quick bit changes. The main drive spindle is precision CNC machined and features a fine pitch thread that allows you to tune-in the height of the router bit to a resolution of 0.025mm. Once the router bit is set to the cutting height, a special spindle-locking mechanism prevents the height setting from changing due to vibration. The carriage of the lift travels on two steel guide posts, that are housed within double-sealed linear bearings to resist dust infiltration resulting in an ultra smooth rise and fall movement, with no side play. To vary the size of the bit aperture the lift is supplied with three polycarbonate flush insert rings with centre holes of 10mm, 32mm and 50mm.

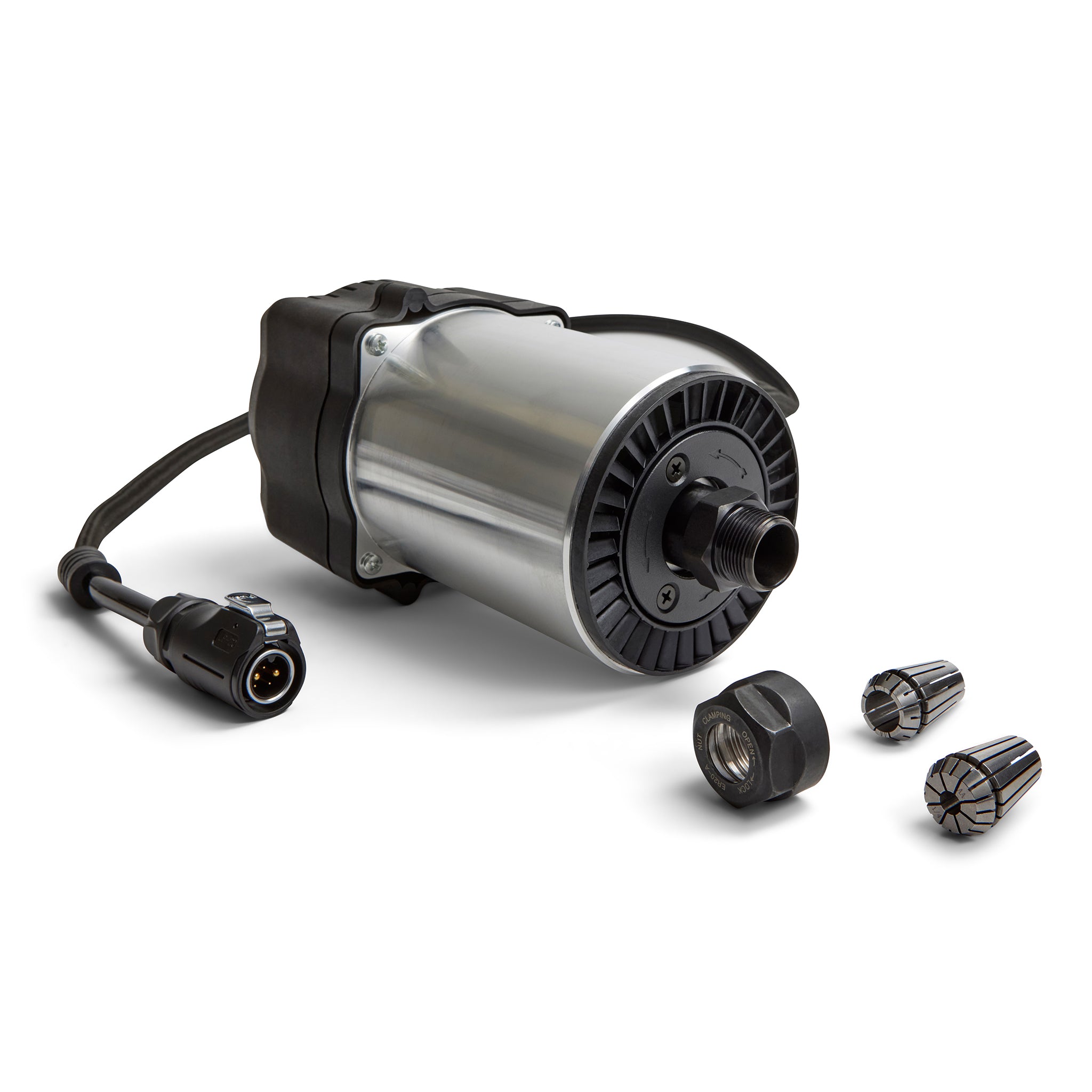

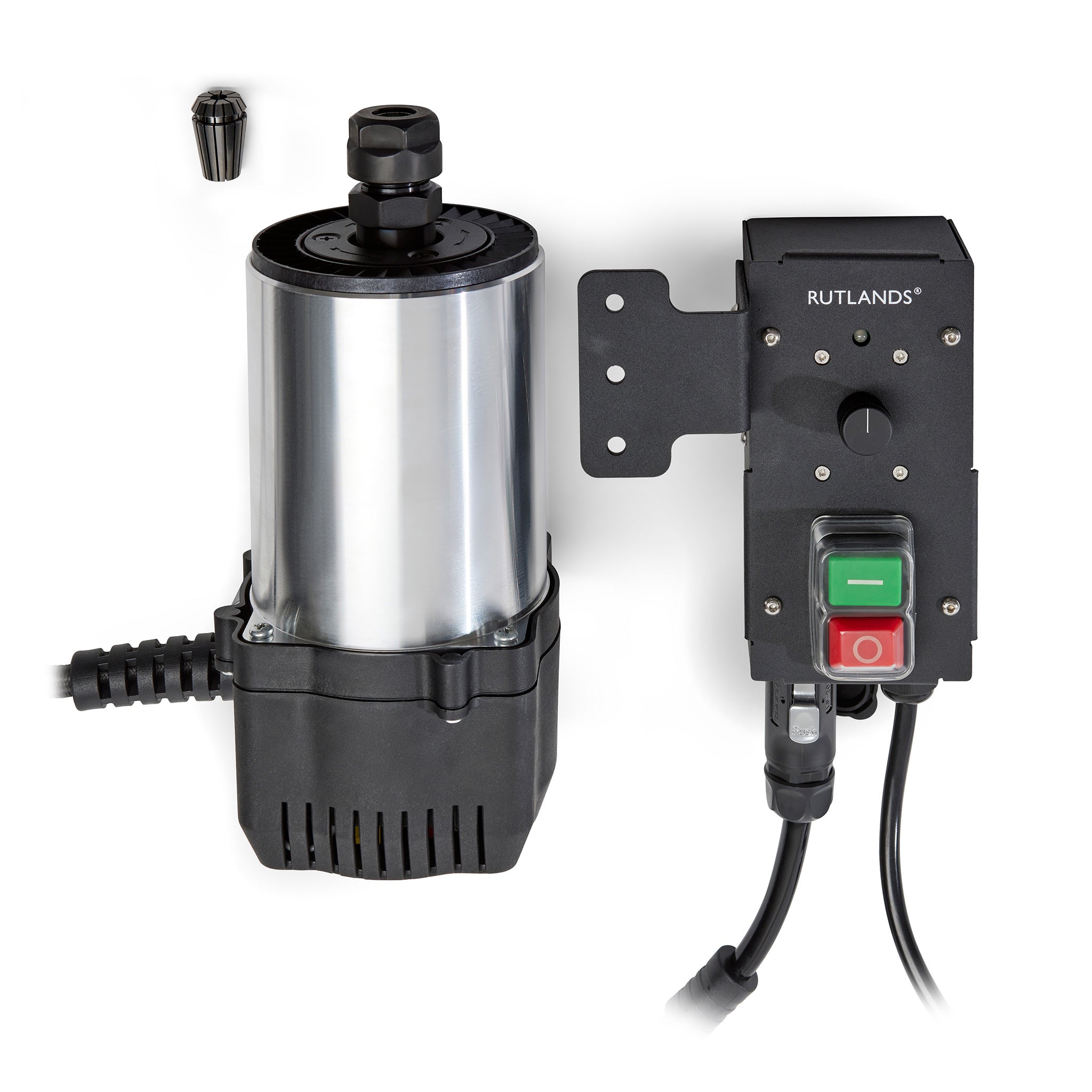

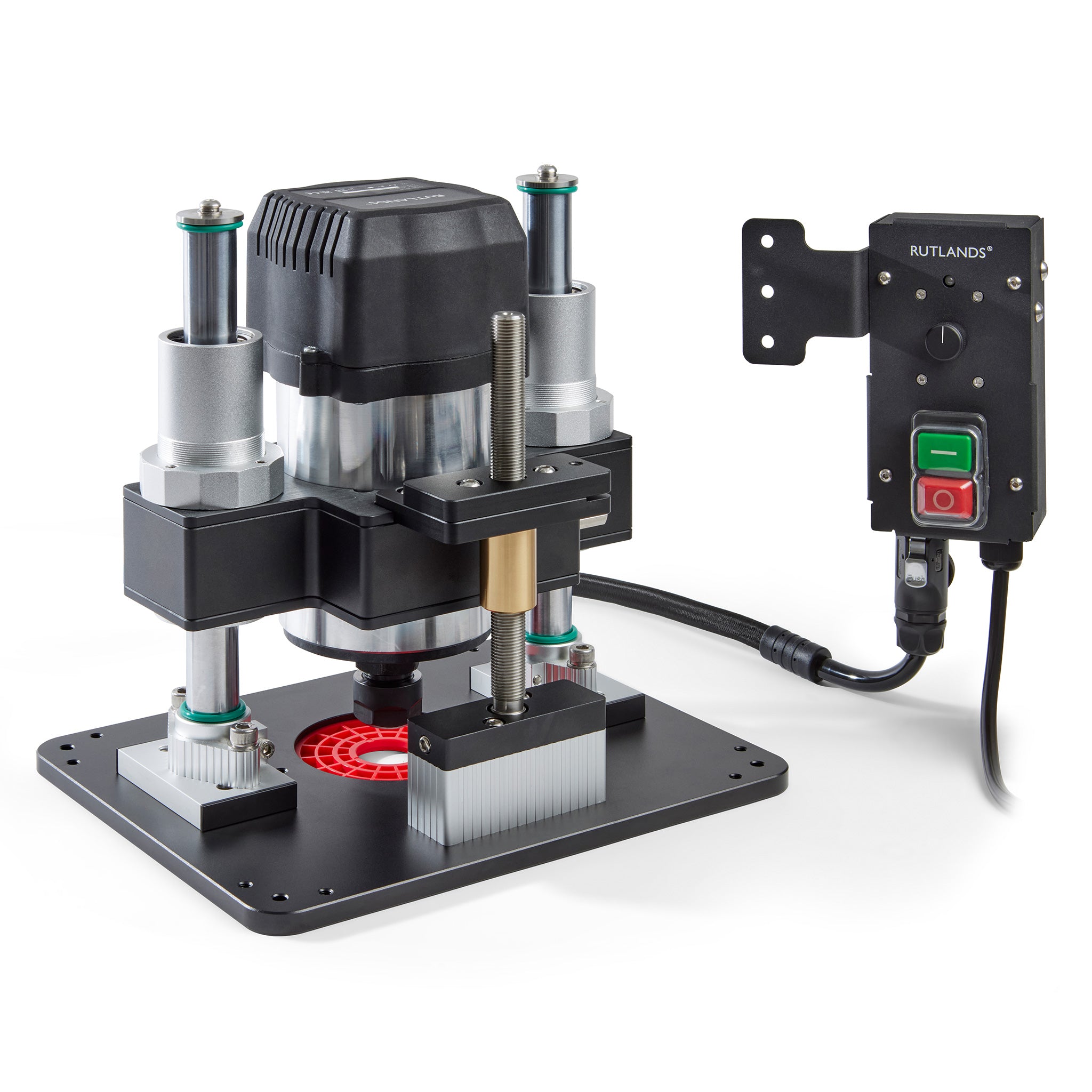

Router Motor with Variable Speed Control NVR Switch
The powerful, 2400W variable speed router motor features an intelligent torque control system, ensuring that the rotational speed remains constant and preventing the motor from slowing under load, no matter what diameter of router bit you are using or how hard the wood, resulting in a superior workpiece finish. The integrated air cool system delivers a constant flow of fresh air, preventing the motor from overheating when installed within the Rutlands® dust box or dust cabinet. The variable speed control NVR switch provides full, external control of the router motor and features both a speed control knob for fine speed adjustment between 10,000 to 21,000rpm, and a built-in NVR switch, providing a safe, convenient way to control power to the motor. For added piece of mind, in the event of a power cut the power will remain off and the router motor will not restart until you press the green 'On' button once again. With soft start technology, the router motor gradually increases the speed from zero to the desired level for a safer, more enjoyable routing experience.

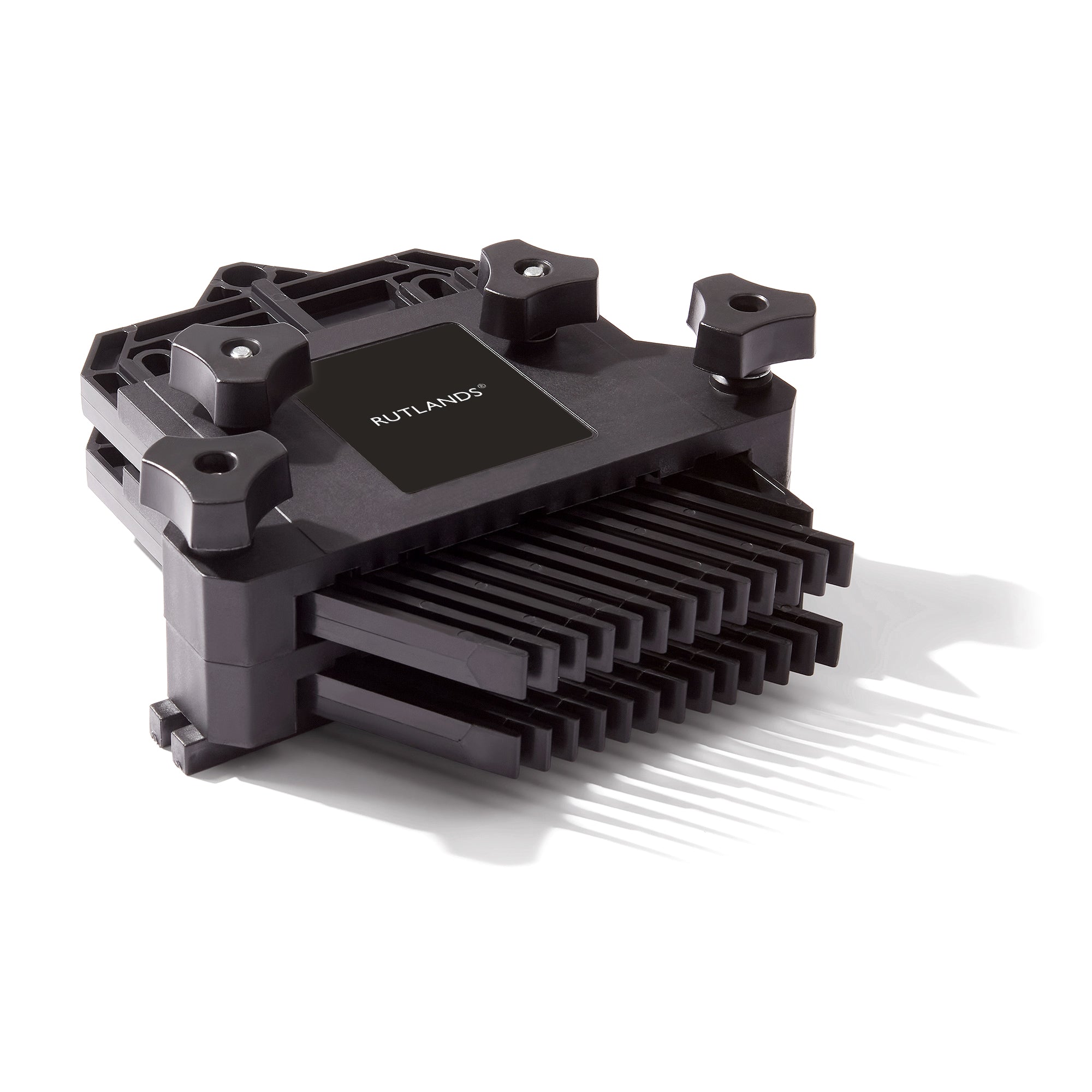

Double Feather Board

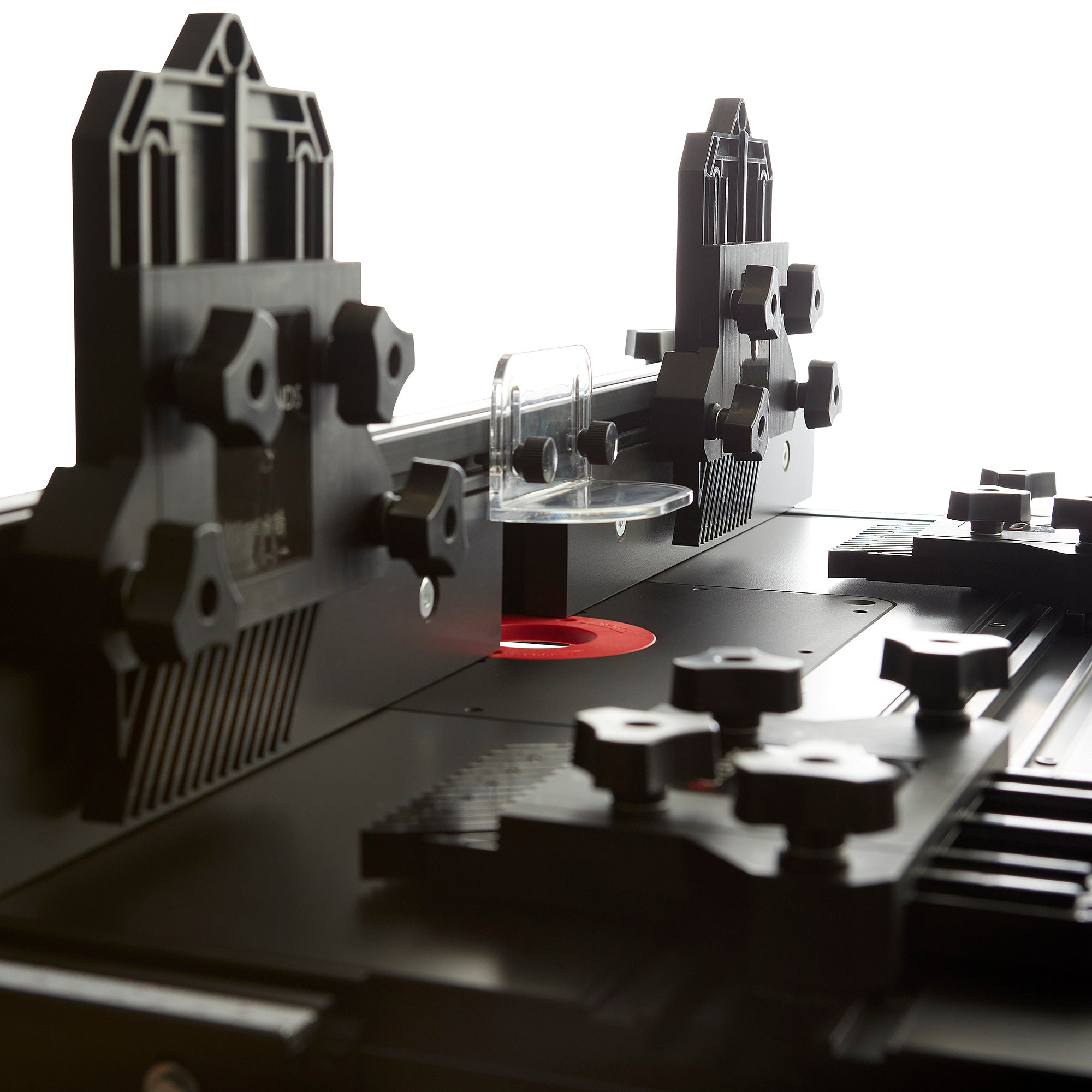

These feather boards are an essential tool and provide even, consistent pressure on your workpiece up against the fence. They allow you to apply pressure closer to the router bit, at the most critical point, without risking injury to your fingers.
